Carbon Steel API Replacement Shale Shaker Parts For Solid Control

Carbon Steel API Replacement Shale Shaker Parts For Solid Control
Carbon Steel API Replacement Shale Shaker Parts For Solid Control Carbon Steel API Replacement Shale Shaker Parts For Solid Control Carbon Steel API Replacement Shale Shaker Parts For Solid Control

Large Image :  Carbon Steel API Replacement Shale Shaker Parts For Solid Control

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API Q1, ISO 9001
Model Number: TRPS584-TH
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: In stock
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20000 Pcs / Month
Detailed Product Description
Application: Oilfield Shale Shaker Warranty: 12 Months
Package: Wooden Case Advantage: High Performance
Main Parts: Shaker Screens, Vibrating Motors, Rubber Springs, Stainless Steel Bolts, Screen Repair Plug, Wedge Block Applicable Shaker: BEM, Linear Shale Shaker
MOQ: 1 Pc Material: Carbon Steel
High Light:

API Replacement Shale Shaker Parts

,

Solid Control Shale Shaker Parts

,

Carbon Steel Shale Shaker Parts

API Standard Shale Shaker Spare Parts for Solid Control



Product Overview



Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer of various oilfield equipments and solid control equipment since 2010, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.

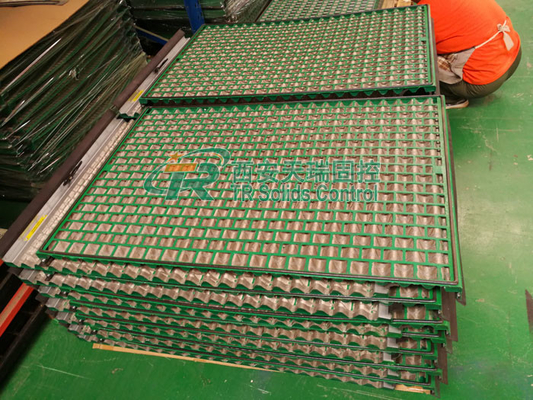

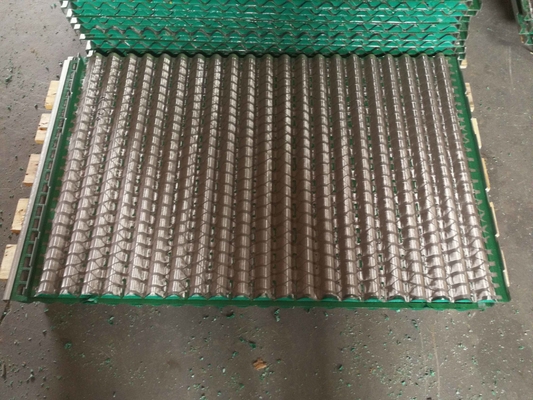

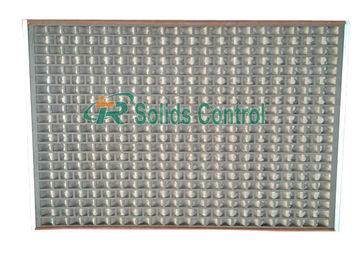

We provide shale shaker parts for our clients. Shale shaker parts mainly contains : shaker screens, vibrating motors, rubber springs, stainless steel bolts, screen repair plug, wedge block and so on.

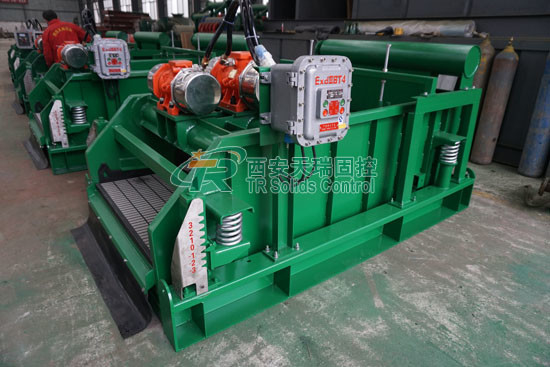

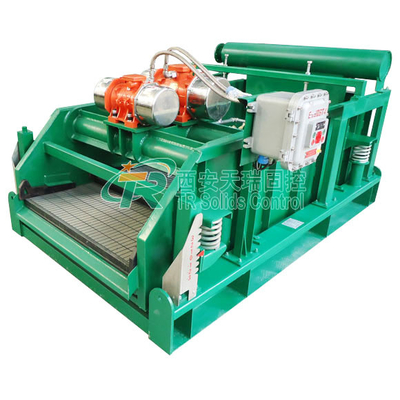

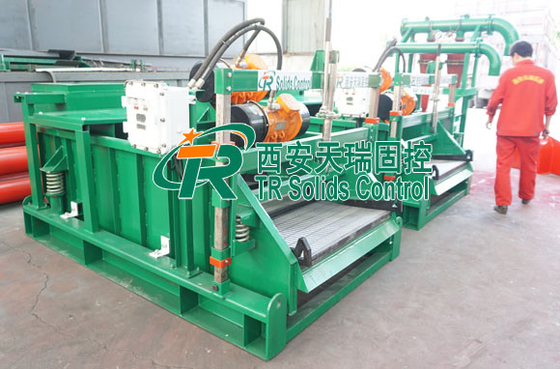

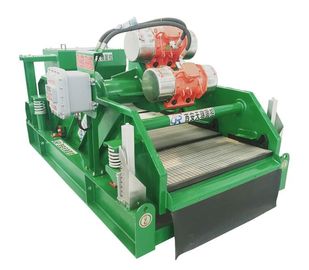

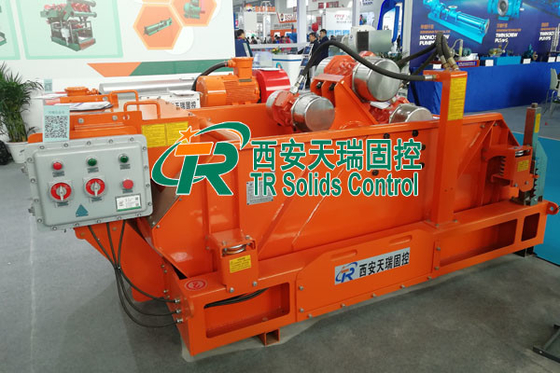

Main Features of Our Drilling Shale Shaker

  1. Martin or OLI vibration motor.
  2. Overall heat treatment, long time work.
  3. Hopper type feed mode reduces feed speed.
  4. Vibration strength is 7.5G, adjustable.
  5. Screen box angle is mechanical and adjustable.
  6. Schneider or Siemens electrical components.
  7. Wedge-type compaction device facilitates fast replacement of screen.

Technical Sheet of Drilling Shale Shaker



Model TRPS703 TRPS585-4 TRZS703 TRZS585
Vibration Motion Balanced Elliptical Motion Linear Motion
Treatment Capacity 130m³/h 140m³/h 120m³/h 130m³/h
Motor Power 1.94+1.0kw 1.94+1.0kw 1.5KW×2 1.72KW×2
Screen Specs. (700×1250mm)×3 (585×1165mm)×4 (700×1250mm)×3 (585×1165mm)×4
Screen Area 2.6m² 2.7m² 2.6m² 2.7m²
Vibration Strength ≤7.1G ≤7.1G ≤7.1G ≤7.1G
Double Amplitude 7mm 7mm 6mm 6mm
Deck Adjustment -1°~+5° -1°~+5° -1°~+5° -1°~+5°
Ex Standard ExdIIBt4 / IECEX / A-TEX
Weight 1630kg 1618kg 1620kg 1600kg
Dimension 2770×1785×1690mm 2966×1600×1280mm 2770×1785×1690mm 2966×1600×1280mm
Remark Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3.



Carbon Steel API Replacement Shale Shaker Parts For Solid Control 0



Xi'an TianRui Petroleum Machinery Equipment Company Limited is an ISO-9001, ISO-14001, OHSAS-18001 certified company and has all the quality systems in place for design, planning, manufacturing and quality monitoring & traceability to ensure that our products match the highest quality & reliability Standards similar to any International major in this field.



Taking quality as the life of company, be targeted at "sincere cooperation, win-win", we would like to be the connection between the world and China, and supply the best "one-stop" service for the customer from all over the world. We sincerely hope to cooperate with all friends both in China and abroad to create brilliant achievements in the future.



FAQ:
1)Why choose us?
We can provide you best quality with reasonable price.
2)How can I know the material is correct and acceptable?
Material certificate (inspection certificate) is available on Request.
3)I cannot find the products I want on your site. Are you able to help me to locate it?
Yes, we will try our best to give you the product you want.
4) What products you are specialized in?
We are specialized in all kinds of tubing protectors.
