| Model: | TRNJQ80-3 | Diameter: | 80mm |
|---|---|---|---|
| Working Pressure: | ≤6.4MPa | Nozzle No.: | 1/3e |

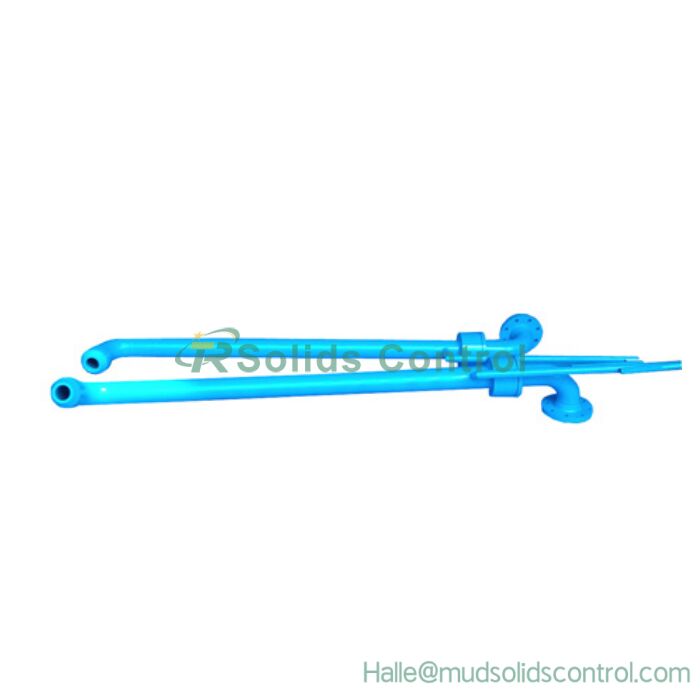

The TR Mud Gun is a high-pressure hydraulic mixing unit designed to eliminate dead zones inside mud tanks and support continuous circulation within modern Solids control equipment systems. By directing a powerful jet of drilling fluid into low-flow areas, the mud gun prevents solids settlement and helps maintain uniform mud properties essential for stable solids control equipment performance.
Installed as an auxiliary unit within Solids control equipment, the mud gun works in coordination with mud agitators to improve internal tank flow patterns. Its focused hydraulic action is especially effective in corners and bottom sections where mechanical mixing alone cannot reach, enhancing the overall reliability of the solids control equipment system.
✔ Dedicated Support for Solids Control Equipment
Enhances circulation efficiency and prevents solids buildup, protecting downstream solids control equipment.
✔ High-Velocity Jet Performance
Creates strong directional flow to re-suspend settled solids and maintain consistent mud density throughout the solids control equipment tanks.
✔ Heavy-Duty Wear-Resistant Construction
Manufactured from high-strength steel or alloy materials to withstand abrasive drilling fluids common in solids control equipment operations.
✔ Adjustable Operation Options
Available with fixed or rotating configurations to suit different solids control equipment tank designs.
✔ Low Maintenance, Simple Structure
No internal moving parts reduce maintenance requirements and ensure long service life in solids control equipment environments.
Technical Specifications
| Model | TRNJQ50-3X | TRNJQ80-3 | TRNJQ80-3X | |
| Diameter | 50mm | 80mm | 80mm | |
| Working Pressure | ≤3.2MPa | ≤6.4MPa | ≤3.2MPa | |
| Nozzle No. | 1/3e | 1/3e | 1/3e | |
| Rotation Angle | 360° | N/A | 360° | |
Effective solids suspension is critical for maintaining drilling fluid quality and protecting separation equipment. The TR Mud Gun provides targeted hydraulic agitation that complements mechanical mixers, allowing Solids control equipment to operate efficiently, reduce wear, and maintain stable processing performance.
● Oil and gas drilling fluid circulation tanks
● Integrated solids control equipment systems
● HDD and trenchless construction slurry tanks
● Geothermal drilling and mining operations
● Workover rigs and closed-loop fluid systems
✅ Proven performance in demanding solids control equipment conditions
✅ Effective elimination of tank dead zones
✅ Simple installation and reliable operation
✅ Seamless compatibility with complete solids control equipment systems
✅ Global technical support and spare parts availability
TR Solids Control specializes in the design and manufacture of advanced Solids control equipment and complete drilling fluid management solutions. From mud guns and agitators to shale shakers and centrifuges, TR delivers durable, field-proven solids control equipment trusted by customers worldwide.
