API / ISO High Power Mud Cleaning Equipment City Bored Piling Use

API / ISO High Power Mud Cleaning Equipment City Bored Piling Use
API / ISO High Power Mud Cleaning Equipment City Bored Piling Use
video play

Large Image :  API / ISO High Power Mud Cleaning Equipment City Bored Piling Use

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO9001 Certificate
Model Number: TRQJ250*3S-100*20N
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 20 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 300 Sets / Month
Detailed Product Description
Capacity: 320m3/h Desander Cyclone Specs: 10"
Desander Cyclone Qty: 3nos Desilter Cyclone Specs: 4"
Desilter Qty: 20nos Working Pressure: 0.25-0.4Mpa
Inlet Size: DN200mm Outlet Size: DN250mm
Separation Point: 15-44um Bottom Shaker: TRZS703/N/A
Weight: 2350kg Dimension: 2419*2150*2147mm
High Light:

mud cleaning systems

,

mud control equipment

API / ISO High Power Mud Cleaning Equipment City Bored Piling Use



Introduction

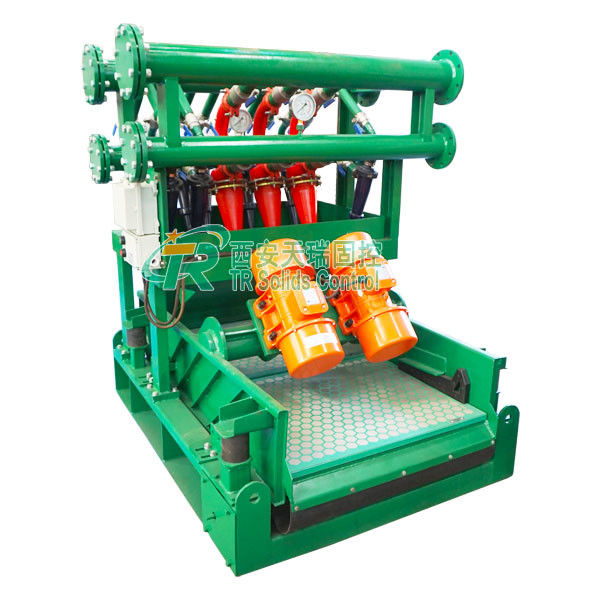

Mud cleaner is a combination of desander and desilter and mounted over a shale shaker with a fine mesh screen. TRQJ Series Mud Cleaner is the second or third stage separation equipment for drilling fluids, which deals with the mud being treated by the first grade separation equipment.

In the whole mud recovery system, the barite will be recovered and cuttings which are bigger than barite will be removed. Then the barite in the underflow will flow into circulation tanks through the screens when the weighted mud passes while the particles that are bigger than mesh will be removed.



Specialties of TRQJ Series Mud Cleaner



1. The Benefit of Environmental Protection
TR mud cleaner offers efficient removal of sand and silt particles larger than 20 microns, and some as small as 15 microns. Removing and drying drilled solids helps it to meet environmental regulations by minimizing waste generated and reducing disposal cost.
2. High Power
Processing capacity of 1,000 gpm with the 2-12 desander and 900 gpm with the desilter concentrating solids onto a classification shaker.
3. All purpose
TR mud cleaner can be operated with the 2-12 desander, desilter or both to process weighted or unweighted fluid systems.
4. Prolong Service Life
TR mud cleaner helps minimize maintenance, repair and replacement of downstream equipment.
5. Reduces Operating Cost
TR mud cleaner reduces sand, silt-size particles and saves liquid, thus reducing mud cost, chances of stuck pipe and lost circulation and improving rate of penetration.
6. Decreases Disposal Cost
TR mud cleaner minimizes waste generated thus reducing disposal cost.



Technical Data of TRQJ Series Mud Cleaner



Model TRQJ200×1S-100×4N TRQJ200×2S-100×8N TRQJ250×2S-100×12N TRQJ25×3S-100×20N
Capacity 60m³/h 120m³/h 240m³/h 320m³/h
Desander Cyclone Specs 8" 10"
Desander Cyclone Qty 1 2 2 3
Desilter Cyclone Specs 4"
Desilter Cyclone Qty 4 8 12 20
Working Pressure 0.25~0.4mpa
Inlet Size DN125mm DN150mm DN150mm DN200mm
Outlet Size DN150mm DN200mm DN200mm DN250mm
Separation Point 15μm~44μm
Bottom Shaker TRZS60 TRZS752 TRZS752 TRZS703
Dimension 1.51×1.16×2.0m 1.835×1.23×1.81m 1.835×1.23×1.81m 2.42×2.15×2.15m
Weight 600kg 980kg 1250kg 2350 kg
Remark All mud cleaners could be customized without bottom shaker.



API / ISO High Power Mud Cleaning Equipment City Bored Piling Use 0

Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
