| Capacity: | 320m3/h | Desander Cyclone Qty: | 3nos |
|---|---|---|---|
| Desilter Qty: | 20nos | Inlet Size: | DN200mm |
| Separation Point: | 15-44um | Weight: | 2350kg |
| Desander Cyclone Specs: | 10" | Desilter Cyclone Specs: | 4" |
| Working Pressure: | 0.25-0.4Mpa | Outlet Size: | DN250mm |
| Bottom Shaker: | TRZS2003 | ||
| High Light: | 3nos Desander Cyclone Mud Cleaner,320m3/H Mud Cleaning Equipment,Compact Drilling Mud Cleaner |
||

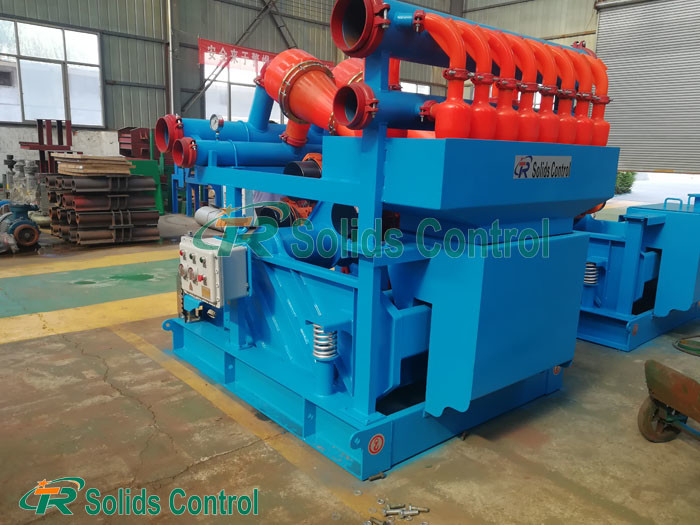

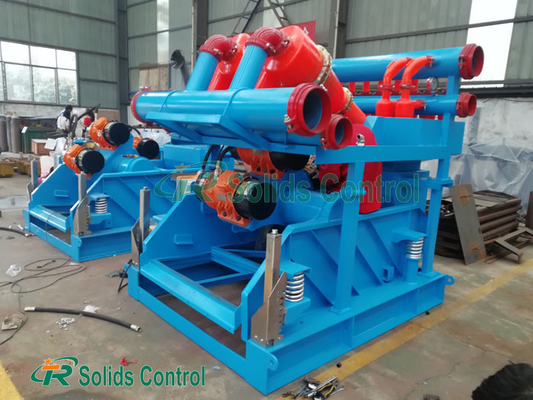

High Quality API Standard Drilling Mud Cleaner for Hot Sale , Oilfield Mud Cleaner
Introduction
Drilling liquid cleaner is fixed drilling liquid solids control equipment consisting of desander,desilter and shale shaker. It integrates the performance of aforesaid three equipments, featuring large disposal capacity, rapid treatment speed, less energy consumption, occupying small space, etc. It receives the most welcome in the international drilling market.
Mud Cleaner is the second or third stage separation equipment for drilling fluids, which deals with the mud being treated by the first grade separation equipment. The barite will be recovered and cuttings which are bigger than barite will be removed. Then the barite in the underflow will flow into circulation tanks through the screens when weighted mud passes while the particles that are bigger than mesh will be removed.
Main Features of TRQJ Series Mud Cleaner
Specification of TRQJ Series Mud Cleaner
| Model | TRQJ200×1S-100×4N | TRQJ200×2S-100×8N | TRQJ250×2S-100×12N | TRQJ25×3S-100×20N |
| Capacity | 60m³/h | 120m³/h | 240m³/h | 320m³/h |
| Desander Cyclone Specs | 8" | 10" | ||
| Desander Cyclone Qty | 1 | 2 | 2 | 3 |
| Desilter Cyclone Specs | 4" | |||
| Desilter Cyclone Qty | 4 | 8 | 12 | 20 |
| Working Pressure | 0.25～0.4mpa | |||
| Inlet Size | DN125mm | DN150mm | DN150mm | DN200mm |
| Outlet Size | DN150mm | DN200mm | DN200mm | DN250mm |
| Separation Point | 15μm～44μm | |||
| Bottom Shaker | TRZS60 | TRZS752 | TRZS752 | TRZS703 |
| Dimension | 1.51×1.16×2.0m | 1.835×1.23×1.81m | 1.835×1.23×1.81m | 2.42×2.15×2.15m |
| Weight | 600kg | 980kg | 1250kg | 2350 kg |
| Remark | All mud cleaners could be customized without bottom shaker. | |||
Application
TRQJ series mud cleaner is now widely used in city bored piling, oil & gas drilling, tunneling construction, trenchless HDD, Drilling Waste Management, Oil Mud Seperation, Coal Bed Gas Solids Control System, environment protection, mining, Oil Sludge Dewatering Systems, Water Drilling etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
