Product Details:
Payment & Shipping Terms:
|
| Capacity: | 240m3/h | Desander Cyclone Qty: | 2nos |
|---|---|---|---|
| Desilter Qty: | 12nos | Inlet Size: | DN150mm |
| Separation Point: | 15-44um | Weight: | 1250kg |
| Desander Cyclone Specs: | 10" | Desilter Cyclone Specs: | 4" |
| Working Pressure: | 0.25-0.4Mpa | Outlet Size: | DN200mm |
| Bottom Shaker: | TRZS752 | Dimension: | 1835*1230*1810mm |
| High Light: | Drilling Mud Cleaning System,ISO9001 Drilling Mud Cleaner,4" Desilter Cyclone Drilling Mud Cleaner |
||

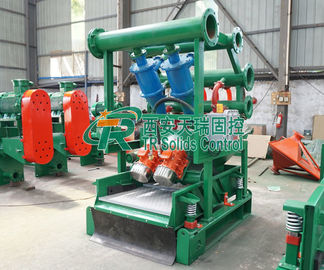

API Standard Oilfield Drilling Mud Cleaner with Large Capacity and High Efficiency
Introduction
Our mud cleaner structure is compact. It occupy small space and the function is powerful. Mud cleaner is the ideal device of the second class and the third class solid control to treat the drilling mud. We can design customized cost-effective mud Cleaner for customers special needs. Our mud cleaner can meet almost all needs for oil & gas well drilling fluids treatment system and HDD Mud Recycling System.

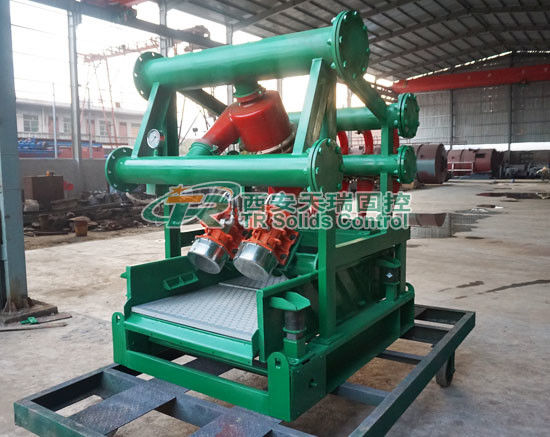

Mud cleaner is a combination of desander and or desilter and mounted over a shale shaker with a fine mesh screen. Mud is fed into inlet of hydrocyclone to separate particles and the underflow paases to the fine mesh where in particles larger than barite are discarded and thrown away. TRQJ series drilling mud cleaner are combined from Desander, Desilter and and Underflow Screen. Our Mud cleaner has the higher cleaning function compared with separated desander and desilter.
Advantages of TRQJ Series Mud Cleaner
Specification of TRQJ Series Mud Cleaner
| Model | TRQJ200×1S-100×4N | TRQJ200×2S-100×8N | TRQJ250×2S-100×12N | TRQJ25×3S-100×20N |
| Capacity | 60m³/h | 120m³/h | 240m³/h | 320m³/h |
| Desander Cyclone Specs | 8" | 10" | ||
| Desander Cyclone Qty | 1 | 2 | 2 | 3 |
| Desilter Cyclone Specs | 4" | |||
| Desilter Cyclone Qty | 4 | 8 | 12 | 20 |
| Working Pressure | 0.25～0.4mpa | |||
| Inlet Size | DN125mm | DN150mm | DN150mm | DN200mm |
| Outlet Size | DN150mm | DN200mm | DN200mm | DN250mm |
| Separation Point | 15μm～44μm | |||
| Bottom Shaker | TRZS60 | TRZS752 | TRZS752 | TRZS703 |
| Dimension | 1.51×1.16×2.0m | 1.835×1.23×1.81m | 1.835×1.23×1.81m | 2.42×2.15×2.15m |
| Weight | 600kg | 980kg | 1250kg | 2350 kg |
| Remark | All mud cleaners could be customized without bottom shaker. | |||
Product Application
Our mud cleaner is widely used in oil & gas drilling, trenchless HDD, tunneling construction, city bored piling, Drilling Waste Management, Oil Mud Seperation, Oil Sludge Dewatering Systems, environment protection, Coal Bed Gas Solids Control System, mining, Water Drilling etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
