| Model: | TRQJ250X3S-100X20N | Capacity: | 320m³/h(1480GPM) |
|---|---|---|---|
| Working Pressure: | 0.25~0.4mpa | Separation Point: | 15μm-44μm |
| Motor Power: | 2×1.5KW | Screen Qty: | 4 |

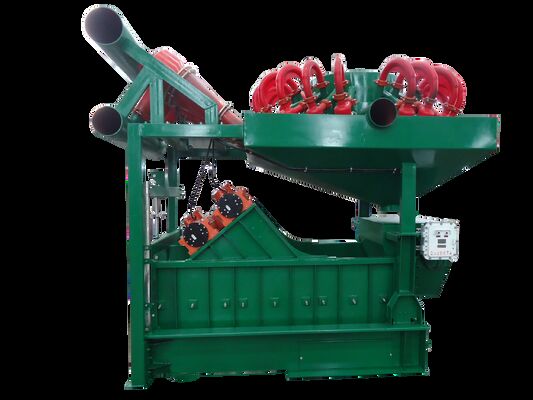

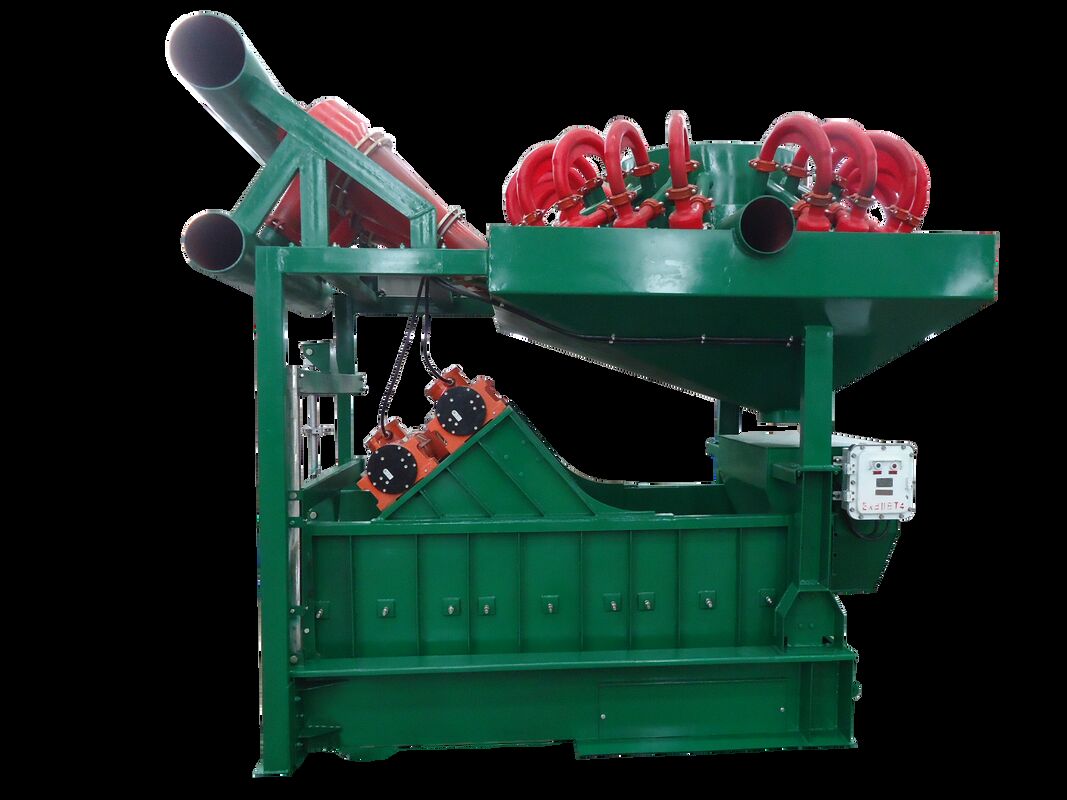

Mud Cleaner: Compact, High-Efficiency Solids Removal for Drilling Fluid Systems
The TR Mud Cleaner is a highly integrated solids-control unit that combines desanders, desilters, and fine shale shaker screens into one compact system. Designed to remove sand- and silt-sized particles from weighted and unweighted drilling fluids, the mud cleaner significantly improves mud quality, reduces fluid loss, and enhances overall drilling efficiency. Its modular design and reliable performance make it an essential component in modern drilling fluid processing systems.
Advantages
Integrated Multi-Stage Separation:Combines hydrocyclone desanding, desilting, and fine screening into a single, space-saving unit for efficient solids removal.
High Separation Efficiency:Optimized hydrocyclone design ensures precise cut points, while high-performance shaker screens maximize solids removal and fluid recovery.
Compact & Modular Design:Skid-mounted structure allows easy transportation, installation, and seamless integration into existing solids-control systems.
Durable & Low Maintenance Construction:Heavy-duty steel structure, wear-resistant components, and standardized spare parts ensure long service life and reduced downtime.
Technical Specifications
| Model | TRQJ250X3S-100X20N |
| Capacity | 320m³/h(1480GPM) |
| Desander Cyclone Specs | 10in |
| Desander Cyclone Qty | 3 |
| Desilter Cyclone Specs | 4in |
| Desilter Cyclone Qty | 20 |
| Working Pressure | 0.25~0.4mpa |
| Inlet Size | DN200mm |
| Outlet Size | DN250mm |
| Separation Point | 15μm-44μm |
| Bottom Shaker | TRZS584 |
| Vibration Motion | Linear Motion |
| Motor Power | 2×1.5KW |
| Screen Qty | 4 |
| Area of Screen | 2.6㎡ |
| Size | 2419×2150×2147mm |
| Weight | 2350 kg |
Applications
Oil & Gas Drilling Operations:Efficiently removes sand and silt from drilling fluids to maintain stable rheological properties and drilling performance.
HDD, Trenchless & Tunneling Projects:Ideal for compact job sites requiring efficient slurry cleaning and recycling.
Weighted Mud Systems:Effectively processes weighted drilling fluids while minimizing barite loss.
Mud Recycling & Environmental Systems:Supports cleaner operations by reducing waste volume and lowering disposal costs.
Why Choose the TR Mud Cleaner?
Improved Mud Quality & Reduced Costs:Enhances drilling fluid performance while reducing fluid loss and additive consumption.
Reliable Operation in Demanding Conditions:Designed for continuous operation under high-flow and abrasive drilling environments.
Flexible Configuration Options:Available with various cyclone sizes, quantities, and screen types to match specific project needs.
Professional Engineering & Support:Backed by TR’s experienced engineering team and global after-sales service network.
About TR SolidsControl
TR SolidsControl is a professional manufacturer of drilling fluid processing and solids-control equipment for oil & gas, HDD, trenchless, and tunneling industries. With a strong focus on quality, innovation, and field performance, TR delivers reliable mud cleaning solutions worldwide.
