| Model: | TRGLW550N-1 | Bowl Diameter: | 550mm (22inch) |
|---|---|---|---|
| Bowl Length: | 1800mm(49.2inch) | Max Capacity: | 90m3/h |
| Max Speed: | 3000r/min | Rotary Speed: | 2600r/min |

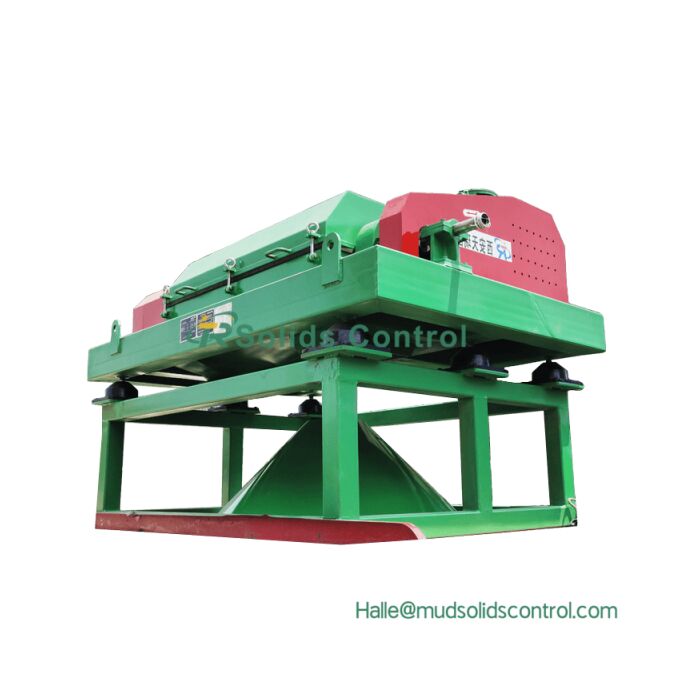

Decanter Centrifuge: High-G Solids Separation for Advanced Drilling Fluid Recovery
The TR Decanter Centrifuge is engineered to provide high-efficiency separation of ultra-fine solids from drilling fluids, supporting improved mud quality, reduced waste volume, and lower operating costs. Utilizing a high-speed rotating bowl and precision scroll assembly, this centrifuge generates strong centrifugal force to remove low-micron solids while maintaining stable, continuous operation in demanding drilling environments.
Advantages
High-G Separation Performance:Optimized bowl design and variable-speed control generate high centrifugal force, enabling effective removal of fine solids and recovery of valuable drilling fluids.
Wear-Resistant & Heavy-Duty Construction:Key components such as the bowl and scroll are manufactured from high-grade alloy steel with wear-protection treatment for long service life.
Stable & Continuous Operation:Advanced vibration control and dynamic balancing ensure smooth, reliable performance during 24/7 drilling operations.
Flexible Process Control:Adjustable differential speed and feed rate allow precise control to match different mud types and solids loading conditions.
Technical Specifications
| Model | TRGLW550N-1 |
| Bowl Diameter | 550mm (22inch) |
| Bowl Length | 1800mm(49.2inch) |
| Max Capacity | 90m3/h |
| Max Speed | 3000r/min |
| Rotary Speed | 2600r/min |
| G-Force | 2711 |
| Separation | 2~5μm |
| Main Drive | 55kW-4p |
| Back Drive | 22kW-4p |
| Weight | 5800kg |
| Dimension | 3250X1960X1350 |
Applications
Drilling Fluid Fine Solids Removal:Removes ultra-fine solids to improve mud properties and enhance drilling performance.
Weighted & Unweighted Mud Systems:Effectively processes both weighted and non-weighted drilling fluids while minimizing barite loss.
HDD, Trenchless & Tunneling Projects:Supports high-performance slurry treatment in trenchless construction environments.
Waste Volume Reduction & Environmental Systems:Reduces disposal volume and supports cleaner, more cost-effective operations.
Why Choose the TR Decanter Centrifuge?
Improved Mud Quality & Reduced Costs:Enhances fluid reuse and lowers chemical consumption and waste disposal expenses.
Reliable Performance in Harsh Conditions:Designed for continuous operation under high solids loading and abrasive conditions.
Easy Integration with Solids Control Systems:Seamlessly integrates with TR shale shakers, mud cleaners, and complete mud systems.
Professional Engineering & Global Support:Backed by TR’s experienced engineering team and worldwide after-sales service network.
About TR SolidsControl
TR SolidsControl is a leading manufacturer of drilling fluid processing and solids-control equipment for oil & gas, HDD, trenchless, and tunneling industries. With advanced engineering, strict quality control, and field-proven designs, TR delivers reliable, high-performance decanter centrifuge solutions worldwide.
