Product Details:
Payment & Shipping Terms:
|
| Model: | TRCD930C | Capacity: | 30-50T/h |
|---|---|---|---|
| Basket Max. Diameter: | 930mm | Basket Gap: | 0.25~0.5mm |
| Rotary Speed: | 900r/min | Air Knife Airlnlet Pressure: | 0.69mpa |

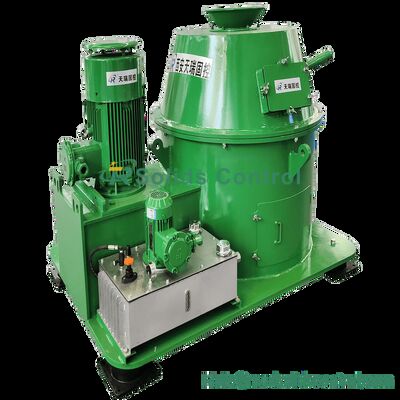

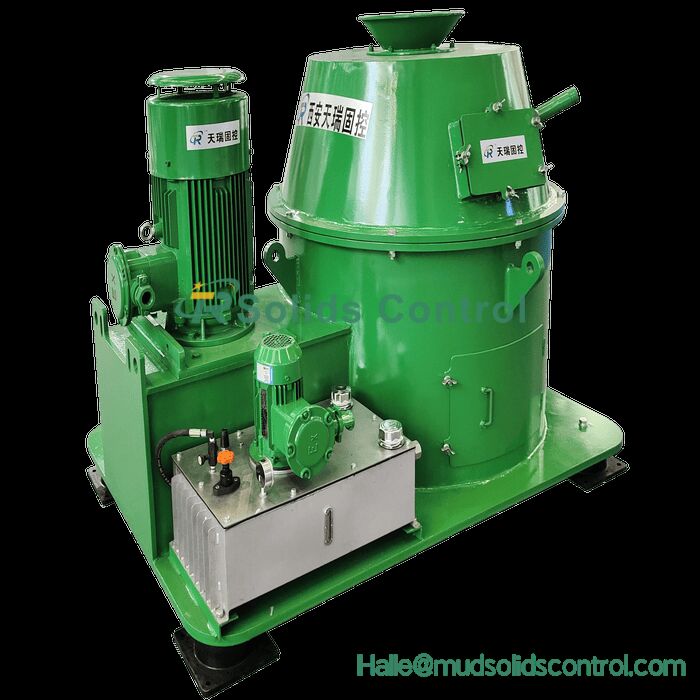

Vertical Cuttings Dryer: Advanced Centrifugal Technology for Efficient Drilling Waste Treatment
The TR Vertical Cuttings Dryer (VCD) is a high-performance drilling waste treatment unit designed to efficiently separate liquids from drilled cuttings in oil-based and synthetic-based mud systems. By utilizing a high-speed vertical centrifugal basket and continuous discharge mechanism, the VCD significantly reduces residual oil on cuttings while recovering valuable drilling fluids. Its compact, heavy-duty design ensures reliable operation in both onshore and offshore drilling environments.
Advantages
Low Oil-on-Cuttings (ROC) Output:
High centrifugal force effectively removes liquid hydrocarbons from cuttings, achieving low ROC levels that meet environmental disposal requirements.
Continuous High-Capacity Processing:Capable of handling large volumes of drilled cuttings without interrupting drilling operations, improving overall system efficiency.
Robust Wear-Resistant Design:Critical components such as the basket, scraper, and housing are manufactured from wear-resistant alloy materials to withstand abrasive solids.
Optimized Safety & Control System:Fully enclosed design with vibration monitoring, overload protection, and interlock systems enhances operational safety and equipment stability.
Technical Specifications
| Model | TRCD930C |
| Capacity | 30-50T/h |
| Basket Max. Diameter | 930mm |
| Basket Gap | 0.25~0.5mm |
| Rotary Speed | 900r/min |
| Air knife Airlnlet Pressure | 0.69mpa |
| Air Tool Air Supply | 1,8m³/min |
| Fuel Tank Volume | 60L |
| Main Motor Power(kw) | 55kw |
| Oil Pump Power(kw) | 0.55kw |
| Weight | 5900kg |
Applications
Oil-Based & Synthetic-Based Mud Treatment:Effectively dries cuttings while maximizing recovery of expensive drilling fluids.
Onshore & Offshore Drilling Operations:Compact footprint and high reliability make it suitable for space-restricted platforms and land rigs.
Integrated Drilling Waste Management Systems:Works in conjunction with shale shakers, decanter centrifuges, and cuttings transfer systems.
Environmental Compliance & Waste Reduction:Helps operators meet strict environmental regulations while reducing waste disposal volume.
Why Choose the TR Vertical Cuttings Dryer?
Reduced Environmental Impact:Lower oil content in cuttings supports cleaner disposal and regulatory compliance.
Higher Fluid Recovery Value:Recovered drilling fluid can be reused, reducing overall mud system costs.
Stable Operation & Long Service Life:Precision-balanced rotating components ensure smooth operation under continuous heavy-duty use.
Seamless Integration with TR Systems:Designed to integrate easily with TR SolidsControl equipment and complete drilling waste solutions.
About TR SolidsControl
TR SolidsControl specializes in the design and manufacture of drilling fluid processing and waste-management equipment for oil & gas and trenchless industries. With strong engineering expertise, strict quality control, and global service capability, TR delivers reliable solutions for efficient drilling waste treatment.
