| Model: | TRPS584G | Vidration Motion: | Balanced Elliptical Motion |
|---|---|---|---|
| Treatment Capacity: | 140m³/h | Motor Power: | 1.94kw+1.0kw |
| Double Amplitude: | 7mm | Deck Adjustment: | －3°～＋3° |

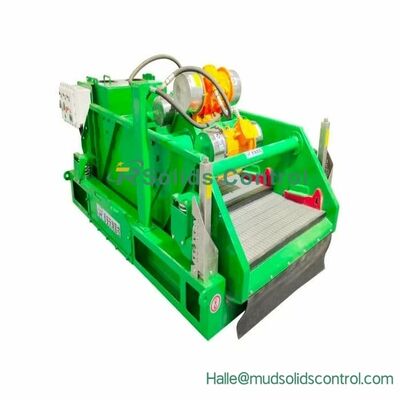

Shale Shaker:Core Screening Unit in Advanced Solids Control Equipment Systems
The TR Shale Shaker is a high-performance screening machine designed to deliver reliable primary solids separation in modern Solids control equipment systems. Built to operate continuously under high load and high vibration conditions, this shale shaker provides stable cuttings removal while maximizing drilling fluid recovery, making it a vital component of any solids control equipment package.
As frontline Solids control equipment, the shale shaker performs the first and most critical stage of solids removal. Its optimized vibration mechanism rapidly conveys drilled cuttings across the screen surface, allowing finer downstream Solids control equipment to operate more efficiently and with reduced wear.
Key Features & Advantages
✔ Primary Solids Control Equipment Function
Effectively removes large and medium-sized solids early in the process, protecting downstream Solids control equipment from overload.
✔ Efficient Vibration System
Balanced vibration delivers strong solids conveyance with controlled fluid retention, improving overall Solids control equipment performance.
✔ High-Capacity Screen Deck
Wide screening area supports high flow rates, enabling this Solids control equipment to perform consistently in demanding drilling conditions.
✔ API-Compliant Screen Compatibility
Designed to accept various API RP 13C shaker screens, allowing flexible configuration of Solids control equipment for different formations.
✔ Rugged Industrial Construction
Reinforced frame and wear-resistant components ensure long service life in harsh Solids control equipment environments.
Technical Specifications
| Model | TRPS584G | TRZS584G |
| Vidration Motion | Balanced Elliptical Motion | Linear Motion |
| Treatment Capacity | 140m³/h | 130m³/h |
| Motor Power | 1.94kw+1.0kw | 1.94kw×2 |
| Screen Specs | (585×1165mm)×4 | (585×1165mm)×4 |
| Screen Area | 2.7m² | 2.7m² |
| Vibration Strength | ≤8.5G(Adjustable) | ≤8.5G(Adjustable) |
| Double Amplitude | 7mm | 7mm |
| Deck Adjustment | －3°～＋3° | －3°～＋3° |
| Ex Standard | ExdllBt4 / IECEX / A-TEX | ExdllBt4 / IECEX / A-TEX |
| Weight | 1816kg | 1700kg |
| Dimension | 2600×1645×1380mm | 2600×1645×1480mm |
Operational Benefits
The TR Shale Shaker enhances the effectiveness of complete Solids control equipment systems by stabilizing mud properties, reducing dilution requirements, and lowering overall fluid treatment costs. Its dependable operation helps maintain consistent drilling performance while extending the lifespan of downstream Solids control equipment.
Typical Applications
● Onshore and offshore oil & gas drilling rigs
● Drilling fluid circulation and recycling systems
● Workover and well servicing operations
● HDD and trenchless construction projects
● Geothermal and mining drilling programs
● Integrated modular Solids control equipment solutions
Why Choose TR Shale Shaker?
✅ Proven reliability as primary Solids control equipment
✅ High throughput with efficient solids separation
✅ Easy operation and maintenance
✅ Seamless integration with complete Solids control equipment systems
✅ Global technical service and spare parts support
About TR Solids Control
TR Solids Control specializes in the design and manufacture of advanced Solids control equipment and complete drilling fluid management solutions. From shale shakers and centrifuges to mud cleaners and shaker screens, TR delivers durable, field-proven Solids control equipment trusted worldwide.
