Adjustable Dual Motion 110m3/H Oilfield Shale Shaker

Adjustable Dual Motion 110m3/H Oilfield Shale Shaker
Adjustable Dual Motion 110m3/H Oilfield Shale Shaker
video play

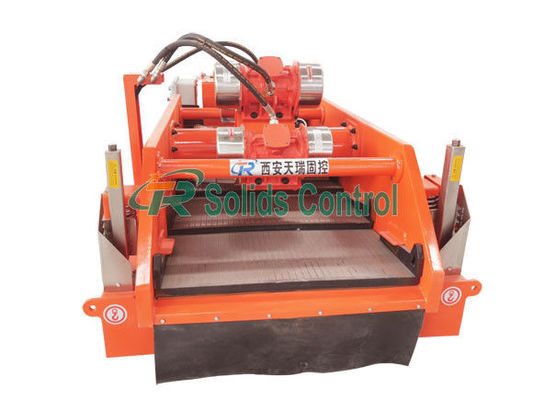

Large Image :  Adjustable Dual Motion 110m3/H Oilfield Shale Shaker

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API certificate, ISO9001 certificate
Model Number: TRZS584
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 10 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 30 Sets / Month
Detailed Product Description
Capacity: 110m3/H Motor Power: 1.5kw + 1.5kw + 0.4kw
Screen Area: 2.0m2 Double Amplitude: 6mm
Ex Standard: ExdllBt4 Vibration Motion: Dual Motion
Screen Specs.: (585*1165mm)*3pcs Vibration Strength: ≤7.1G(Adjustabe)
Adjustment Angle: -1°-+5° Weight: 1500kg
High Light:

mud shaker


drilling fluid equipment

Swaco Mongoose PT Shale Shaker with Three Motors




Shale shaker is the first phase equipment to achieve the mud without landing. It can also be used at the first stage of mud recycling system in the oil drilling process. If you want to realize the mud does not fall, single equipment can not be achieved. It requires a variety of equipment combined together and treated systematically.


TR Series shaker is a high strength vibrating screen independently in order to meet the domestic and international market demand and environmental protection requirements. Our drying shaker has been used in oil drilling field, shield construction site, city piling site. They could meet a variety of drill cuttings dewatering, screening, purification requirements. They ensure the continuous and effective treatment of the whole drilling shaving slurry, and have been highly recognized by customers.


Main features of our mud shale shaker


  • Enhances cuttings processing volume.
  • G-forces linear motion up to 8.5G.
  • Hi-speed conveyance of cuttings.
  • Able to process heavier solids loads.
  • Shale shaker feeder can be weir feeder or box feeder.
  • AWD device is adjustable from -1°~5°.
  • Higher processing capacity.
  • Single side shale shaker screens tension system to easily change the screens.


Technical Parameters of TR Shale Shaker


(Model) TRPS584 TRZS584
Vibration Motion Dual Motion Dual Motion
Treatment Capacity 140m³/h 110m³/h
Motor Power 1.72KW+1.72KW+0.75KW 1.5KW+1.5KW+0.4KW
Screen Specs. (585×1165mm)×4 (585×1165mm)×3
Screen Area 2.7m² 2.0m²
Vibration Strength ≤8.5G ≤8.5G
Double Amplitude 7mm 7mm
Deck Adjustment -3°~+3° -3°~+3°
Ex Standard ExdIIBt4/IECEX/A-TEX
Weight 1700kg 1500kg
Dimension 2600×1645×1138mm 2100×1645×1380mm
Remark Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3


Adjustable Dual Motion 110m3/H Oilfield Shale Shaker 0




TRZS mud shale shaker is widely used in Drilling Waste Management, city bored piling, oil & gas drilling, tunneling construction, trenchless HDD, environment protection, Coal Bed Gas Solids Control System, micro-tunneling, Oil Mud Seperation, mining, Oil Sludge Dewatering Systems, Water Drilling etc.


Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.


shale shaker,


drilling fluid equipment
