Product Details:
Payment & Shipping Terms:
|
| Model: | TRZYQ800 | Capacity: | 180 M³/h |
|---|---|---|---|
| Main Body Diameter: | 800mm | Inlet Pipe: | DN100mm |
| Output Pipe: | DN150mm | Gas Discharge Pipe: | DN200mm |

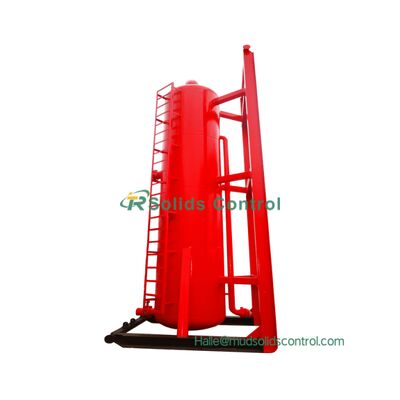

Mud Gas Separator:High-Capacity Gas Handling Unit for Critical Solids Control Equipment Safety
The TR Mud Gas Separator is a dedicated well-control device designed to rapidly separate free gas from gas-cut drilling fluids before they reach downstream Solids control equipment. Engineered for high-flow and high-gas conditions, this separator ensures stable mud circulation while protecting personnel and solids control equipment from pressure fluctuations and gas interference.
As a front-line safety component within modern Solids control equipment systems, the mud gas separator stabilizes drilling operations during unexpected gas influx. By efficiently venting gas and returning treated mud to the flow line, it allows other solids control equipment to operate normally without interruption or damage.
Key Advantages
✔ Essential Safety Element in Solids Control Equipment
Safely removes large volumes of free gas, protecting the entire solids control equipment system.
✔ Optimized Internal Separation Design
Specially engineered internal structure improves gas-liquid disengagement efficiency under high-flow solids control equipment conditions.
✔ High Throughput Capability
Handles sudden surges of gas-cut mud, ensuring consistent performance of downstream solids control equipment.
✔ Heavy-Duty Pressure Vessel Construction
Manufactured from high-strength steel to withstand harsh drilling environments and continuous solids control equipment service.
✔ Easy Installation & System Compatibility
Standardized connections allow seamless integration with existing solids control equipment layouts.
Technical Specifications
| Model | TRZYQ800 | TRZYQ1000 | TRZYQ1200 |
| Capacity | 180 m³/h | 240 m³/h | 320 m³/h |
| Main Body Diameter | 800mm | 1000mm | 1200mm |
| Inlet Pipe | DN100mm | DN125mm | DN125mm |
| Output Pipe | DN150mm | DN200mm | DN250mm |
| Gas Discharge Pipe | DN200mm | DN200mm | DN200mm |
| Weight | 1750kg | 2235kg | 2600kg |
| Dimension | 1900*1900*5700mm | 2000*2000*5860mm | 2200*2200*6634mm |
Role in Solids Control Systems
Uncontrolled gas entering the mud system can disrupt separation efficiency and pose serious safety risks. The TR Mud Gas Separator ensures gas is safely removed at the earliest stage, enabling downstream Solids control equipment such as shale shakers and mud cleaners to operate under stable and predictable conditions.
Typical Applications
● Onshore and offshore oil & gas drilling rigs
● High-gas drilling fluid circulation systems
● Integrated solids control equipment installations
● Workover and well servicing operations
● Geothermal and exploration drilling projects
Why Choose TR Mud Gas Separator?
✅ Proven reliability in critical solids control equipment applications
✅ High gas-handling efficiency with stable operation
✅ Rugged construction for long-term field use
✅ Simple operation with minimal maintenance
✅ Worldwide technical support and spare parts availability
About TR Solids Control
TR Solids Control is a professional manufacturer of advanced Solids control equipment and complete drilling fluid management solutions. From mud gas separators to shale shakers and centrifuges, TR delivers durable, field-proven solids control equipment trusted by drilling professionals worldwide.
