Shaker Screen: High-Efficiency Solids Separation for Drilling Fluid Control

Shaker Screen: High-Efficiency Solids Separation for Drilling Fluid Control

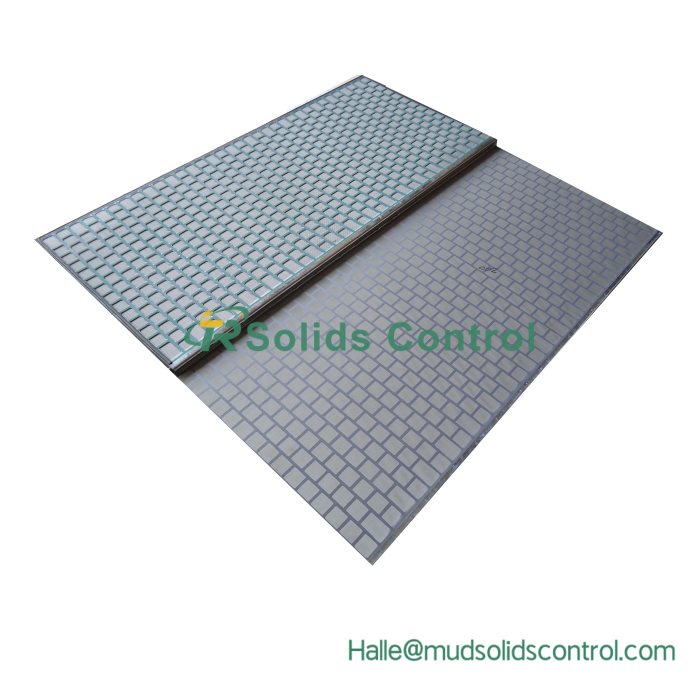

The TR Shaker Screen is engineered to deliver superior solids separation and extended service life in oil & gas drilling, HDD, and trenchless operations. Manufactured with precision-layered wire mesh and a high-strength steel or composite frame, TR shaker screens provide excellent conductance, reliable cut-point control, and consistent performance under high-flow and high-vibration conditions. All screens are designed and produced in accordance with API RP 13C standards, ensuring dependable classification and separation efficiency.

Advantages

High Screening Efficiency:Optimized mesh configuration and accurate API cut-point ensure effective removal of drilled solids while maximizing fluid recovery.

Durable Frame Construction:Available with steel or composite frames, offering excellent rigidity, impact resistance, and long operational life.

Excellent Wear & Fatigue Resistance:Premium stainless steel wire mesh resists abrasion and corrosion, maintaining stable performance in harsh drilling environments.

API RP 13C Compliant:Strictly tested and labeled according to API RP 13C standards for mesh designation, conductance, and non-blanked area.

Technical Specifications (Typical Configuration)

Screen Type:Flat / Pyramid (PMD)

Mesh Range:API 20 – API 325

Frame Type:Steel Frame / Composite Frame

Screen Layers:2 Layers

Mesh Material :Stainless Steel

Connection Method:Hook Strip / Bolt-On

Standard API RP 13C

Compatible Shakers:FL2000, F12000 PMD, Mongoose, and other popular models

(Specifications can be customized based on shaker model and operating conditions.)

Applications

Primary Solids Control:Installed on shale shakers to remove large drilled cuttings at the first stage of the solids-control system.

Oil & Gas Drilling Operations:Provides reliable separation performance for onshore and offshore drilling rigs.

HDD & Trenchless Projects:Efficiently handles high-flow drilling fluids in horizontal directional drilling applications.

Mud Recycling & Environmental Systems:Supports efficient mud recovery and waste reduction for cleaner, more cost-effective operations.

Why Choose TR Shaker Screens?

Stable & Consistent Performance:Precision manufacturing ensures uniform mesh tension and reliable vibration response.

Longer Service Life:High-quality materials and reinforced frames reduce screen failure and replacement frequency.

Cost-Effective Replacement Solution:Fully interchangeable with original equipment screens, offering excellent performance at a competitive cost.

Professional Manufacturing & Support:Backed by TR’s in-house design, production, testing, and global technical support capabilities.

About TR SolidsControl

TR SolidsControl is a professional manufacturer of drilling fluid solids-control equipment and shaker screens, supplying oil & gas, HDD, and trenchless industries worldwide. With API-certified manufacturing, strict quality control, and continuous innovation, TR delivers reliable, high-performance shaker screens tailored to demanding field conditions.
