Shale Shaker 6417-01 Side And Cross Support Assy For Drilling Mud

Shale Shaker 6417-01 Side And Cross Support Assy For Drilling Mud
Shale Shaker 6417-01 Side And Cross Support Assy For Drilling Mud Shale Shaker 6417-01 Side And Cross Support Assy For Drilling Mud Shale Shaker 6417-01 Side And Cross Support Assy For Drilling Mud

Large Image :  Shale Shaker 6417-01 Side And Cross Support Assy For Drilling Mud

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API Q1, ISO 9001
Model Number: TRPS584-ZC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: In stock
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 Pcs / Month
Detailed Product Description
Part Number: 6417-01/6417-06 Application: Oilfield Shale Shaker
Part For Model: FLC 2000 Flo-Line Cleaner Package: Carton Box Or Wooden Case
Advantage: High Performance Warranty: 12 Months
High Light:

Side And Cross Support Assy

,

6417-01 Shale Shaker Support Assy

,

API Cross Support Assy

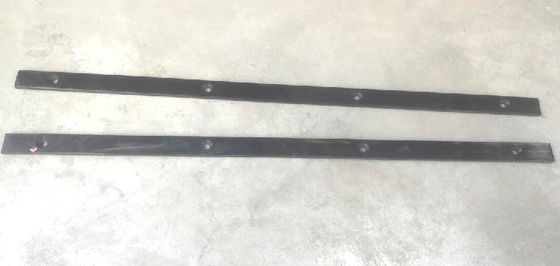

6417-01 Side and Cross Support Assy. for Shale Shaker



Product Introduction



Xi'An TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer and supplier of all types of petroleum equipment. The company is located in Xi'an city of China. And we have many years of history in the petroleum equipment industry. Our main products include drilling equipment, solid control equipment, oil production equipment, wellhead equipment, well control equipment, downhole tools, OCTG pipe, vavle & pipe fitting and oilfield tools.



Shale shaker for solids control are devices that remove drill cuttings from the drilling fluid while circulating and drilling. There are many different designs and research into the best design is constantly ongoing since solids control is vital in keeping down costs associated with the drilling fluid. The basic design consists of large, flat sheets of wire mesh screens or sieves of various mesh sizes that shakes or vibrates the drill cuttings, commonly shale shaker, across and off of the screens as the drilling fluid flows through them and back into the drilling fluids processing system, often called a mud system. This separates the drill cuttings, often called solids, from the drilling fluid so that it can be re-circulated back down the well bore. In oilfield industry, linear motion shale shaker are widely used for drilling mud solids control of oil gas well drilling for rig.



Main Features of Our Drilling Shale Shaker

  1. Overall heat treatment, long time work.
  2. Schneider or Siemens electrical components.
  3. Martin or OLI vibration motor.
  4. Hopper type feed mode reduces feed speed.
  5. Vibration strength is 7.5G, adjustable.
  6. Screen box angle is mechanical and adjustable.
  7. Wedge-type compaction device facilitates fast replacement of screen.

Technical Information of Drilling Shale Shaker



Model TRPS703 TRPS585-4 TRZS703 TRZS585
Vibration Motion Balanced Elliptical Motion Linear Motion
Treatment Capacity 130m³/h 140m³/h 120m³/h 130m³/h
Motor Power 1.94+1.0kw 1.94+1.0kw 1.5KW×2 1.72KW×2
Screen Specs. (700×1250mm)×3 (585×1165mm)×4 (700×1250mm)×3 (585×1165mm)×4
Screen Area 2.6m² 2.7m² 2.6m² 2.7m²
Vibration Strength ≤7.1G ≤7.1G ≤7.1G ≤7.1G
Double Amplitude 7mm 7mm 6mm 6mm
Deck Adjustment -1°~+5° -1°~+5° -1°~+5° -1°~+5°
Ex Standard ExdIIBt4 / IECEX / A-TEX
Weight 1630kg 1618kg 1620kg 1600kg
Dimension 2770×1785×1690mm 2966×1600×1280mm 2770×1785×1690mm 2966×1600×1280mm
Remark Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3.



Shale Shaker 6417-01 Side And Cross Support Assy For Drilling Mud 0



Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer of various oilfield equipments and solid control equipment since 2010, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.


We have almost 11 years experience of the manufacting, design and supply drilling and workover rig in China, more than 30 engineers' team can satisfy all the special requirement of the oilfield products, can design special according the oilfiled situations and customers requirment.



Our products Including below four series with full model types:



  • Solid Control: shale shaker, mud cleaner, decanter centrifuge, mud agitator;
  • Drilling Bit: rock roller bit,tricone bit,pdc drill bit,single bit,cone bit and hole opener;
  • Drilling Equipment Parts: manual tong,elevator,slips,stabilizer;
  • Workover Fishing Tools: releasing spear,junk basket, overshot,reversing sub,die collar, fishing tap etc.
