Product Details:
Payment & Shipping Terms:
|
| Flow Rate: | 120m3/h | Lift: | 35m |
|---|---|---|---|
| Impeller Diameter: | 11inch | Power: | 30kw |
| Weight: | 696kg | Dimension: | 1696*568*805mm |
| Color: | Green | Warraty: | 12 Months |
| High Light: | Mission Type Centrifugal Mud Pump,Solid Control Centrifugal Mud Pump,120m3/H Centrifugal Mud Pump |
||

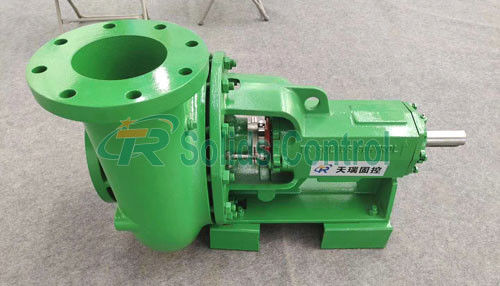

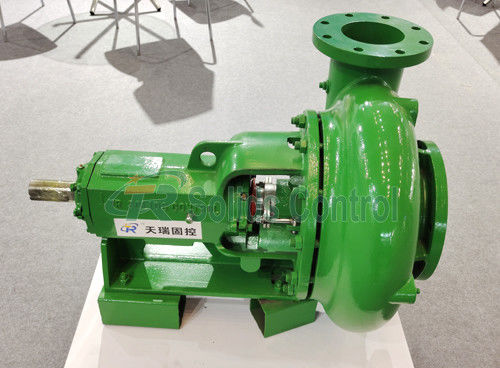

SB5*4-11J Mission Type Centrifugal Pump for Solid Control
Product Overview
Centrifugal pump is ideal corollary equipment to provide power for desander, desilter and jet mud mixer. It also can fill mud pump and replenish wellhead in drilling process. Most of its parts can be exchangeable. It has advantages of reliable operation, easy maintenance, little shaft seal leakage, and long service life.
Centrifugal Pump's function is for transferring drilling fluid or industrial suspension slurry, it can pump viscous and corrosive liquids by use of modern design theory. Compared with the general pump, our pump is with good performance, high traffic, high temperature, long service life, easy maintenance, high reliability and remarkable energy saving characteristics. Now it is widely used around the world on onshore and offshore drilling field. We will provide customers with the best pumps to meet different conditions and requirements.
Main Advantages of TR Centrifugal Pump
Product Application
TRSB series centrifugal pumps are widely used in oil & gas drilling, Drilling Waste Management, city bored piling, trenchless HDD, mining, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, environment protection, Water Drilling etc.
Technical Data of TRSB Series Drilling Centrifugal Pump
| Model | Power | Flow | Lift(m) | Efficiency | NPSH | Electric |
| TRSB8×6-14J | 75KW | 320m3/h | 40m | 65% | 5 | 50HZ |
| TRSB8×6-12J | 355m3/h | 43m | 66% | 4.8 | 60HZ | |
| TRSB8×6-13J | 55KW | 290m3/h | 33m | 64% | 5.5 | 50HZ |
| TRSB6×5-12J | 196m3/h | 48m | 61% | 3 | 60HZ | |
| TRSB6×5-13J | 45KW | 180m3/h | 34m | 60% | 3 | 50HZ |
| TRSB5×4-14J | 149m3/h | 61m | 58% | 4.6 | 60HZ | |
| TRSB6×5-12J | 37KW | 160m3/h | 30m | 60% | 3 | 50HZ |
| TRSB5×4-12J | 112m3/h | 45m | 58% | 4.6 | 60HZ | |
| TRSB6×5-11J | 30KW | 120m3/h | 21m | 62% | 2.5 | 50HZ |
| TRSB5×4-12J | 112m3/h | 37m | 57% | 4.6 | 60HZ | |
| TRSB5×4-12J | 22KW | 90m3/h | 30m | 56% | 4.5 | 50HZ |
| TRSB5×4-10J | 105m3/h | 30m | 57% | 4.2 | 60HZ | |
| TRSB5x4-11J | 18.5KW | 90m3/h | 24m | 56% | 4.5 | 50HZ |
| TRSB4x3-12J | 55m3/h | 46m | 48% | 4 | 60HZ | |
| TRSB4x3-13J | 15KW | 50m3/h | 40m | 48% | 4.5 | 50HZ |
| TRSB4x3-11J | 54m3/h | 35m | 47% | 4 | 60HZ | |
| TRSB4x3-12J | 11KW | 45m3/h | 30m | 47% | 4 | 50HZ |
| TRSB3x2-12J | 28m3/h | 45m | 40% | 3.1 | 60HZ | |
| TRSB3x2-12J | 7.5KW | 45m3/h | 24m | 46% | 4 | 50HZ |
| TRSB3x2-11J | 25m3/h | 35m | 41% | 3.1 | 60HZ | |
| TRSB3x2-11J | 5.5KW | 20m3/h | 23m | 39% | 3 | 50HZ |

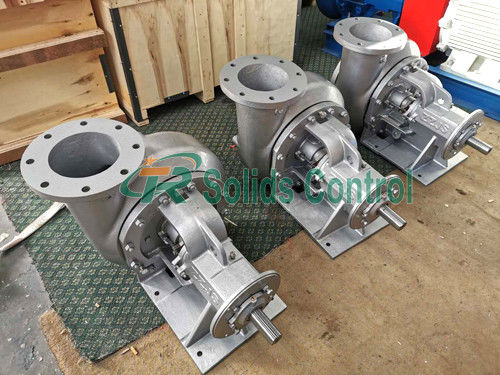

The pump is placed well covered with plastic sheet inside, and standard exporting wood cases outside. We make sure the wood case is strong enough and the pump is bolted inside tightly.
Are you finding a centrifugal pump manufacturer for your mud treatment problem? TR Solids Control is your best choice. As a professional and innovative specialist in this industry for more than 10 years, we could provide top quality solid control equipment and satisfying solution. Contact with us for more details about our desander, mud tank, shale shaker, decanter centrifuge, mud cleaner, mud agitator, vacuum degasser, shaker screen etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
