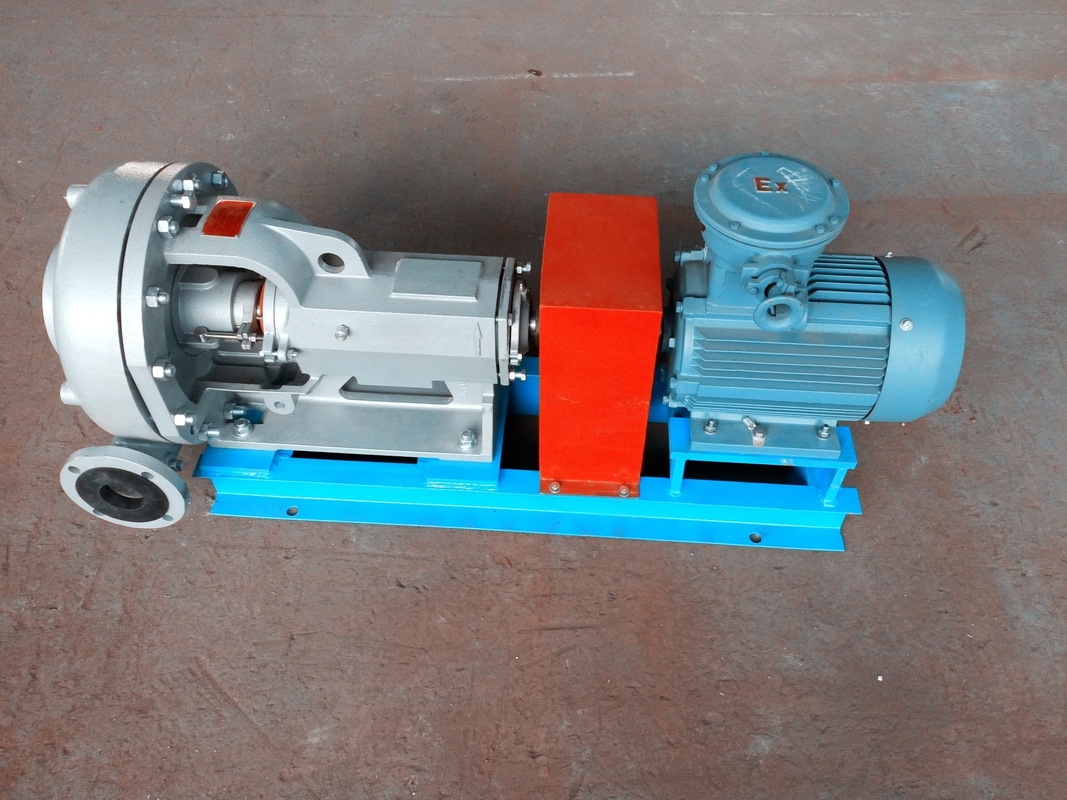

TRSB8x6-12J Centrifugal Pump 355m3/H 43m Lift 63% Efficiency 4 NPSH

China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
Professional solids control manufacturer. Their Product replacement shaker screens have long service time and good treatment. They help us a lot!

—— Mr. Samir

I purchased 10 pcs TRSB8*6-12J centrifugal pump from TR Solids Control. They are good-looking and really have good quality and considerate after sales service!

—— Mr. Warren

We ordered a set of mud system for our oilfield drilling field, TR product showed good performance in the site. We like that very much!

—— Diego Olbrich

TR shaker screens have top quality and good price. We have been purchasing them from TR for more than 4 years.

—— Nghiem Thic Hai

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Hossein Jafari

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Ms. Crina

We start use TRZS703 Shale Shaker since 2012, now we have 8 sets working in our customer's oilfield site, perfect machine with reasonable price.

—— S. A. Kazi

I'm Online Chat Now

TRSB8x6-12J Centrifugal Pump 355m3/H 43m Lift 63% Efficiency 4 NPSH

TRSB8x6-12J Centrifugal Pump 355m3/H 43m Lift 63% Efficiency 4 NPSH
TRSB8x6-12J Centrifugal Pump 355m3/H 43m Lift 63% Efficiency 4 NPSH
video play

Large Image :  TRSB8x6-12J Centrifugal Pump 355m3/H 43m Lift 63% Efficiency 4 NPSH

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certified
Model Number: TRSB6*5-13J
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case or pallet
Delivery Time: 15 days after receiving 30% deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 50000 Sets / Month
Detailed Product Description
Flow Rate: 200m3/h Lift: 35m
Impeller Diameter: 13 Inch Power: 45kw
Electric System: 50HZ Ex Standard: ExdIIBt4/IECEX/A-TEX
Weight: 786kg Dimension: 1811*558*858mm
High Light:

Anti Corrosive Centrifugal Pump

,

Centrifugal Pump 355m3/H

,

43m Lift Centrifugal Mud Pump

Drilling Fluid Equipment Industry Mission Equal Centrifugal Sand Pump



Introduction



Centrifugal Pump is also called as Sand Pump, Mixing Pump, Feeding Pump, Replenishing Pump and Filling Pump. It is the ideal matching equipment to provide impetus for desander, desilter and Jet mud mixer. Centrifugal pump can also be an assistant mud infusion pump and trip pump at well head. TR centrifugal pump can realize the quick positioning and installation.



Our TRSB series centrifugal pumps have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.



Main Advantages of TR Centrifugal Pump:

  1. Thicker pump shell.
  2. Bearings are imported SKF. High quality.
  3. Selection of alloy cast iron impeller, greater resistance to corrosion.
  4. Pump shell using alloy gray iron, longer life.
  5. High anti-corrosive alloy material mechanical seal. More durable,longer service life.
  6. Bearing lubrication can be oil and grease. Make bearing more adaptable and long life.
  7.  Interchangeable with international brands.

Technical Specifications of Centrifugal Pump



Model Power Flow Lift(m) Efficiency NPSH Electric
TRSB8×6-14J 75KW 320m3/h 40m 65% 5 50HZ
TRSB8×6-12J 355m3/h 43m 66% 4.8 60HZ
TRSB8×6-13J 55KW 290m3/h 33m 64% 5.5 50HZ
TRSB6×5-12J 196m3/h 48m 61% 3 60HZ
TRSB6×5-13J 45KW 180m3/h 34m 60% 3 50HZ
TRSB5×4-14J 149m3/h 61m 58% 4.6 60HZ
TRSB6×5-12J 37KW 160m3/h 30m 60% 3 50HZ
TRSB5×4-12J 112m3/h 45m 58% 4.6 60HZ
TRSB6×5-11J 30KW 120m3/h 21m 62% 2.5 50HZ
TRSB5×4-12J 112m3/h 37m 57% 4.6 60HZ
TRSB5×4-12J 22KW 90m3/h 30m 56% 4.5 50HZ
TRSB5×4-10J 105m3/h 30m 57% 4.2 60HZ
TRSB5x4-11J 18.5KW 90m3/h 24m 56% 4.5 50HZ
TRSB4x3-12J 55m3/h 46m 48% 4 60HZ
TRSB4x3-13J 15KW 50m3/h 40m 48% 4.5 50HZ
TRSB4x3-11J 54m3/h 35m 47% 4 60HZ
TRSB4x3-12J 11KW 45m3/h 30m 47% 4 50HZ
TRSB3x2-12J 28m3/h 45m 40% 3.1 60HZ
TRSB3x2-12J 7.5KW 45m3/h 24m 46% 4 50HZ
TRSB3x2-11J 25m3/h 35m 41% 3.1 60HZ
TRSB3x2-11J 5.5KW 20m3/h 23m 39% 3 50HZ







Applications:


Mud mixing and shearing operations, desanding and desilting, degassing, supercharging, centrifugal feed, mud cooling towers, wash down. Others Chemical, refinery, industrial, construction and agricultural applications.



TR Solids Control is absorbed in developing our product line continuously and offering innovative solutions to our customers. Our centrifugal pump can be totally interchangeable with Mission series pump.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
