Product Details:
Payment & Shipping Terms:
|
| Flow Rate: | 30m3/h | Impeller Diameter: | 10inch |
|---|---|---|---|
| Lift: | 20m | Power: | 7.5kw |
| Electric System: | 50HZ | Ex Standard: | ExdIIBt4/IECEX/A-TEX |
| Weight: | 380 Kg | Dimension: | 1398*490*717mm |
| High Light: | Centrifugal Slurry Pump 50HZ,20m Lift Centrifugal Mud Pump,Drilling Centrifugal Slurry Pump |
||

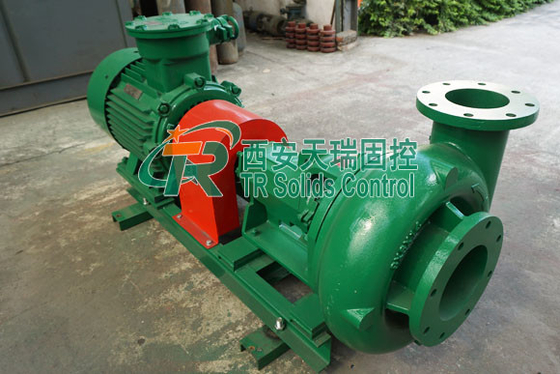

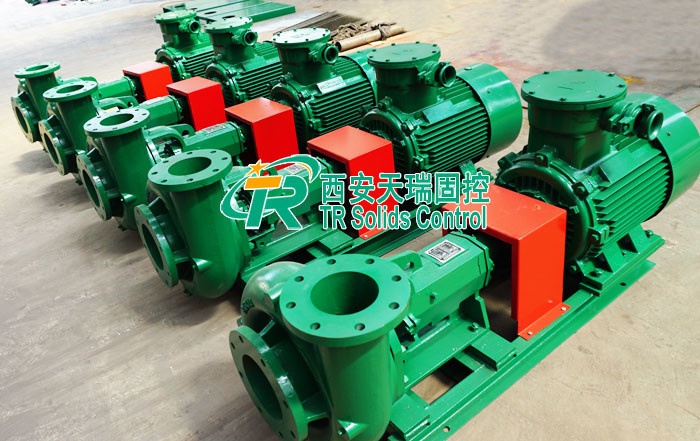

High Quality Oil and Gas Field Drilling Centrifugal Sand Pump / Centrifugal Slurry Pump
Introduction
Centrifugal pump is ideal corollary equipment to provide power for desander, desilter and jet mud mixer. It also can fill mud pump and replenish wellhead in drilling process. Most of its parts can be exchangeable. It has advantages of reliable operation, easy maintenance, little shaft seal leakage, and long service life.
TR Solids Control is a professional designer and manufacturer of centrifugal sand pump. We will provide you with the best quality centrifugal sand pump and mud after-sell service. Now it is widely used in international drilling sites, especially in Russia, USA, UAE, Australia, New Zealand. TR Centrifugal pump is used to transport fluid by conversion of rotational kinetic energy to the hydraulic energy of the fluids flow. The rotational energy typically comes from an engine or electric motor. We supply pumps driven by 10HP to 100HP, which are popular in drilling mud process. Pumps size are 3x2, 4x3, 5x4, 6x5, 8x6. They will perform differently under different power, voltage, or frequency.
Why Choose TR Centrifugal Sand Pump?
Specification of TR Centrifugal Sand Pump
| Model | Power | Flow | Lift(m) | Efficiency | NPSH | Electric |
| TRSB8×6-14J | 75KW | 320m3/h | 40m | 65% | 5 | 50HZ |
| TRSB8×6-12J | 355m3/h | 43m | 66% | 4.8 | 60HZ | |
| TRSB8×6-13J | 55KW | 290m3/h | 33m | 64% | 5.5 | 50HZ |
| TRSB6×5-12J | 196m3/h | 48m | 61% | 3 | 60HZ | |
| TRSB6×5-13J | 45KW | 180m3/h | 34m | 60% | 3 | 50HZ |
| TRSB5×4-14J | 149m3/h | 61m | 58% | 4.6 | 60HZ | |
| TRSB6×5-12J | 37KW | 160m3/h | 30m | 60% | 3 | 50HZ |
| TRSB5×4-12J | 112m3/h | 45m | 58% | 4.6 | 60HZ | |
| TRSB6×5-11J | 30KW | 120m3/h | 21m | 62% | 2.5 | 50HZ |
| TRSB5×4-12J | 112m3/h | 37m | 57% | 4.6 | 60HZ | |
| TRSB5×4-12J | 22KW | 90m3/h | 30m | 56% | 4.5 | 50HZ |
| TRSB5×4-10J | 105m3/h | 30m | 57% | 4.2 | 60HZ | |
| TRSB5x4-11J | 18.5KW | 90m3/h | 24m | 56% | 4.5 | 50HZ |
| TRSB4x3-12J | 55m3/h | 46m | 48% | 4 | 60HZ | |
| TRSB4x3-13J | 15KW | 50m3/h | 40m | 48% | 4.5 | 50HZ |
| TRSB4x3-11J | 54m3/h | 35m | 47% | 4 | 60HZ | |
| TRSB4x3-12J | 11KW | 45m3/h | 30m | 47% | 4 | 50HZ |
| TRSB3x2-12J | 28m3/h | 45m | 40% | 3.1 | 60HZ | |
| TRSB3x2-12J | 7.5KW | 45m3/h | 24m | 46% | 4 | 50HZ |
| TRSB3x2-11J | 25m3/h | 35m | 41% | 3.1 | 60HZ | |
| TRSB3x2-11J | 5.5KW | 20m3/h | 23m | 39% | 3 | 50HZ |
Our Services:
1. TR Solids Control is a professional and well-know manufacturer of centrifugal pump with more than 10 years experience.
2. Our factory has Automantic production line.
3. We have quality management system and relevant certificates.
4. 24 hours oversea service online.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
