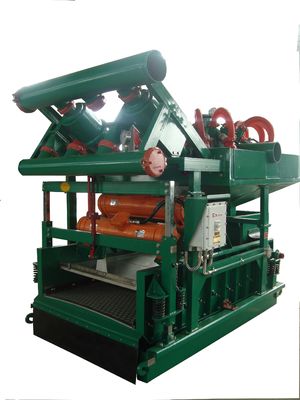

DN200mm Outlet 240M3/h Oilfield Mud Cleaning Equipment

DN200mm Outlet 240M3/h Oilfield Mud Cleaning Equipment
DN200mm Outlet 240M3/h Oilfield Mud Cleaning Equipment DN200mm Outlet 240M3/h Oilfield Mud Cleaning Equipment DN200mm Outlet 240M3/h Oilfield Mud Cleaning Equipment DN200mm Outlet 240M3/h Oilfield Mud Cleaning Equipment

Large Image :  DN200mm Outlet 240M3/h Oilfield Mud Cleaning Equipment

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Q1. ISO 9001
Model Number: TRQJ250*2S-100*12N
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 500 Sets / Month
Detailed Product Description
Capacity: 240m3/h Desander Cyclone Specs: 10"
Desander Cyclone Qty: 2nos Desilter Cyclone Specs: 4"
Desilter Qty: 12nos Inlet Size: DN150mm
Outlet Size: DN200mm Bottom Shaker: TRZS752
Weight: 1250kg Dimension: 1835*1230*1810mm
Voltage: 380 V Or 460 V Power: 2-1.865 KW
High Light:

Oilfield Mud Cleaning Equipment

,

240M3/h Mud Cleaning Equipment

,

DN200mm Mud Cleaning Equipment

Green Color Large Caracity 240M3/h Mud Cleaner for Oilfield



Product Overview



Mud Cleaner is the second or third stage separation equipment for drilling fluids, which deals with the mud being treated by the first grade separation equipment. The barite will be recovered and cuttings which are bigger than barite will be removed. Then the barite in the underflow will flow into circulation tanks through the screens when the weighted mud passes while the particles that are bigger than mesh will be removed.



The hydrocyclones(desanders and desilters) make the primary separation with underflow directed onto the shaker’s vibrating screen. Used correctly, the drilling mud cleaner lower both drilling fluid and disposal costs. In oilfield solids control process, drilling mud cleaners are very efficient for oil gas well drilling mud purification system. TRQJ Series Mud Cleaners are one of the important equipments for solids liqiud separation system.



Product Application


Mud cleaner is mainly used in city bored piling, trenchless HDD, tunneling construction, oil & gas drilling, Drilling Waste Management, Oil Sludge Dewatering Systems, Oil Mud Seperation, environment protection, Coal Bed Gas Solids Control System, mining, Water Drilling etc. Please feel free to ask us for any inquiry of mud cleaner. We would like to provide good price and excellent service.



Design Features of TRQJ Series Mud Cleaner

  1. Compact design with small footprint, with top feed and weir feed two option.
  2. Hook-strip shaker screens for fast screens changing with screens.
  3. Mechanical Deck is adjustable during operation, reliable performance.
  4. Desander cones can be installed between one and three 10" desander cones, each cone can process 500 GPM and makes a separation between 45 and 75 μm.
  5. Desilter cones can be installed between eight and twenty 4" or 5" desilter cones, each cone can process 80 GPM, and makes a separation between 15 and 45 μm.
  6. Polyurethane ( PU ) material, high-chromium cast iron or ceramic to make desander and desilter cones.

Technical Sheet of TRQJ Series Mud Cleaner



Model TRQJ200×1S-100×4N TRQJ200×2S-100×8N TRQJ250×2S-100×12N TRQJ25×3S-100×20N
Capacity 60m³/h 120m³/h 240m³/h 320m³/h
Desander Cyclone Specs 8" 10"
Desander Cyclone Qty 1 2 2 3
Desilter Cyclone Specs 4"
Desilter Cyclone Qty 4 8 12 20
Working Pressure 0.25~0.4mpa
Inlet Size DN125mm DN150mm DN150mm DN200mm
Outlet Size DN150mm DN200mm DN200mm DN250mm
Separation Point 15μm~44μm
Bottom Shaker TRZS60 TRZS752 TRZS752 TRZS703
Dimension 1.51×1.16×2.0m 1.835×1.23×1.81m 1.835×1.23×1.81m 2.42×2.15×2.15m
Weight 600kg 980kg 1250kg 2350 kg
Remark All mud cleaners could be customized without bottom shaker.



DN200mm Outlet 240M3/h Oilfield Mud Cleaning Equipment 0



Our Services


I. Equipment arrived at the scene, by my company to send technical personnel and service personnel arrived at the scene, the installation of equipment debugging and technical training.
II. Equipment from the date of acceptance, the warranty period of one year, the warranty period, equipment problems, we respond within 12 hours, if necessary, our service staff received a notice within 5 days (international) to reach the scene, the two sides Technical analysis, a product quality problems, we are responsible for free repair or replacement, more than the warranty period, we provide technical services and spare parts supply.
III. After the device is running, we will conduct a telephone tracking service, and regular user visits.


TR Solids Control is a professional manufacturer of mud solids control equipment and drilling waste treatment systems integrating product development, production and sales. The products are widely used in oil and natural gas drilling, coalbed methane drilling, geothermal drilling, trenchless horizontal directional crossing, pipe jacking, shield tunneling, piling and other projects, tailings treatment, river dredging and other fields. If you want more information, please contact us!
