| Flow Rate: | 90m3/h | Lift: | 30m |
|---|---|---|---|
| Impeller Diameter: | 10inch | Power: | 22kw |
| Electric System: | 60HZ | Ex Standard: | ExdIIBt4/IECEX/A-TEX |
| Weight: | 583kg | Dimension: | 1648*568*800mm |
| Highlight: | industrial centrifugal pumps,horizontal centrifugal pump |
||

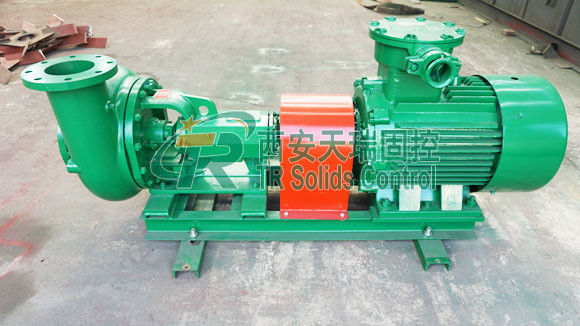

China Oil and Industry Drilling Mission Centrifugal Slurry Pump for Sale
Product Introduction
Currently TR centrifugal pump is widely used in the whole drilling mud system through complete solids control system, it is used as trip pump, desander pump, Desilter pump, mixing pump, charging pump, and so on. TR Solids Control could provide complete line centrifugal pumps used in drilling mud system.
TR Solid Control is a manufacturer of centrifugal pump. Our pump has API certificate. We supply top-quality centrifugal pump and best service. Our centrifugal pump is with excellent performance, high traffic, high temperature, long service life, easy maintenance, high reliability and remarkable energy saving characteristics. Now it is widely used around the world on onshore and offshore drilling site. We will provide customers with the best pumps to meet different requirements.
How to select a high efficient centrifugal pump?
Specifications of Centrifugal Pump
| Model | Power | Flow | Lift(m) | Efficiency | NPSH | Electric |
| TRSB8×6-14J | 75KW | 320m3/h | 40m | 65% | 5 | 50HZ |
| TRSB8×6-12J | 355m3/h | 43m | 66% | 4.8 | 60HZ | |
| TRSB8×6-13J | 55KW | 290m3/h | 33m | 64% | 5.5 | 50HZ |
| TRSB6×5-12J | 196m3/h | 48m | 61% | 3 | 60HZ | |
| TRSB6×5-13J | 45KW | 180m3/h | 34m | 60% | 3 | 50HZ |
| TRSB5×4-14J | 149m3/h | 61m | 58% | 4.6 | 60HZ | |
| TRSB6×5-12J | 37KW | 160m3/h | 30m | 60% | 3 | 50HZ |
| TRSB5×4-12J | 112m3/h | 45m | 58% | 4.6 | 60HZ | |
| TRSB6×5-11J | 30KW | 120m3/h | 21m | 62% | 2.5 | 50HZ |
| TRSB5×4-12J | 112m3/h | 37m | 57% | 4.6 | 60HZ | |
| TRSB5×4-12J | 22KW | 90m3/h | 30m | 56% | 4.5 | 50HZ |
| TRSB5×4-10J | 105m3/h | 30m | 57% | 4.2 | 60HZ | |
| TRSB5x4-11J | 18.5KW | 90m3/h | 24m | 56% | 4.5 | 50HZ |
| TRSB4x3-12J | 55m3/h | 46m | 48% | 4 | 60HZ | |
| TRSB4x3-13J | 15KW | 50m3/h | 40m | 48% | 4.5 | 50HZ |
| TRSB4x3-11J | 54m3/h | 35m | 47% | 4 | 60HZ | |
| TRSB4x3-12J | 11KW | 45m3/h | 30m | 47% | 4 | 50HZ |
| TRSB3x2-12J | 28m3/h | 45m | 40% | 3.1 | 60HZ | |
| TRSB3x2-12J | 7.5KW | 45m3/h | 24m | 46% | 4 | 50HZ |
| TRSB3x2-11J | 25m3/h | 35m | 41% | 3.1 | 60HZ | |
| TRSB3x2-11J | 5.5KW | 20m3/h | 23m | 39% | 3 | 50HZ |
Over 10000 sets of centrifugal pump are widely used in overseas market including United States (Nabors), Russia South America, Middle Asia and Middle East. 4 patents given to the SB series centrifugal pumps including special mechanical seal technology ensures long service life, no leaking within more than 1 year. Special designed impeller improves the centrifugal pumps' efficiency and energy-saving by 10%.
Package &Shipment
TRSB series centrifugal pump is placed well covered with plastic sheet inside, and standard exporting wood cases outside. We make sure the wood case is strong enough and the pump is bolted inside tightly.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
