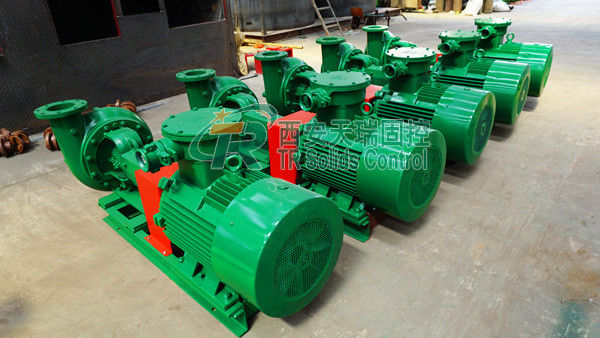

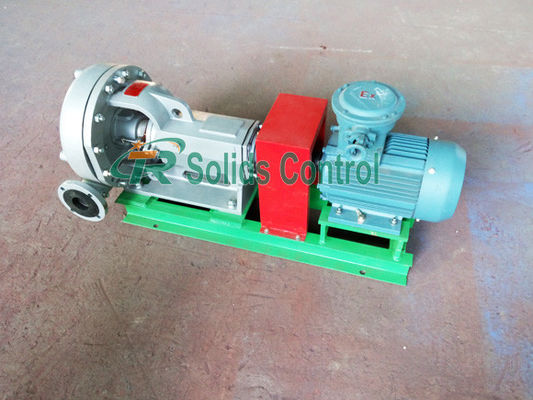

API Standard Centrifugal Mud Pump 13 Inch Impeller Diameter 1811 * 558 * 858mm

API Standard Centrifugal Mud Pump 13 Inch Impeller Diameter 1811 * 558 * 858mm
API Standard Centrifugal Mud Pump 13 Inch Impeller Diameter 1811 * 558 * 858mm
video play

Large Image :  API Standard Centrifugal Mud Pump 13 Inch Impeller Diameter 1811 * 558 * 858mm

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certified
Model Number: TRSB6*5-13J
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case or pallet
Delivery Time: 15 days after receiving 30% deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 50000 Sets / Month
Detailed Product Description
Flow Rate: 200m3/h Lift: 35m
Impeller Diameter: 13 Inch Power: 45kw
Electric System: 50HZ Ex Standard: ExdIIBt4/IECEX/A-TEX
Weight: 786kg Dimension: 1811*558*858mm
High Light:

industrial centrifugal pumps

,

horizontal centrifugal pump

API Standard Petroleum Drilling Fluid Centrifugal Sand Pump , Centrifugal Pump



Brief Introduction



TRSB series Centrifugal Pump is used for transferring slurry or mud or water. It can be used as feeding pump for desander and desilter, or used as mixing pump for jet mud mixer. Centrifugal Pump is also called as Sand Pump, Mixing Pump, Feeding Pump, Replenishing Pump and Filling Pump. It is the ideal matching equipment to provide impetus for desander, desilter and Jet mud mixer. Centrifugal pump can also be an assistant mud infusion pump and trip pump at well head. Our centrifugal pump can realize the quick positioning.



Our centrifugal pumps have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.



Characterstics of TR Drilling Centrifugal Pump:

  1. Thicker pump shell.
  2. Pump shell using alloy gray iron, longer life.
  3. High anti-corrosive alloy material mechanical seal. More durable,longer service life.
  4. Bearings are imported SKF. High quality.
  5. Bearing lubrication can be oil and grease. Make bearing more adaptable and long life.
  6. Selection of alloy cast iron impeller, greater resistance to corrosion.
  7.  Interchangeable with international brands.



Parameters of Drilling Centrifugal Pump



Model Power Flow Lift(m) Efficiency NPSH Electric
TRSB8×6-14J 75KW 320m3/h 40m 65% 5 50HZ
TRSB8×6-12J 355m3/h 43m 66% 4.8 60HZ
TRSB8×6-13J 55KW 290m3/h 33m 64% 5.5 50HZ
TRSB6×5-12J 196m3/h 48m 61% 3 60HZ
TRSB6×5-13J 45KW 180m3/h 34m 60% 3 50HZ
TRSB5×4-14J 149m3/h 61m 58% 4.6 60HZ
TRSB6×5-12J 37KW 160m3/h 30m 60% 3 50HZ
TRSB5×4-12J 112m3/h 45m 58% 4.6 60HZ
TRSB6×5-11J 30KW 120m3/h 21m 62% 2.5 50HZ
TRSB5×4-12J 112m3/h 37m 57% 4.6 60HZ
TRSB5×4-12J 22KW 90m3/h 30m 56% 4.5 50HZ
TRSB5×4-10J 105m3/h 30m 57% 4.2 60HZ
TRSB5x4-11J 18.5KW 90m3/h 24m 56% 4.5 50HZ
TRSB4x3-12J 55m3/h 46m 48% 4 60HZ
TRSB4x3-13J 15KW 50m3/h 40m 48% 4.5 50HZ
TRSB4x3-11J 54m3/h 35m 47% 4 60HZ
TRSB4x3-12J 11KW 45m3/h 30m 47% 4 50HZ
TRSB3x2-12J 28m3/h 45m 40% 3.1 60HZ
TRSB3x2-12J 7.5KW 45m3/h 24m 46% 4 50HZ
TRSB3x2-11J 25m3/h 35m 41% 3.1 60HZ
TRSB3x2-11J 5.5KW 20m3/h 23m 39% 3 50HZ



API Standard Centrifugal Mud Pump 13 Inch Impeller Diameter 1811 * 558 * 858mm 0



Our Services:


1. We are a professional and well-know manufacturer of centrifugal pump with more than 10 years experience.
2. Our factory has Automantic production line.
3. We have quality management system and relevant certificates.
4. 24 hours oversea service online.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
