Product Details:
Payment & Shipping Terms:
|
| Capacity: | 320m3/h | Desander Cyclone Specs: | 10" |
|---|---|---|---|
| Desander Cyclone Qty: | 3nos | Desilter Cyclone Specs: | 4" |
| Desilter Qty: | 20nos | Working Pressure: | 0.25-0.4Mpa |
| Inlet Size: | DN200mm | Outlet Size: | DN250mm |
| Separation Point: | 15-44um | Bottom Shaker: | TRZS703/N/A |
| Weight: | 2350kg | Dimension: | 2419*2150*2147mm |
| High Light: | mud control equipment,mud cleaner |
||

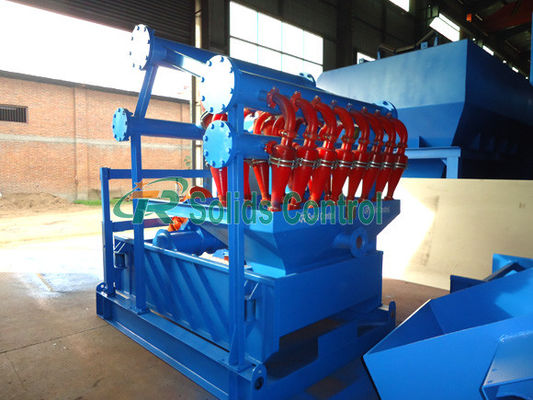

Oilfield Mud Cleaner Manufacturer from China , High Quality Drilling Mud Cleaner
Introduction
Drilling mud cleaner is the second or third stage separation equipment for drilling fluids, which deals with the mud being treated by the first grade separation equipment. The barite will be recovered and cuttings which are bigger than barite will be removed. Then the barite in the underflow will flow into circulation tanks through the screens when the weighted mud passes while the particles that are bigger than mesh will be removed.
High effective mud cleaner is the second or third stage separation equipment of drilling liquid, which will handle the solids particle after being treated by the first grade separation equipment. The mud will be recovered and cuttings which are bigger than mud will be removed. Then the cuttings in the underflow will flow into circulation tanks through the screens when the weighted mud passes while the particles that are bigger than mesh will be removed.
Main Benefits of Our Mud Cleaner:
Specifications of TRQJ Series Mud Cleaner
| Model | TRQJ200×1S-100×4N | TRQJ200×2S-100×8N | TRQJ250×2S-100×12N | TRQJ25×3S-100×20N |
| Capacity | 60m³/h | 120m³/h | 240m³/h | 320m³/h |
| Desander Cyclone Specs | 8" | 10" | ||
| Desander Cyclone Qty | 1 | 2 | 2 | 3 |
| Desilter Cyclone Specs | 4" | |||
| Desilter Cyclone Qty | 4 | 8 | 12 | 20 |
| Working Pressure | 0.25～0.4mpa | |||
| Inlet Size | DN125mm | DN150mm | DN150mm | DN200mm |
| Outlet Size | DN150mm | DN200mm | DN200mm | DN250mm |
| Separation Point | 15μm～44μm | |||
| Bottom Shaker | TRZS60 | TRZS752 | TRZS752 | TRZS703 |
| Dimension | 1.51×1.16×2.0m | 1.835×1.23×1.81m | 1.835×1.23×1.81m | 2.42×2.15×2.15m |
| Weight | 600kg | 980kg | 1250kg | 2350 kg |
| Remark | All mud cleaners could be customized without bottom shaker. | |||
Main Application
TRQJ series mud cleaner is widely used in tunneling construction, oil & gas drilling, trenchless HDD, city bored piling, Drilling Waste Management, Oil Mud Seperation, Coal Bed Gas Solids Control System, environment protection, mining, Oil Sludge Dewatering Systems, Water Drilling etc. Welcome your inquiry at any time!
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
