Product Details:
Payment & Shipping Terms:
|
| Key Words: | Mission Centrifugal Pump For Hot Sale | Flow Rate: | 120m3/h |
|---|---|---|---|
| Lift: | 35m | Impeller Diameter: | 13inch |
| Power: | 30kw | Electric System: | 50HZ |
| Ex Standard: | ExdIIBt4/IECEX/A-TEX | Weight: | 696kg |
| Dimension: | 1696*568*805mm | Color: | Green |
| High Light: | horizontal centrifugal pump,industrial centrifugal pumps |
||
Mission Centrifugal Pump Spare Parts for Sale , Drilling Fluid Mission Pump With Ex-Stock
Introduction
Centrifugal Pump is designed for transferring drilling fluid or industrial suspension slurry. TR centrifugal pump is with excellent performance, high traffic, high temperature, long service life, easy maintenance, high reliability and remarkable energy saving characteristics. It can be totally replaceable with brand Mission centrifugal pump. Nowadays spare parts of our centrifugal pump are popular by customers. More and more contact with us for inquiries or orders.

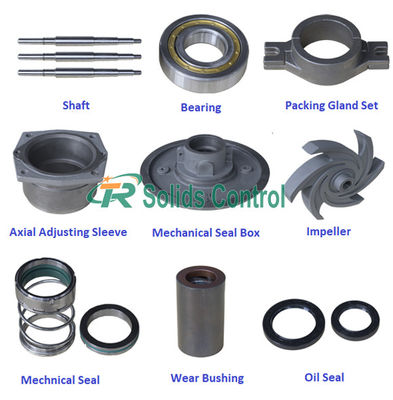

Features of main spare parts of TR centrifugal pump:
The open vane structure impeller reduces the shaft load to minimum, more suitable for transferring high density and high viscosity mud.
The vane profile complying with the hydraulic principle,
increase the output and efficiency. Utilizing wear-resistant materials for the key parts to prolong the service life.
Axial adjustment structure makes it free to adjust the clearance between impeller and mechanical seal, ensuring equipment operation more reliable.
A variety of pump casing and impeller can meet different requirements of the customers.
The same power frame reduces the spare parts.
Technical Data of TRSB Series Drilling Centrifugal Pump
| Model | Power | Flow | Lift(m) | Efficiency | NPSH | Electric |
| TRSB8×6-14J | 75KW | 320m3/h | 40m | 65% | 5 | 50HZ |
| TRSB8×6-12J | 355m3/h | 43m | 66% | 4.8 | 60HZ | |
| TRSB8×6-13J | 55KW | 290m3/h | 33m | 64% | 5.5 | 50HZ |
| TRSB6×5-12J | 196m3/h | 48m | 61% | 3 | 60HZ | |
| TRSB6×5-13J | 45KW | 180m3/h | 34m | 60% | 3 | 50HZ |
| TRSB5×4-14J | 149m3/h | 61m | 58% | 4.6 | 60HZ | |
| TRSB6×5-12J | 37KW | 160m3/h | 30m | 60% | 3 | 50HZ |
| TRSB5×4-12J | 112m3/h | 45m | 58% | 4.6 | 60HZ | |
| TRSB6×5-11J | 30KW | 120m3/h | 21m | 62% | 2.5 | 50HZ |
| TRSB5×4-12J | 112m3/h | 37m | 57% | 4.6 | 60HZ | |
| TRSB5×4-12J | 22KW | 90m3/h | 30m | 56% | 4.5 | 50HZ |
| TRSB5×4-10J | 105m3/h | 30m | 57% | 4.2 | 60HZ | |
| TRSB5x4-11J | 18.5KW | 90m3/h | 24m | 56% | 4.5 | 50HZ |
| TRSB4x3-12J | 55m3/h | 46m | 48% | 4 | 60HZ | |
| TRSB4x3-13J | 15KW | 50m3/h | 40m | 48% | 4.5 | 50HZ |
| TRSB4x3-11J | 54m3/h | 35m | 47% | 4 | 60HZ | |
| TRSB4x3-12J | 11KW | 45m3/h | 30m | 47% | 4 | 50HZ |
| TRSB3x2-12J | 28m3/h | 45m | 40% | 3.1 | 60HZ | |
| TRSB3x2-12J | 7.5KW | 45m3/h | 24m | 46% | 4 | 50HZ |
| TRSB3x2-11J | 25m3/h | 35m | 41% | 3.1 | 60HZ | |
| TRSB3x2-11J | 5.5KW | 20m3/h | 23m | 39% | 3 | 50HZ |
If you are searching good price spare parts which can be replaceable with Mission centrifugal pump, TR Solids Control is your good choice. Our pump spares have short delivery and high quality. Once you have any new requirement about this, we are welcome your inquiry! Welcome friends from all over the world to come to visit our factory and guidance our work.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
