Product Details:
Payment & Shipping Terms:
|
| Model: | TRCD930C | Capacity: | 30-50T/h |
|---|---|---|---|
| Basket Max. Diameter: | 930mm | Basket Gap: | 0.25~0.5mm |
| Rotary Speed: | 900r/min | Air Knife Airlnlet Pressure: | 0.69mpa |

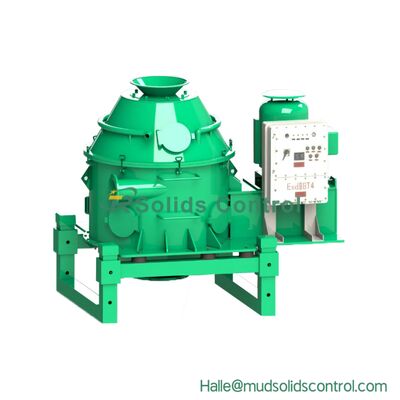

Vertical Cuttings Dryer: High-Efficiency Oil Recovery & Drilling Waste Reduction Solution
The TR Vertical Cuttings Dryer is engineered to effectively separate liquids from drilling cuttings, achieving low residual oil-on-cuttings while maximizing valuable drilling fluid recovery. Using high-speed centrifugal force and a vertical basket design, the VCD delivers continuous, reliable operation for oil-based and synthetic-based mud systems. Its compact footprint and robust construction make it an essential component in modern drilling waste management solutions.
Advantages
Excellent Oil Recovery Performance:High-speed rotating basket generates strong centrifugal force, efficiently removing liquid from drilled cuttings and reducing ROC to regulatory-compliant levels.
Continuous & Stable Operation:Designed for nonstop processing of cuttings from shale shakers and centrifuges without interrupting drilling operations.
Rugged, Wear-Resistant Construction:Key components are manufactured from high-grade alloy steel with hardfacing and wear protection to withstand abrasive solids.
Safe & Enclosed Design:Fully enclosed structure with vibration monitoring and interlock protection enhances operational safety and environmental compliance.
Technical Specifications
| Model | TRCD930C | TRCD930B-VFD |
| Capacity | 30-50T/h | 30-50T/h |
| Basket Max. Diameter | 930mm | 930mm |
| Basket Gap | 0.25~0.5mm | 0.25~0.5mm |
| Rotary Speed | 900r/min | 0~900r/min |
| Air knife Airlnlet Pressure | 0.69mpa | 0.69mpa |
| Air Tool Air Supply | 1,8m³/min | 1,8m³/min |
| Fuel Tank Volume | 60L | 60L |
| Main Motor Power(kw) | 55kw | 55kw |
| Oil Pump Power(kw) | 0.55kw | 0.55kw |
| Weight | 5900kg | 6000kg |
Applications
Oil-Based & Synthetic-Based Mud Systems:Reduces oil content in cuttings while recovering expensive drilling fluids.
Offshore & Onshore Drilling Rigs:Suitable for space-limited platforms and continuous drilling operations.
Drilling Waste Management Systems:Works in combination with decanter centrifuges and cuttings transfer equipment.
Environmental Compliance Projects:Helps operators meet environmental regulations for discharge and disposal.
Why Choose the TR Vertical Cuttings Dryer?
Lower Waste Disposal Costs:Reduced oil-on-cuttings means lower transport and disposal expenses.
Maximum Fluid Recovery:Recovers reusable drilling fluid, improving overall mud system economics.
Reliable Performance in Harsh Conditions:Designed for long-term operation under high solids load and vibration.
Integrated TR System Compatibility:Seamlessly integrates with TR solids-control and waste-management equipment.
