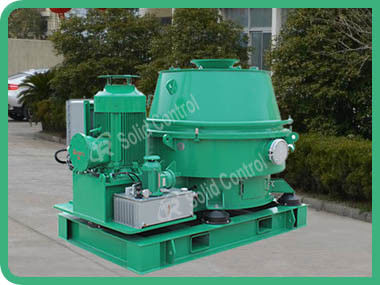

Large Capacity Drilling Cutting Dryer 0.69MPa Air Inlet Pressure For Oil Based Mud

Large Capacity Drilling Cutting Dryer 0.69MPa Air Inlet Pressure For Oil Based Mud
Large Capacity Drilling Cutting Dryer 0.69MPa Air Inlet Pressure For Oil Based Mud Large Capacity Drilling Cutting Dryer 0.69MPa Air Inlet Pressure For Oil Based Mud Large Capacity Drilling Cutting Dryer 0.69MPa Air Inlet Pressure For Oil Based Mud

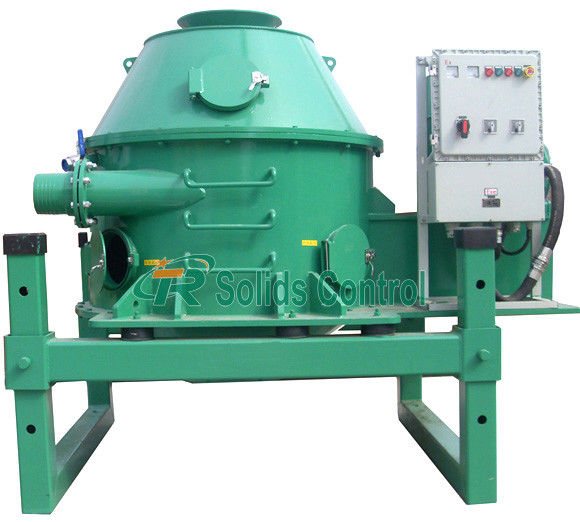

Large Image :  Large Capacity Drilling Cutting Dryer 0.69MPa Air Inlet Pressure For Oil Based Mud

Product Details:

Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRCD930B-VFD

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 30 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 1000 Sets Per Month
Detailed Product Description
Capacity: 30-50T/h Basket Diameter: 930mm
Basket Gap: 0.25-0.5mm Rotary Speed: 0-900r/min
Air Inlet Pressure: 0.69MPa Air Tool Air Supply: 1.8m3/min
Fuel Tank Volume: 60L Main Motor Power: 55kw
Oil Pump Power: 0.55kw Dimension: 2750*2130*1800mm
High Light:

vertical dryer

,

vertical drying range machine

Large Capacity Drilling Vertical Cuttings Dryer Mainly for Oil Based Mud

Product Introduction

Mud vertical cutting dryer is a kind of drying machine for treating slurry in oilfield. It can be called vertical centrifuge from its structure. It is characterized by advanced design, efficient treatment and long service time. Vertical cutting dryer belongs to environmental equipment among oilfield mud solids control equipment. TR Solids Control can supply two kinds of vertical cutting dryer--fixed frequency & variable frequency.



Vertical cutting dryer is used to do further separation for cuttings to recover valuable drilling fluids, dry solids discharge, clean return fluid and reduce mud loss. Drilling cuttings discharged by shale shaker, desander, desilters (or mud cleaner) can be fed into the dryer’s hopper and spaced widely to the inner screens. In this process we could achieve drying and separating efficiency.

Main Applications

TR vertical cutting dryer is currently used in Drilling Waste Management, Coal Bed Gas Solids Control System, Oil Sludge Dewatering Systems, Oil and Gas Drilling,  Trenchless HDD & Tunnelling, Oil Mud Seperation, Bored Pile. Our vertical cutting dryers have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc.

Advantages of TR Vertical Cutting Dryer

  • Assembled with air knife, making it prevent basket from blocking;
  • Advanced design and efficient capacity.
  • Every changeable selected parts pass dynamic balance test, meeting the balance of the complete machine;
  • Discharging scraper is made from high chromium cast iron, with long service time;
  • The highest rotary speed is 900 rpm. It could form 420 G separation factor, and separates the fluid in drilling waste effectively;
  • Independent oil cooling system, matched with scientific oil tank cooling system, making it meet operating requirement in high temperature environment.



Technical Data of TRCD Series Vertical Cutting Dryer


Model TRCD930C TRCD930B-VFD
Capacity(T/h) 30-50T/h
Basket Max.Diameter 930mm
Basket Gap 0.25-0.5mm
Rotary Speed 900 r/min 0-900 r/min
Air knife Air Inlet Pressure 0.69Mpa
Air Tool Air Supply 1.8m3/min
Fuel Tank Volume 60L
Main Motor Power(Kw) 55Kw
Oil Pump Power(Kw) 0.55Kw
Weight 5900kg 6000kg
Dimension 2750*2130*1800mm

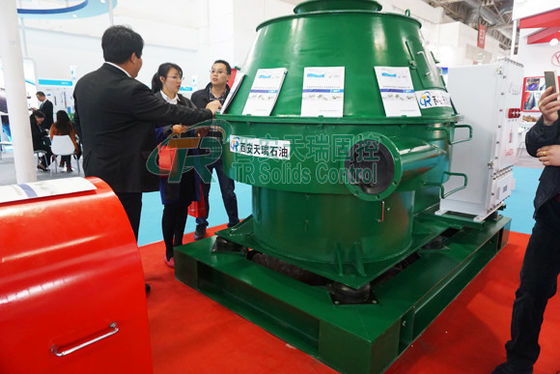

Large Capacity Drilling Cutting Dryer 0.69MPa Air Inlet Pressure For Oil Based Mud 0

Competitive Advantages


1. We offer high quality products at competitive price.
2. S
hortest delivery time
.
3. Flexible payment terms.

4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
