7.5kw Mud Agitator With 4 Impellers 400rpm For Drilling Rigs

China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
Professional solids control manufacturer. Their Product replacement shaker screens have long service time and good treatment. They help us a lot!

—— Mr. Samir

I purchased 10 pcs TRSB8*6-12J centrifugal pump from TR Solids Control. They are good-looking and really have good quality and considerate after sales service!

—— Mr. Warren

We ordered a set of mud system for our oilfield drilling field, TR product showed good performance in the site. We like that very much!

—— Diego Olbrich

TR shaker screens have top quality and good price. We have been purchasing them from TR for more than 4 years.

—— Nghiem Thic Hai

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Hossein Jafari

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Ms. Crina

We start use TRZS703 Shale Shaker since 2012, now we have 8 sets working in our customer's oilfield site, perfect machine with reasonable price.

—— S. A. Kazi

I'm Online Chat Now

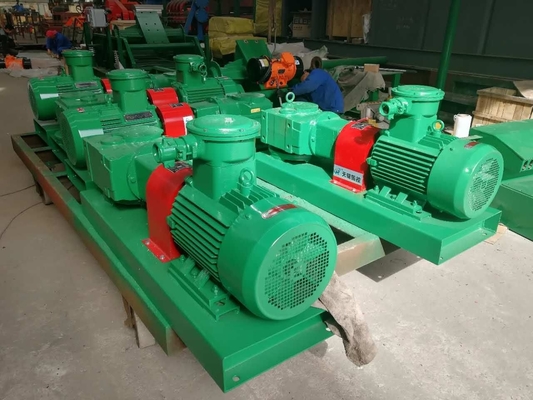

7.5kw Mud Agitator With 4 Impellers 400rpm For Drilling Rigs

7.5kw Mud Agitator With 4 Impellers 400rpm For Drilling Rigs
7.5kw Mud Agitator With 4 Impellers 400rpm For Drilling Rigs
video play

Large Image :  7.5kw Mud Agitator With 4 Impellers 400rpm For Drilling Rigs

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRJBQ7.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wooden or iron case
Delivery Time: 10 days after receiving deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 100 Sets / Month
Detailed Product Description
Motor Power: 7.5kw Impeller Speed: 60/72 R/min
Impeller Diameter: 650mm Impeller Qty: 2pcs
Ex Standard: ExdIIBt4/IECEX/A-TEX Dimension: 1157*670*607mm
Weight: 380kg Key Words: High Quality 7.5kw Mud Agitator For Well Drilling Fluid Mixing System, With Excellent Performance And Long Service Time
High Light:

4 Impellers Drilling Mud Agitator

,

7.5kw Mud Agitator

,

Drilling Rigs Mud Agitator

7.5kw Drilling Rigs Skid-Mounted Mud Agitator for Solids Control System



Introduction



The Drilling Mud Agitator is a crucial component of drilling fluid solids control equipment. Its primary function is to agitate and blend the drilling mud, preventing solid particles from settling in the circulating tank and ensuring stable performance of the drilling fluid. The agitator consists of an explosion-proof motor, speed reducer, motor base, and blade. The motor and speed reducer are connected via a steel coupling, while the speed reducer and impeller shaft are linked together. The impeller is welded with four blades.

The significance of the Drilling Fluid Mud Agitator lies in its ability to maintain the uniformity of the drilling fluid and suspend solid particles for continuous and reliable mixing. The use of a worm single-stage reducer in the reducer design ensures compactness, lightweight, transmission balance, low noise levels, high transmission efficiency, and excellent stirring capabilities.



Features of TRJBQ mud agitator

  1. Good heat exchange performance makes agitator faster cool down.
  2. Small size, compact structure.
  3. The gearbox use worm gear. More reliable.
  4. Running smoothly, small noise, long usage life, less wearing parts, and cost-saving.
  5. Motor and gear box will be connected by coupling directly. Agitation speed is more stable.
  6. Power available ranging from 3 to 22KW.



Key Specifications of Mud Agitator



Model Motor Power Impeller Speed Impeller Diameter Impeller Qty. Explosion-proof Standard Weight Dimension
TRJBQ3 3kw 60/72r/min 600mm 1



ExdIIBt4/IECEX/A-TEX

190kg 909×525×527mm
TRJBQ5.5 5.5kw 600mm 1 250kg 1072×610×588mm
TRJBQ7.5 7.5kw 650mm 2 380kg 1157×670×607mm
TRJBQ11 11kw 800mm 2 430kg 1297×740×692mm
TRJBQ15 15kw 950mm 2 480kg 1330×890×747mm
TRJBQ18.5 18.5kw 1000mm 2 740kg 1510×890×753mm
TRJBQ22 22kw 1100mm 2 780kg 1529×890×753mm

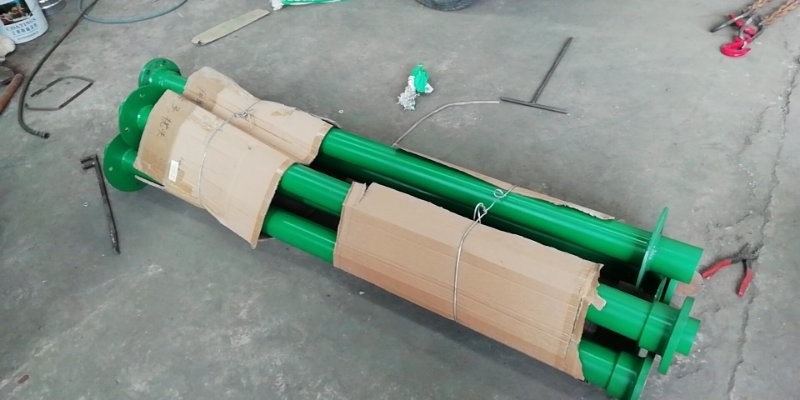

Remark Above weight and dimension exclude mud agitator shaft.



7.5kw Mud Agitator With 4 Impellers 400rpm For Drilling Rigs 0



Main Application in Drilling Solids control



TRJBQ series mud agitator is currently used in city bored piling, Drilling Waste Management,tunneling construction, oil & gas drilling, Coal Bed Gas Solids Control System, Oil Mud Seperation, trenchless HDD, micro-tunneling, mining, Oil Sludge Dewatering Systems, environment protection, Water Drilling etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, service and reasonable prices. To provide customers with a full set of solid-control equipment solutions effectively is our company's goal.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
