Home ProductsDrilling Mud Agitator

Oilfield Drilling Mud Agitator Reducer And Explosion Proof Motor Agitation Strength

China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
Professional solids control manufacturer. Their Product replacement shaker screens have long service time and good treatment. They help us a lot!

—— Mr. Samir

I purchased 10 pcs TRSB8*6-12J centrifugal pump from TR Solids Control. They are good-looking and really have good quality and considerate after sales service!

—— Mr. Warren

We ordered a set of mud system for our oilfield drilling field, TR product showed good performance in the site. We like that very much!

—— Diego Olbrich

TR shaker screens have top quality and good price. We have been purchasing them from TR for more than 4 years.

—— Nghiem Thic Hai

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Hossein Jafari

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Ms. Crina

We start use TRZS703 Shale Shaker since 2012, now we have 8 sets working in our customer's oilfield site, perfect machine with reasonable price.

—— S. A. Kazi

I'm Online Chat Now

Oilfield Drilling Mud Agitator Reducer And Explosion Proof Motor Agitation Strength

Oilfield Drilling Mud Agitator Reducer And Explosion Proof Motor Agitation Strength
Oilfield Drilling Mud Agitator Reducer And Explosion Proof Motor Agitation Strength
video play

Large Image :  Oilfield Drilling Mud Agitator Reducer And Explosion Proof Motor Agitation Strength

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRJBQ7.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pc
Price: Negotiable
Packaging Details: Wooden or iron case
Delivery Time: 10 days after receiving deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 50 Sets / Month
Detailed Product Description
Motor Power: 7.5kw Impeller Speed: 60/72r/min
Impeller Diameter: 650mm Impeller Qty: 2pcs
Ex Standard: ExdIIBt4/IECEX/A-TEX Dimension: 1157*670*607mm
Weight: 380kg Key Words: High Quality 7.5kw Mud Agitator For Well Drilling Fluid Mixing System, With Excellent Performance And Long Service Time
Highlight:

7.5kw Drilling Agitator Equipment

,

Explosion Proof Motor Mud Agitator

,

Oilfield Drilling Mud Agitator

Oilfield Drilling Mud Agitator Drilling Fluid Mixing Equipment for Solids Control Us

Introduction

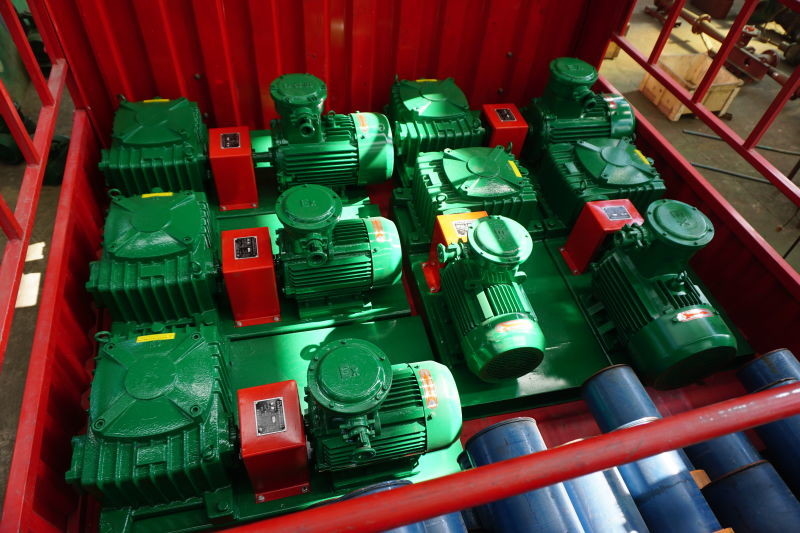

Mud agitator is a kind of solids control equipment combined of reducer and explosion-proof motor. It’s easy to maintain, and suitable for use in the field of harsh conditions. Mud agitator has a large agitation strength, wide spread, and can reduce starting torque.



The cuttings are a major component of the harmful solid phase. To remove the harmful solid phase, they must be suspended, and then injected into the desander, desilter and centrifuge can be achieved. Useful solid phases, such as various aggravating materials (hematite powder, barite powder) and small amount of bentonite, they also need to be suspended evenly to keep stable density and other properties of the drilling fluid. Therefore, mud agitator is required to reliably and continuously operate to avoid precipitation of the solid phase.


Main specialties of TRJBQ series mud agitator


  1. The gearbox adopt more reliable worm gear.
  2. Small size, compact structure.
  3. Long  lifespan, less wearing parts, and cost-effective.
  4. Good heat exchange performance makes agitator faster cool down.​
  5. Motor and gear box will be connected by coupling directly. Agitation speed is more stable.
  6. Using high-pressure airless spraying equipment construction, after primer, intermediate coat, finishing coat and other processes to achieve beautiful appearance and antiseptic effect.



Technical Data of TRJBQ Series Mud Agitator


Model Motor Power Impeller Speed Impeller Diameter Impeller Qty. Explosion-proof Standard Weight Dimension
TRJBQ3 3kw 60/72r/min 600mm 1



ExdIIBt4/IECEX/A-TEX

190kg 909×525×527mm
TRJBQ5.5 5.5kw 600mm 1 250kg 1072×610×588mm
TRJBQ7.5 7.5kw 650mm 2 380kg 1157×670×607mm
TRJBQ11 11kw 800mm 2 430kg 1297×740×692mm
TRJBQ15 15kw 950mm 2 480kg 1330×890×747mm
TRJBQ18.5 18.5kw 1000mm 2 740kg 1510×890×753mm
TRJBQ22 22kw 1100mm 2 780kg 1529×890×753mm
Remark Above weight and dimension exclude mud agitator shaft.



Oilfield Drilling Mud Agitator Reducer And Explosion Proof Motor Agitation Strength 0



TRJBQ series mud agitator has reasonable price and superior quality. Besides, our shale shaker, mud cleaner, vacuum degasser, centrifugal pump and shaker screens are popular among clients. Welcome your inquiry at any time!



Application in Drilling Solids control



TRJBQ series mud agitator is currently used in tunneling constructionoil & gas drillingcity bored pilingDrilling Waste Management, Coal Bed Gas Solids Control System, trenchless HDD, micro-tunneling, Oil Mud Seperation, mining, Oil Sludge Dewatering Systems, environment protection, Water Drilling etc.



Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
