TRZS752/N/A Bottom Shaker Desilter Hydrocyclone 6nos / 8nos 0.25 - 0.4mpa

TRZS752/N/A Bottom Shaker Desilter Hydrocyclone 6nos / 8nos 0.25 - 0.4mpa
TRZS752/N/A Bottom Shaker Desilter Hydrocyclone 6nos / 8nos 0.25 - 0.4mpa TRZS752/N/A Bottom Shaker Desilter Hydrocyclone 6nos / 8nos 0.25 - 0.4mpa

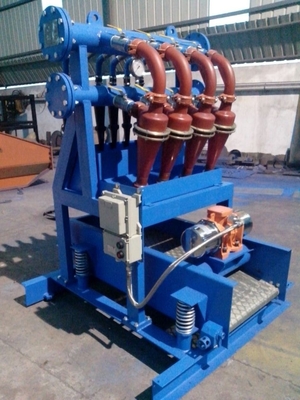

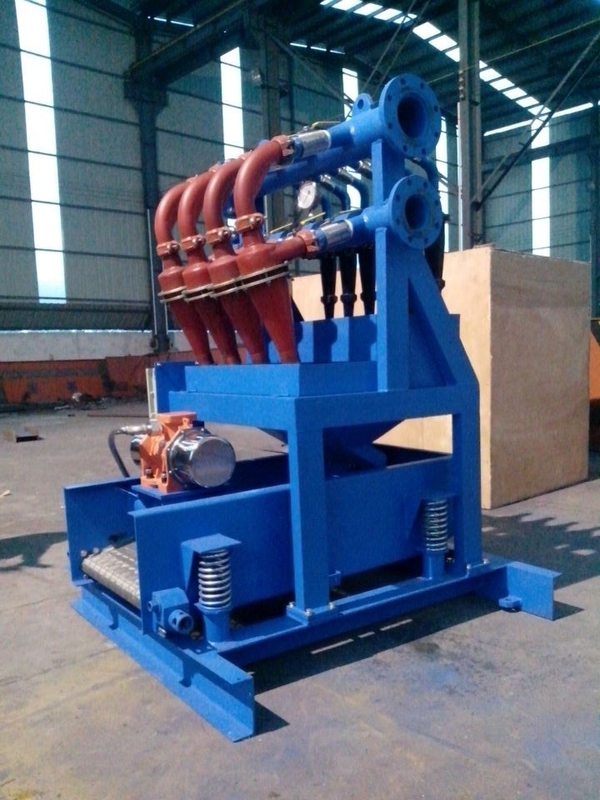

Large Image :  TRZS752/N/A Bottom Shaker Desilter Hydrocyclone 6nos / 8nos 0.25 - 0.4mpa

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: ISO9001:2008
Model Number: TRCN100-6N
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 20 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 500 Sets / Month
Detailed Product Description
Hydrocyclone: 6nos Inlet Size: DN125mm
Separation Point: 15μm-44μm Weight: 560kg
Capacity: 90m3/h Working Pressure: 0.25-0.4Mpa
Outlet Size: DN150mm Bottom Shaker: TRZS60/N/A
Dimension: 1510*1360*2250mm
High Light:

Bottom Shaker Hydrocyclone Desander

,

6 Nos Desilter Hydrocyclone

,

Mud Desilter Hydrocyclone

Factory Price Mud Desilter / Oilfield Drilling Fluids Desilter / Mud Desilter for Sale



Introduction:





The desilter is composed of 10-12 sets of φ125 polyurethane hydrocyclones and small fine vibrating screens. Used to remove 20-40μm harmful solid phase in drilling fluid. The use shows that the equipment is reliable in design, reliable in operation and good in mud removal effect, and is an ideal drilling fluid control equipment.



TR mud desilter is designed according to the particle settlement theory. Separation medium—drilling fluid generates a certain pressure and velocity when passing through the centrifugal pump, and flows into the cyclone along the wall, and larger solid particles sink along the wall of the cyclone under the action of centrifugal force and gravity, discharge. The bottom orifice falls on the lower microsieve for separation. The rest of the medium spirals up along the hydrocyclone and flows from the overflow hole into the fourth-stage separation equipment—the centrifuge for further cleaning.

Key Advantages of Our Mud Desilter:

  1. Heat treatment on entire deck.
  2. Painting: Heavy anti-corrosion paint.
  3. International famous brand vibration motor with Martin or OLI.
  4. Inlet and outlet adopt fast joint connection.
  5. High strength compound rubber material used to reduce shocking.
  6. Electrinic control system from famous brand explosion-proof eletronic switch.
  7. Cyclones with high wearing-resisting polyurethane and high-chromium iron.

Specifications of Our Drilling Desilter



Model TRCN100-4N TRCN100-6N/8N TRCN100-12N/16N TRCN100-20N
Capacity 60m3 90m3/120m3 180m3/240m3 300m3
Cyclone Specs 4”
Cyclone Qty 4 pcs 6pcs/8pcs 12pcs/16pcs 20pcs
Working Pressure 0.25-0.4Mpa
Inlet Size DN100mm DN125mm DN150mm DN150mm
Outlet Size DN125mm DN150mm DN200mm DN200mm
Separation Point 15μm -44μm
Bottom Shaker TRZS60 TRZS60 TRZS752 TRZS703
Dimension 1510*1160*2000mm 1510*1360*2250mm 1835*1230*1810mm 2770*1785*1810mm
Weight 550kg 560kg/580kg 1150kg 1950kg
Remark All desilter could be customized without bottom shaker.



TRZS752/N/A Bottom Shaker Desilter Hydrocyclone 6nos / 8nos 0.25 - 0.4mpa 0



Application in Drilling Solids control:



TRCM series mud desilter is currently used in oil & gas drilling, city bored piling, Drilling Waste Management, tunneling construction,  micro-tunneling, mining, environment protection, Coal Bed Gas Solids Control System, trenchless HDD, Oil Sludge Dewatering Systems, Oil Mud Seperation, Water Drilling etc. We also supply other solid control equipment like desander, shaker screens, shale shaker, mud cleaner, decanter centrifuge, jet mud mixer, desilter, vertical cutting dryer, mud gas separator etc.



Competitive Advantages:
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet:
Customer's satisfaction is the highest pursuit of TR Solids Control.
