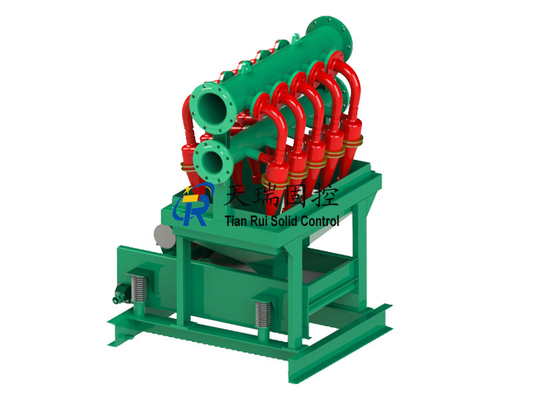

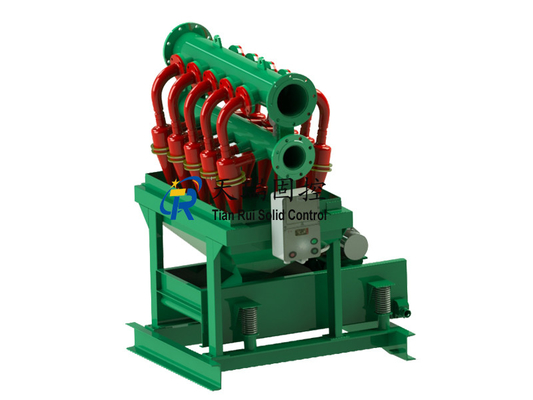

560kg Dewatering Hydrocyclone 1510*1360*2250mm 0.25 - 0.4 Mpa Working Pressure

560kg Dewatering Hydrocyclone 1510*1360*2250mm 0.25 - 0.4 Mpa Working Pressure
560kg Dewatering Hydrocyclone 1510*1360*2250mm 0.25 - 0.4 Mpa Working Pressure 560kg Dewatering Hydrocyclone 1510*1360*2250mm 0.25 - 0.4 Mpa Working Pressure

Large Image :  560kg Dewatering Hydrocyclone 1510*1360*2250mm 0.25 - 0.4 Mpa Working Pressure

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: ISO9001:2008
Model Number: TRCN100-6N
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 20 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20 Sets / Month
Detailed Product Description
Hydrocyclone: 6nos Inlet Size: DN125mm
Separation Point: 15μm-44μm Weight: 560kg
Capacity: 90m3/h Working Pressure: 0.25-0.4Mpa
Outlet Size: DN150mm Bottom Shaker: TRZS60/N/A
Dimension: 1510*1360*2250mm
High Light:

0.4 Mpa Dewatering Hydrocyclone

,

Mud Dewatering Hydrocyclone

,

Drilling Mud Desilter Hydrocyclone

Drilling Mud Desilter with Clamp Connection of Cyclone for Trenchless Micro-Tunneling



Introduction:



TRCN series Mud Desilter is composed of 10-12 φ125 polyurethane hydraulic cyclone and a small fine shaker combination. It is used to remove the drilling fluids 20-40μm harmful solid phase. The usage shows that the equipment is designed to be reliable, workable, mud removal effect, is the ideal drilling fluid control equipment.



Desilter is the third important solids control facility in drilling mud purification system. It could enhance the performance of drilling mud, and can work together with desander cleaner. Commonly used cone is ”4 or 5” , which separates size of 15-47μm solids particles out from drilling fluids. Desilter is also called Hydrocyclone Desilter on the basis of clients’ handling ability. At present, TRCN series desilter is widely applied to oil & gas drilling, horizontal directional drilling, coal bed methane drilling, bored piling, tunnel and other trenchless project.



Advantages of TRCN series desilter:

  1. Painting: Heavy anti-corrosion paint.
  2. Inlet and outlet adopt fast joint connection.
  3. Heat treatment on entire deck.
  4. International famous brand vibration motor with Martin or OLI.
  5. High strength compound rubber material used to reduce shocking.
  6. Electrinic control system from famous brand explosion-proof eletronic switch.
  7. Cyclones with high wearing-resisting polyurethane and high-chromium iron.


Technical Data of TRCN Series Mud Desilter:



Model TRCN100-4N TRCN100-6N/8N TRCN100-12N/16N TRCN100-20N
Capacity 60m3 90m3/120m3 180m3/240m3 300m3
Cyclone Specs 4”
Cyclone Qty 4 pcs 6pcs/8pcs 12pcs/16pcs 20pcs
Working Pressure 0.25-0.4Mpa
Inlet Size DN100mm DN125mm DN150mm DN150mm
Outlet Size DN125mm DN150mm DN200mm DN200mm
Separation Point 15μm -44μm
Bottom Shaker TRZS60 TRZS60 TRZS752 TRZS703
Dimension 1510*1160*2000mm 1510*1360*2250mm 1835*1230*1810mm 2770*1785*1810mm
Weight 550kg 560kg/580kg 1150kg 1950kg
Remark All desilter could be customized without bottom shaker.



Drilling Mud Desilter Hydrocyclone Equipement Trenchless Micro - Tunneling Use



Application in Drilling Solids control:



Our mud desilter is currently used in tunneling construction, oil & gas drilling, city bored piling, Drilling Waste Management, micro-tunneling, mining, environment protection, Coal Bed Gas Solids Control System, trenchless HDD, Oil Sludge Dewatering Systems, Oil Mud Seperation, Water Drilling etc.



Competitive Advantages:
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet:
Customer's satisfaction is the highest pursuit of TR Solids Control.
