| Capacity: | 300m3/h | Cyclone Specs: | 4" |
|---|---|---|---|
| Cyclone Qty: | 20nos | Working Pressure: | 0.25-0.4Mpa |
| Inlet Size: | DN150mm | Outlet Size: | DN200mm |
| Specification Point: | 15μm-44μm | Bottom Shaker: | TRZS703 |
| Dimension: | 2770*1785*1810mm | Weight: | 1950kg |
| High Light: | Mud Cleaning System Desander Desilter,Cyclone Desilter Hydrocyclone,Oilfield Desilter Hydrocyclone |
||

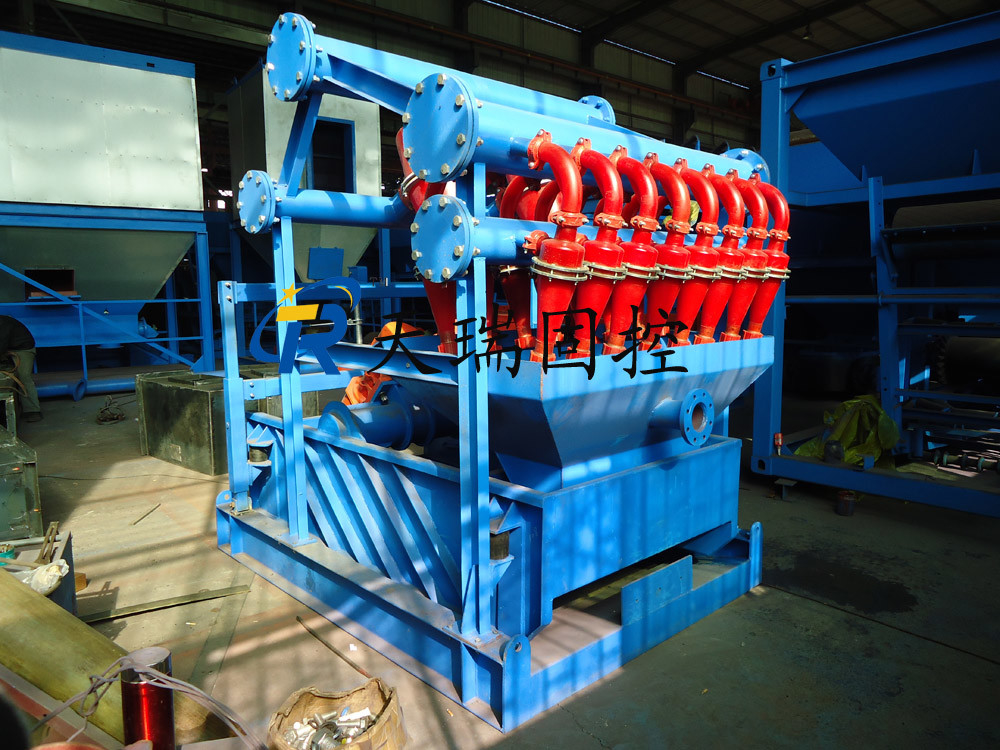

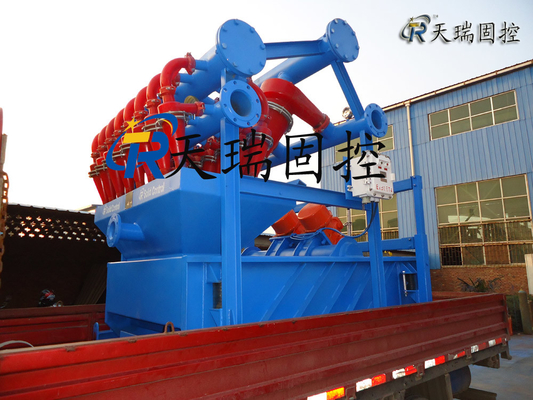

API Oilfield Drilling Mud Desilter for Mud Cleaning System , Mud Desilter Supplier
Product Introduction
Our TRCN series desilter is a crucial piece of solids control equipment in the drilling mud system, used to effectively remove particles between 15-47um. Based on the treating capacity requirements of our clients, we offer a range of cone options to choose from.
Our mud desilter is designed with the principles of particle sedimentation in mind. As the separation medium - the drilling fluid - passes through the centrifugal pump, it gains some pressure and speed, and is directed into the hydrocyclone along the wall. The larger solid particles in the hydrocyclone spiral downwards under the combined forces of centrifugal force and gravity, and are discharged through the bottom flow hole, falling onto the underlying micromesh for separation. The other mediums, rising along the spiral of the hydrocyclone, are directed into the fourth class separation equipment - centrifuge - for further cleaning treatment via the overflow hole.
Main Benefits of Our mud desilter:
Parameters of Drilling Mud Desilter
| Model | TRCN100-4N | TRCN100-6N/8N | TRCN100-12N/16N | TRCN100-20N |
| Capacity | 60m3 | 90m3/120m3 | 180m3/240m3 | 300m3 |
| Cyclone Specs | 4” | |||
| Cyclone Qty | 4 pcs | 6pcs/8pcs | 12pcs/16pcs | 20pcs |
| Working Pressure | 0.25-0.4Mpa | |||
| Inlet Size | DN100mm | DN125mm | DN150mm | DN150mm |
| Outlet Size | DN125mm | DN150mm | DN200mm | DN200mm |
| Separation Point | 15μm -44μm | |||
| Bottom Shaker | TRZS60 | TRZS60 | TRZS752 | TRZS703 |
| Dimension | 1510*1160*2000mm | 1510*1360*2250mm | 1835*1230*1810mm | 2770*1785*1810mm |
| Weight | 550kg | 560kg/580kg | 1150kg | 1950kg |
| Remark | All desilter could be customized without bottom shaker. | |||
Main Application
The mud desilter is currently utilized in various applications such as trenchless HDD, city bored piling, tunneling construction, oil and gas drilling, oil sludge dewatering systems, micro-tunneling, coal bed gas solids control system, drilling waste management, mining, environmental protection, oil mud separation, water drilling, and more. The TR mud desilter has been exported to numerous countries including Thailand, Canada, Vietnam, Egypt, Germany, UAE, US, and more. We welcome your inquiry!
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
