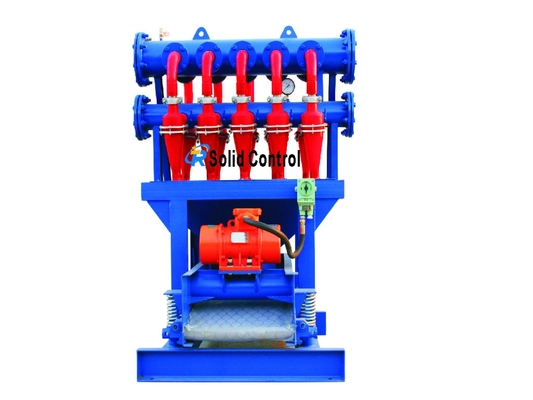

Martin / OLI Vibration Motor Desander Desilter Inset Size DN150mm Outset 200mm

Martin / OLI Vibration Motor Desander Desilter Inset Size DN150mm Outset 200mm
Martin / OLI Vibration Motor Desander Desilter Inset Size DN150mm Outset 200mm Martin / OLI Vibration Motor Desander Desilter Inset Size DN150mm Outset 200mm

Large Image :  Martin / OLI Vibration Motor Desander Desilter Inset Size DN150mm Outset 200mm

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API Certificate, ISO9001 Certificate
Model Number: TRCN100-12N
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 20 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 30 Sets / Month
Detailed Product Description
Capacity: 180m3/h Cyclone Specs: 4"
Cyclone Qty: 12nos Working Pressure: 0.25-0.4Mpa
Inlet Size: DN150mm Outlet Size: DN200mm
Specification Point: 15μm-44μm Bottom Shaker: TRZS752
Dimension: 1835*1230*1810mm Weight: 1150kg
High Light:

Vibration Motor Desander Desilter


Heavy Desilter Hydrocyclone


Third Stage Desilter Hydrocyclone

Drill Hydrocyclone Drilling Mud Slurry Water Sand Separation Cyclone Desilter


Main Introduction



The desilter is the solid control equipment in the third stage of drilling operation, which is used to remove 20-40μm solid particles in the drilling fluid. After many years of application and transformation, this type of desilter has reliable technical performance and very good treatment effect. The hydrocyclone has a long service life and stable performance. It is suitable for various drilling rigs in oil fields.


The basic principle of our hydrocyclone is to separate liquid-liquid, liquid-solid, liquid-gas and other two-phase or multi-phase mixtures with a certain density under the action of centrifugal force. The mixed liquid flows into the cyclone tangentially under a certain pressure, and a high-speed rotating flow field is generated in the cylindrical cavity. The high-density components in the mixture move downward in the axial direction and outward in the radial direction under the action of the swirling flow, and move downward along the wall surface under the action of the force, and are discharged from the bottom, thus forming.

Mechanics & Working Principle of TR Desilter

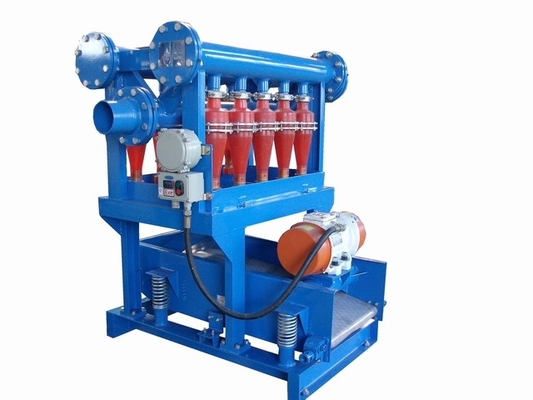

TRCN100×12 desilter cleaner are completed with 100mm polyurethane hydrocyclones, mud trough, manifold, motor, shale shaker, base and all necessary connections.The upper part of hydrocyclone is cylindrical with a tangential suction tube and a overflow tube in center. The lower part of hydrocyclone is cone with bottom silt discharge tube. The upper part and lower part are connected by hoop.


Main Features of TRCN series Mud Desilter:

  1. Inlet and outlet adopt fast joint connection.
  2. Heat treatment on entire deck.
  3. Cyclones with high wearing-resisting polyurethane and high-chromium iron.
  4. High strength compound rubber material used to reduce shocking.
  5. International famous brand vibration motor with Martin or OLI.
  6. Painting: Heavy anti-corrosion paint.
  7. Electrinic control system from famous brand explosion-proof eletronic switch.

Technical Parameters of TR Mud Desilter


Model TRCN100-4N TRCN100-6N/8N TRCN100-12N/16N TRCN100-20N
Capacity 60m3 90m3/120m3 180m3/240m3 300m3
Cyclone Specs 4”
Cyclone Qty 4 pcs 6pcs/8pcs 12pcs/16pcs 20pcs
Working Pressure 0.25-0.4Mpa
Inlet Size DN100mm DN125mm DN150mm DN150mm
Outlet Size DN125mm DN150mm DN200mm DN200mm
Separation Point 15μm -44μm
Bottom Shaker TRZS60 TRZS60 TRZS752 TRZS703
Dimension 1510*1160*2000mm 1510*1360*2250mm 1835*1230*1810mm 2770*1785*1810mm
Weight 550kg 560kg/580kg 1150kg 1950kg
Remark All desilter could be customized without bottom shaker.


Martin / OLI Vibration Motor Desander Desilter Inset Size DN150mm Outset 200mm 0


Product Application


Drilling mud desilter is currently used in tunneling construction, oil & gas drilling, trenchless HDDcity bored piling, Drilling Waste Management, environment protection, micro-tunneling, mining, Coal Bed Gas Solids Control System, Oil Sludge Dewatering Systems, Oil Mud Seperation, Water Drilling etc. If you have inquiry of mud desilter, we welcome your consulting!


Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
