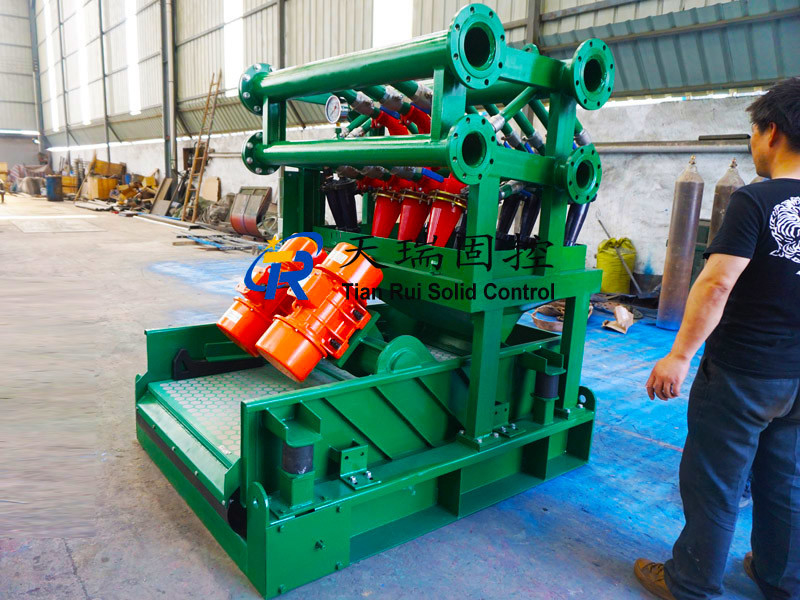

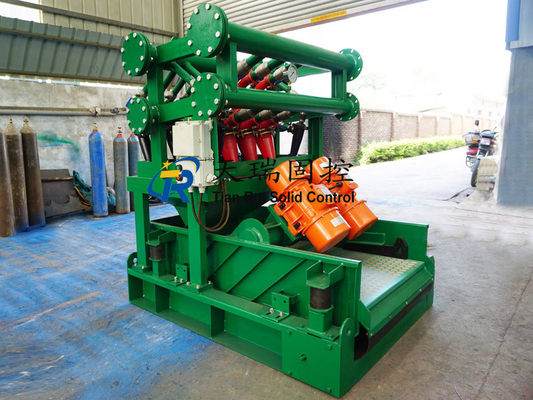

Pure Polyurethane / High Chromium Iron Desilter Hydrocyclone Cyclone 20nos 300m3/H

Large Capacity Drilling Fluid Mud Desilter for Oil and Gas Drilling

Product Introduction

Our TRCN series desilter is the third-stage solid control equipment in the drilling mud system, used to separate out 15-47um particles. Different numbers of cones can be selected according to customer processing capacity requirements.

Drilling mud desilters are used to separate silt from drilling mud. Cut points can be as low as 4". As the mud is used in drilling operations, they become contaminated with silt. In order to use this mud again, the silt must be separated and the mud recycled for disposal at the end of the job. The TR 4" desilter can Handles drilling fluids up to 1056 GPM.

Main Advatages of TRCN series mud desilter:

1. Inlet and outlet adopt fast joint connection.
2. Heat treatment on entire deck.
3. High strength compound rubber material used to reduce shocking.
4. Painting: Heavy anti-corrosion paint.
5. International famous brand vibration motor with Martin or OLI.
6. Cyclones with high wearing-resisting polyurethane and high-chromium iron.
7. Electrinic control system from famous brand explosion-proof eletronic switch.

Technical Data of TRCN Series Mud Desilter

Application

Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
