Oilfield Horizontal Diesel Ignition Device For Setting Off Export Toxic Flammable Gas

Oilfield Horizontal Diesel Ignition Device For Setting Off Export Toxic Flammable Gas
Oilfield Horizontal Diesel Ignition Device For Setting Off Export Toxic Flammable Gas
video play

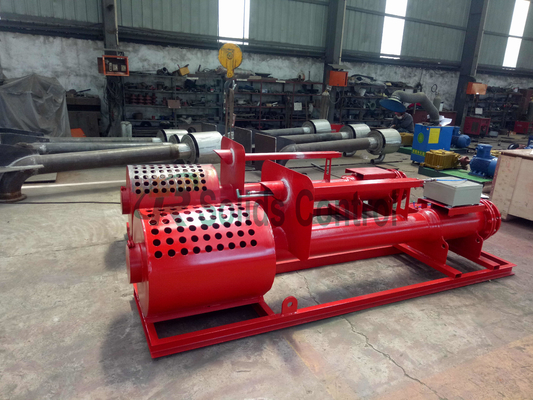

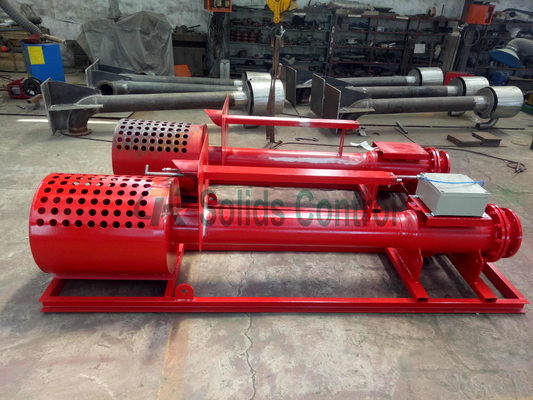

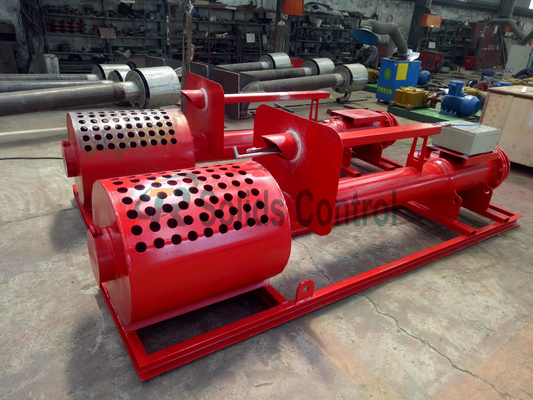

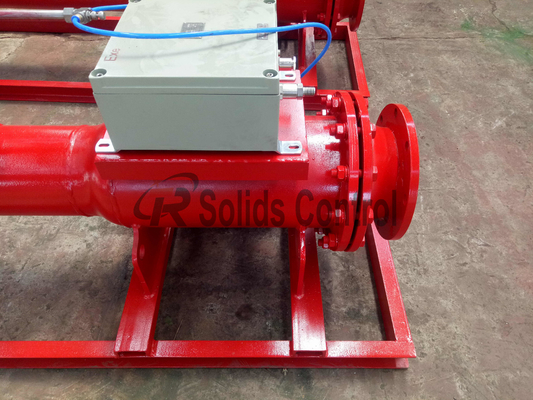

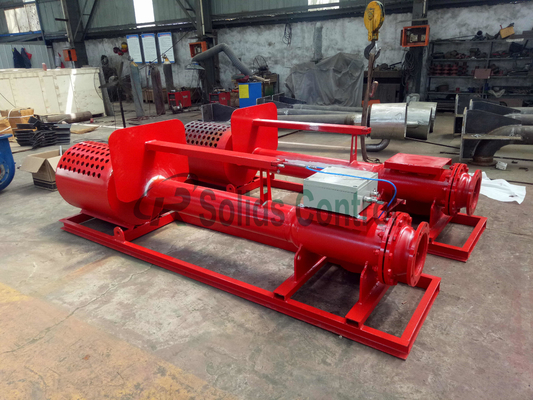

Large Image :  Oilfield Horizontal Diesel Ignition Device For Setting Off Export Toxic Flammable Gas

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certified
Model Number: TRYPD-20/3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case or pallet
Delivery Time: 20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 200 Sets / Month
Detailed Product Description
Diameter Of Main Body: DN200 Charging Voltage: 12V/220V
Ignition Media: Natural Gas(LPG) Ignition Voltage: 16kv
Weight: 520kg Dimension: 1610×650×3000mm
High Light:

Horizontal Diesel Ignition Device

,

Oilfield Diesel Ignition Device

,

Toxic Flammable Gas Flare Ignition Device

Horizontal Flare Ignition Device for Oil and Gas Drilling



Product Introduction



Our flare ignition device mainly consists of DN200 ( or DN150 ) gas burner ( torch ), electronic igniter, igniting tools ( including liquefied gas cylinder, hose, etc.) and drilling mud gas separator (supporting equipment for drilling engineering ), which adopts high-performance electronic ignition circuits, imported major components, and domestic high-quality accessories and cables, with stable performance and reliable operability.


And now, as a matured product, flare ignition device has been widely used in petroleum drilling engineering. It can be ignited in the moment of spray timely at an accurate location spray pipe from the set off export toxic flammable gas, so that to eliminate gas pollution to the environment, human and animal damage. It optimises HSE performance and available in common power supply configurations to meet all applicable global electrical standards.



Key Specialities of TRYPD Flare Ignition Device

  1. Manual ignition can be used with remote electronic ignition.
  2. Electrical components are imported components.
  3. High ignition frequency and speed.
  4. Top part design is rain-proof with material stainless steel 304.
  5. AC and DC ignition are switchable, in case low battery to unable ignition.
  6. Matching with solar panel to achieve the purpose of energy saving.

Technical Infomation of TRYPD Series Flare Ignition Device



Model TRYPD-20/3 TRYPD-20/3T
Diameter of Main Body DN200
Charging Voltage 12V/220V
Ignition Media Natural gas/LPG
Ignition Voltage 16kv 16kv
Charge Mode AC Solar and AC
Weight 520kg 590kg
Dimension 1610×650×3000mm 1610×650×3000mm



Oilfield Horizontal Diesel Ignition Device For Setting Off Export Toxic Flammable Gas 0
