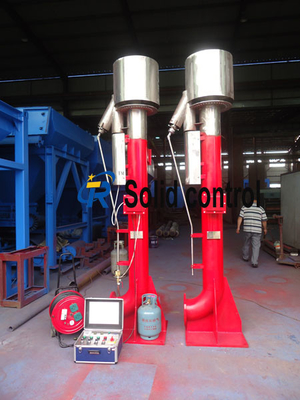

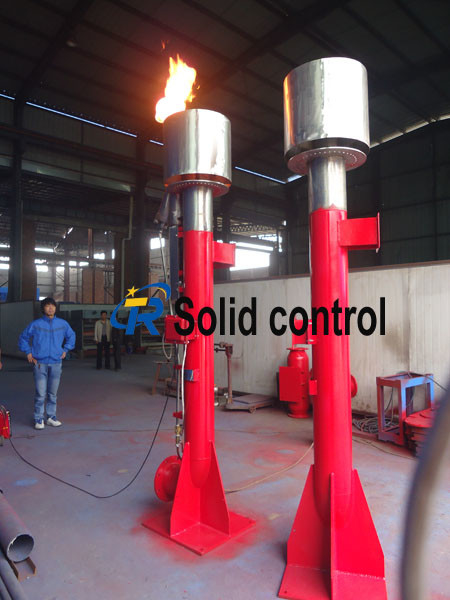

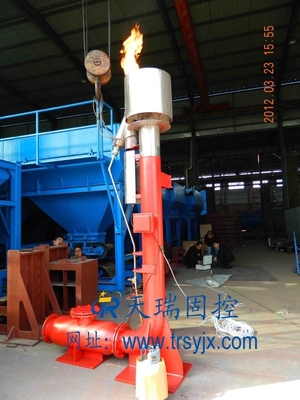

Oilfield Equipment Flare Ignition Device For Liquid-Gas Separators

Oilfield Equipment Flare Ignition Device For Liquid-Gas Separators
Oilfield Equipment Flare Ignition Device For Liquid-Gas Separators
video play

Large Image :  Oilfield Equipment Flare Ignition Device For Liquid-Gas Separators

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certified
Model Number: TRYPD-20/3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case or pallet
Delivery Time: 20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 200 Sets / Month
Detailed Product Description
Diameter Of Main Body: DN200 Charging Voltage: 12V/220V
Ignition Media: Natural Gas(LPG) Ignition Voltage: 16kv
Weight: 520kg Dimension: 1610×650×3000mm
High Light:

DN200 Gas Ignition System

,

Liquid Gas Separators Flare Ignitor

,

Oilfield Equipment Flare Ignition Device

Oilfield Equipment Flare Ignition Device with High Performance



Main Introduction



Ignitor for liquid-gas separators is an environmentally-friendly discharge torch that is exclusively produced by our company. It is suitable for ignition of long distances and air and toxic gas burning places that cannot be reached by humans. It is especially suitable for oil production(gas) overflow of gas or oil, naturral gas, and drilling operation in stationo gathering pipelines, and long-distance ignition of natural gas separated by liquid-gas separators during killing operations eliminate the unsafe factors of manual ignition. Avoid explosions that may occur when natural gas is mixed with air and H2S-containing gases that can harm humans and equipment.


And now, as a matured product, flare ignition device has been widely used in petroleum drilling engineering. TRYPD flare ignition devices can be ignited in the moment of spray timely at an accurate location spray pipe from the set off export toxic flammable gas, so that to eliminate gas pollution to the environment, human and animal damage. It optimises HSE performance and available in common power supply configurations to meet all applicable global electrical standards.



Key Advatages of TR Flare Ignition Device

  1. Effective distance is100m to 150m.
  2. High ignition frequency and speed.
  3. Top part design is rain-proof with material stainless steel 304.
  4. Electrical components are imported components.
  5. AC and DC ignition are switchable, in case low battery to unable ignition.
  6. Manual ignition can be used with remote electronic ignition.
  7. Matching with solar panel to achieve the purpose of energy saving.

Technical Data of TR Flare Ignition Device



Model TRYPD-20/3 TRYPD-20/3T
Diameter of Main Body DN200
Charging Voltage 12V/220V
Ignition Media Natural gas/LPG
Ignition Voltage 16kv 16kv
Charge Mode AC Solar and AC
Weight 520kg 590kg
Dimension 1610×650×3000mm 1610×650×3000mm

Oilfield Equipment Flare Ignition Device For Liquid-Gas Separators 0





TR Solids Control offers drilling rig and travelling system products for big oil fields over a long period of time. The company is 1st-class unit of China National Petroleum (Group) Equipment Corporation and Supplies and Assemblies Company of China Petroleum Corporation. Insisting on the development and innovation path with scientific progress as the core, company has been constanly absorbing advanced technology to quicken new product development. This company has established close technical cooperation relation with the oil field research institutes, designing institutes and various engineering technical departments throughout the country. For many years,we have achieved many scientific and thchnological achievements based on independent intellectual properties, filling up many blank both abroad and home.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
