DN200 Flare System For Solid Control Optimised HSE Performance

China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
Professional solids control manufacturer. Their Product replacement shaker screens have long service time and good treatment. They help us a lot!

—— Mr. Samir

I purchased 10 pcs TRSB8*6-12J centrifugal pump from TR Solids Control. They are good-looking and really have good quality and considerate after sales service!

—— Mr. Warren

We ordered a set of mud system for our oilfield drilling field, TR product showed good performance in the site. We like that very much!

—— Diego Olbrich

TR shaker screens have top quality and good price. We have been purchasing them from TR for more than 4 years.

—— Nghiem Thic Hai

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Hossein Jafari

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Ms. Crina

We start use TRZS703 Shale Shaker since 2012, now we have 8 sets working in our customer's oilfield site, perfect machine with reasonable price.

—— S. A. Kazi

I'm Online Chat Now

DN200 Flare System For Solid Control Optimised HSE Performance

DN200 Flare System For Solid Control Optimised HSE Performance
DN200 Flare System For Solid Control Optimised HSE Performance
video play

Large Image :  DN200 Flare System For Solid Control Optimised HSE Performance

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certified
Model Number: TRYPD-20/3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case or pallet
Delivery Time: 20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 200 Sets / Month
Detailed Product Description
Diameter Of Main Body: DN200 Charging Voltage: 12V/220V
Ignition Media: Natural Gas(LPG) Ignition Voltage: 16kv
Weight: 520kg Dimension: 1610×650×3000mm
High Light:

Solid Control Flare System

,

DN200 Flare System

,

LPG Flare Equipment

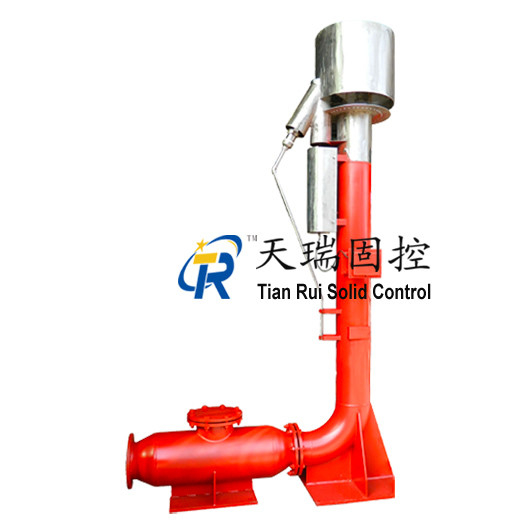

Flare ignition Device / System for Oilfield Solid Control



Product Introduction

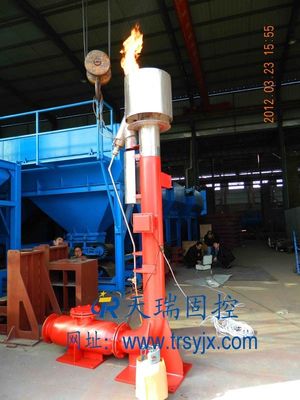

Flare ignition device designed and manufactured by TR Solids Control is a kind of treatment equipment used in blown down natural gas, the tail gas from collecting and distributing station of natural gas and refinery. As a kind of security and environmental protection equipment, flare ignition device can be used to have the blown down harmful gas ignited and burned to prevent the environment and security from being endangered. The flare ignition device, apart from being used in the refinery and gas distribution station, may be matched with liquid gas separator.


And now, as a matured product, flare ignition device has been widely used in petroleum drilling engineering. It can be ignited in the moment of spray timely at an accurate location spray pipe from the set off export toxic flammable gas, so that to eliminate gas pollution to the environment, human and animal damage. It optimises HSE performance and available in common power supply configurations to meet all applicable global electrical standards.



Main Specialities of TRYPD Flare Ignition Device

  1. Manual ignition can be used with remote electronic ignition.
  2. Electrical components are imported components.
  3. High ignition frequency and speed.
  4. Top part design is rain-proof with material stainless steel 304.
  5. AC and DC ignition are switchable, in case low battery to unable ignition.
  6. Matching with solar panel to achieve the purpose of energy saving.

Technical Info. of TRYPD Series Flare Ignition Device



Model TRYPD-20/3 TRYPD-20/3T
Diameter of Main Body DN200
Charging Voltage 12V/220V
Ignition Media Natural gas/LPG
Ignition Voltage 16kv 16kv
Charge Mode AC Solar and AC
Weight 520kg 590kg
Dimension 1610×650×3000mm 1610×650×3000mm



DN200 Flare System For Solid Control Optimised HSE Performance 0

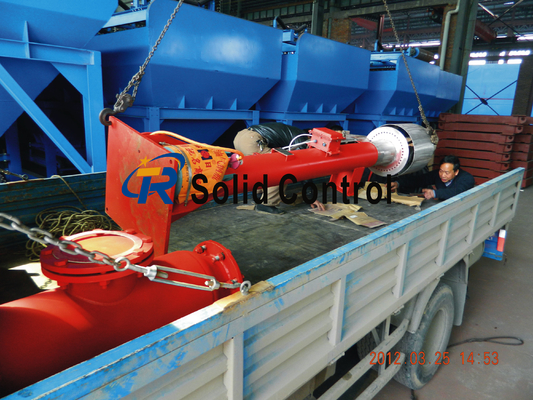

1. Transportation
During the transportation of electronic ignition device, the electronic ignition device and check valve should be disassembled and placed flat in the packing box. And lay the electronic ignition device flat and fixed in the packaging box, so as to avoid damage to the electronic ignition device and scratches on the outside in the process of transportation.
2. The installation
In general, the installation ground of electronic ignition device shall be flat and firm, and the ground bolt pit shall be preset.
When installation, use crane to lift vertically with the ground, slowly put it down, and then use steel wire rope from the upper part of the main body (uniform cloth) to tighten with the ground, to ensure that the main body and the ground are vertical, casting anchor bolts, fastening see schematic diagram.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
