| Capacity: | 110m3/H | Motor Power: | 1.5KW+1.5KW+0.4KW |
|---|---|---|---|
| Screen Area: | 2.0m2 | Double Amplitude: | 7mm |
| Ex Standard: | ExdllBt4 | Vibration Motion: | Dual Motion |
| Screen Specs.: | (585*1165mm)*3pcs | Vibration Strength: | ≤8.5G(Adjustabe) |
| Adjustment Angle: | -3°-+3° | Weight: | 1500kg |
| High Light: | Adjustable Vibration Mud Shaker,Dual Motion Shale Shaker Screen,110m3/H Shale Shaker Screen |
||

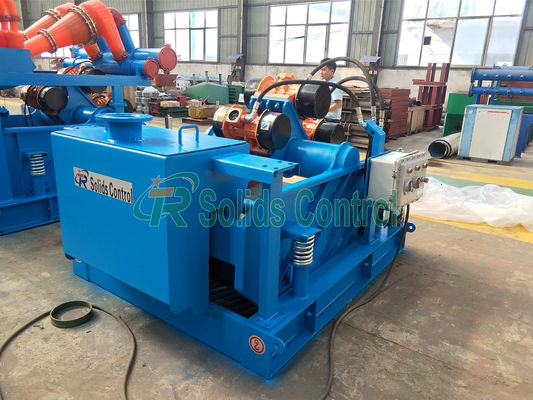

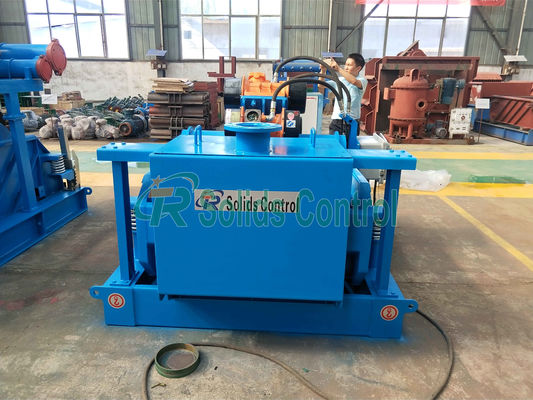

Swaco Mongoose PT Shale Shaker with Three Motors
Introduction
Shale shaker is the first phase equipment to achieve the mud without landing. It can also be used at the first stage of mud recycling system in the oil drilling process. If you want to realize the mud does not fall, single equipment can not be achieved. It requires a variety of equipment combined together and treated systematically.
TR Series shaker is a high strength vibrating screen independently in order to meet the domestic and international market demand and environmental protection requirements. Our drying shaker has been used in oil drilling field, shield construction site, city piling site. They could meet a variety of drill cuttings dewatering, screening, purification requirements. They ensure the continuous and effective treatment of the whole drilling shaving slurry, and have been highly recognized by customers.
Main features of our mud shale shaker
Technical Parameters of TR Shale Shaker
| (Model) | TRPZS584 | TRPZS583 | ||
| Vibration Motion | Dual Motion | Dual Motion | ||
| Treatment Capacity | 140m³/h | 110m³/h | ||
| Motor Power | 1.72KW+1.72KW+0.75KW | 1.5KW+1.5KW+0.4KW | ||
| Screen Specs. | (585×1165mm)×4 | (585×1165mm)×3 | ||
| Screen Area | 2.7m² | 2.0m² | ||
| Vibration Strength | ≤8.5G | ≤8.5G | ||
| Double Amplitude | 7mm | 7mm | ||
| Deck Adjustment | -3°~+3° | -3°~+3° | ||
| Ex Standard | ExdIIBt4/IECEX/A-TEX | |||
| Weight | 1700kg | 1500kg | ||
| Dimension | 2600×1645×1138mm | 2100×1645×1380mm | ||
| Remark | Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3 | |||
Application
TRZS mud shale shaker is widely used in Drilling Waste Management, city bored piling, oil & gas drilling, tunneling construction, trenchless HDD, environment protection, Coal Bed Gas Solids Control System, micro-tunneling, Oil Mud Seperation, mining, Oil Sludge Dewatering Systems, Water Drilling etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
