Product Details:
Payment & Shipping Terms:
|
| Brand Name:: | TR Solids Control | Applicable Industries:: | Energy & Mining |
|---|---|---|---|
| Marketing Type:: | Hot Product 2021 | Warranty Of Core Components:: | 1 Year |
| Application:: | Oilfield, Drilling Solid Control | Certification:: | API, ISO, CE |
| Product Name:: | Drilling Mud Shale Shaker | ||
| High Light: | Drilling Mud Recycling Shale Shaker Screen,High Strength Steel Mud Shale Shaker,Linear Motion Mud Shaker |
||

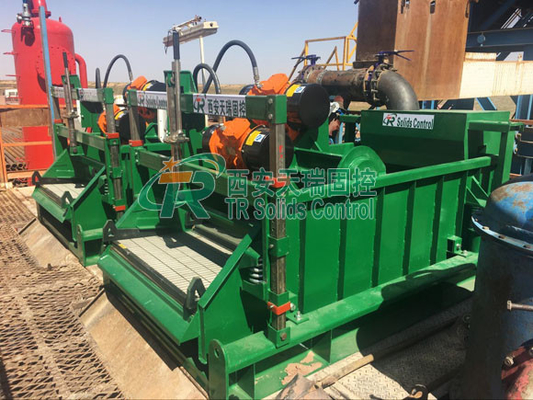

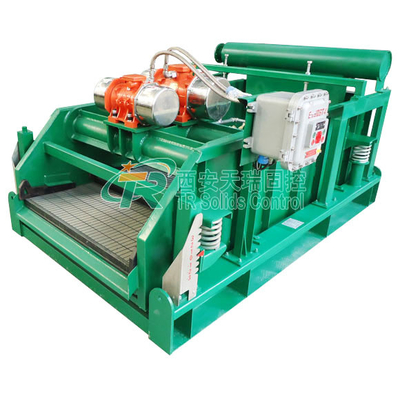

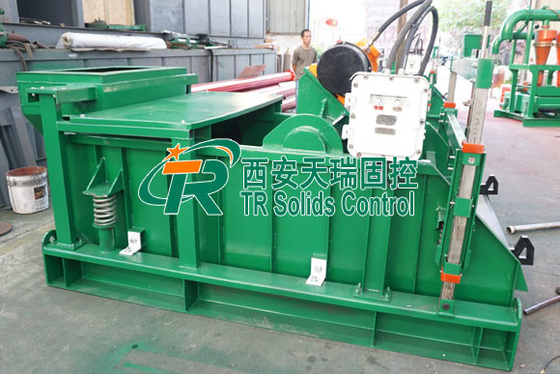

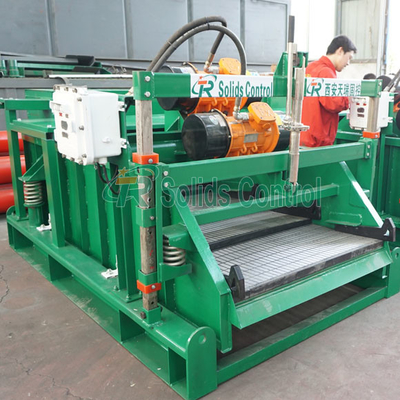

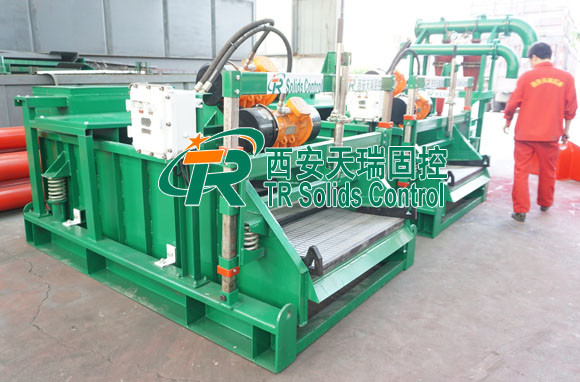

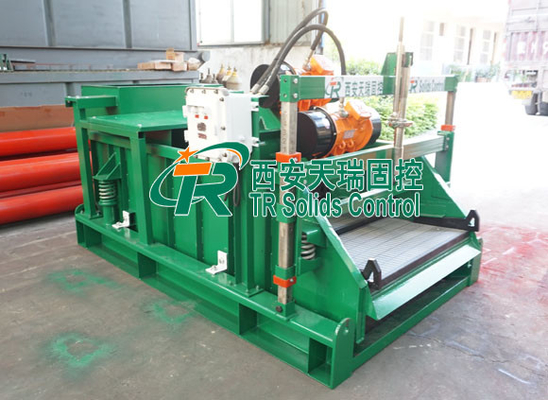

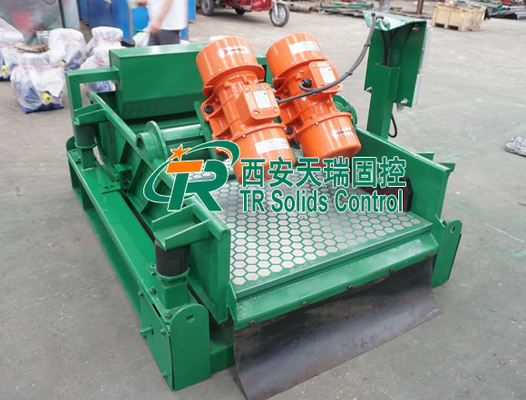

Drilling Shale Shaker is the third generation of linear motion shaker.Drilling Shale Shaker is using the horizontal excitation of vibration motor as vibration source, material on the sieve was up forward for linear motion,referred to as Linear Shaker, also known as linear shaker; Drilling Shale Shaker is the most widely used mud shale Shaker. All Mud Shale Shaker is TR Solids Control designed by ourselves, including Balanced Elliptical motion Shaker and Mongoose shale shaker.All shaker screens can be fit on shakers by wedge blocks or hooks.We can according to customer’s demand, linear motion, or balanced elliptical motion and double-track movement.
Shale shaker is first phase solids control equipment in drilling fluids processing system, also known as key solids control equipment in drilling mud system, shale shaker decides performance of the whole solids control system. Solids Control can design double shakers and triplicate shakerson single skid according to clients’special requirements and also supply relevant connecting manifold, according to current industry situation,we provide both third generation linear motion shale shaker and fourth generation balanced elliptical shale shaker.
shale shaker absorbed advanced tech at home and abroad ,complete series shale shaker can meet customers’ variable demand. Clients feedback proved the advantages of this kind of shale shaker: high G-force, wide screen area, compressed structure, cost-effective, etc.
Features of Shale Shaker:
Italy brand motor, standard brand is OLI, Martin or Ital-Vibras motor as option.
Max G force reaches to 7.5G, G force adjustable depending on drilling mud conditions.
Heat treatment of shaker deck for steady working, Stainless Material for shaker deck bottom.
Heavy anticorrosive painting on shaker service, 3 layer painting.
Wedge type screen and hook strip screen both available to suit client requirement.
Mechanical deck angle adjustment for steady and reliable performance.
Standard options: IECEX, ATEX, UL, DGMS, CE, Gost.
Top brand of electrical control panel, Siemens/Schneider brand main components.
Composite material screen available for longer service life.
Shaker screens have got to API RP 13C compliance test. The only one supplier in China with API RP 13C compliance test report.
Drilling Shale Shaker Technical Parameters
| Model | TRZS703 | TRZS2000 | TRZS585 |
| Vibrating Model | Linear | Linear | Linear |
| Motor Power | 2×1.5KW | 2×1.72KW | 2×1.72KW |
| Vibrating Strength | ≤7.0G | ≤7.5G | ≤7.5G |
| Amplitude | 6.0~7.2mm | 6.0~7.2mm | |
| Capacity | 527GPM | 615GPM | 615GPM |
| Deck Adjustment | -1°~5° | -1°~5° | -1°~5° |
| Screen of Deck | 3 | 3 | 4 |
| Electric | 380V/50HZ,460V/60HZ or Customized | ||
| Decibels | <85db | <85db | <85db |
| Ex Standard | ExdIIBt4 / IEC EX/ ATEX | ExdIIBt4 / IEC EX/ ATEX | ExdIIBt4 / IEC EX/ ATEX |
| Dimension | 2800X1785X1750 | 2800X1600X1690 | 2800X1600X1690 |
| Weight | 1550kg | 1850kg | 1750kg |
| Remarks | Treating capacity test from mud 1.2g/cm ³density,viscosity45s﹠60mesh screen | ||
