140m3/H TRFLC2000 - 4 Linear Motion Shale Shaker For Well Drilling Industry

140m3/H TRFLC2000 - 4 Linear Motion Shale Shaker For Well Drilling Industry
140m3/H TRFLC2000 - 4 Linear Motion Shale Shaker For Well Drilling Industry 140m3/H TRFLC2000 - 4 Linear Motion Shale Shaker For Well Drilling Industry 140m3/H TRFLC2000 - 4 Linear Motion Shale Shaker For Well Drilling Industry 140m3/H TRFLC2000 - 4 Linear Motion Shale Shaker For Well Drilling Industry 140m3/H TRFLC2000 - 4 Linear Motion Shale Shaker For Well Drilling Industry 140m3/H TRFLC2000 - 4 Linear Motion Shale Shaker For Well Drilling Industry

Large Image :  140m3/H TRFLC2000 - 4 Linear Motion Shale Shaker For Well Drilling Industry

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API certificate, ISO9001 certificate
Model Number: TRFLC2000-4
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10 Sets / Month
Detailed Product Description
Capacity: 140m3/h Motor Power: 2.2kw*2
Screen Area: 2.9m2 Ex Standard: ExdllBt4
Vibration Motion: Linear Motion Screen Specs.: (1050*695mm)*4pcs
Vibration Strength: ≤7.0G(Adjustabe) Color: Green, Orange, Blue Or Customized
Dimension: 3310×1600×1850mm Weight: 1500kg
High Light:

Linear Motion Shale Shaker 140m3/H

,

Well Drilling Linear Motion Shale Shaker

,

Industry Shale Linear Vibratory Screen

TRFLC2000-4 Linear Motion Shale Shaker , Used for Well Drilling



Introduction

Shale shaker is the first stage of solids control equipment in drilling purification system. It can remove cuttings above 75 μm brought from the drilling well to leave the liquid with smaller particles into the tanks below, which will flow into next grade solids control equipment for further treatment. It's used in many industries, such as oil and gas drilling, coal cleaning(CBM), horizontal directional drilling (HDD), mining, etc.



Drilling shale shaker was originally mainly used to remove large solid particles in drilling mud, thereby ensuring the normal use of subsequent mud purification and separation equipment. At present, it has been given a new mission, namely as a basic equipment in drilling waste management. Also, it's used as a primary separation equipment in sludge treatment system.



Main features of our mud shale shaker

  1. Hopper type feed mode reduces feed speed.
  2. Martin or OLI vibration motor.
  3. Screen box angle is mechanical and adjustable.
  4. Wedge-type compaction device facilitates fast replacement of screen.
  5. Siemens electrical components.
  6. Overall heat treatment, long time work.
  7. Vibration strength is 7.5G, adjustable.

Technical Parameters of TR Shale Shaker



(Model) TRFLC2000-4
Vibration Motion Linear Motion
Treatment Capacity 140m³/h
Motor Power 2.2kw*2
Screen Specs. (1050*695mm)*4
Screen Area 2.9m²
Vibration Strength ≤7.0G
Deck Adjustment -1°~+5°
Ex Standard ExdIIBt4 / IECEX / A-TEX
Weight 1500kg
Dimension 3310*1600*1850mm
Remark Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3.

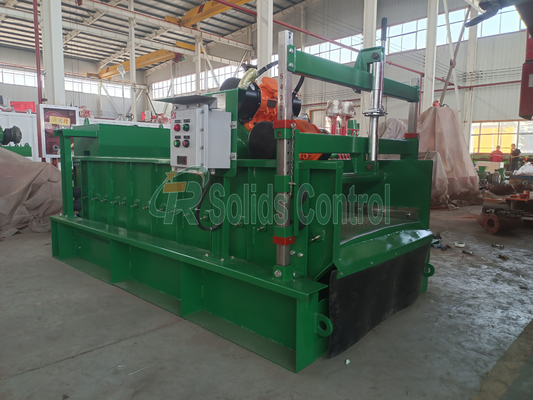

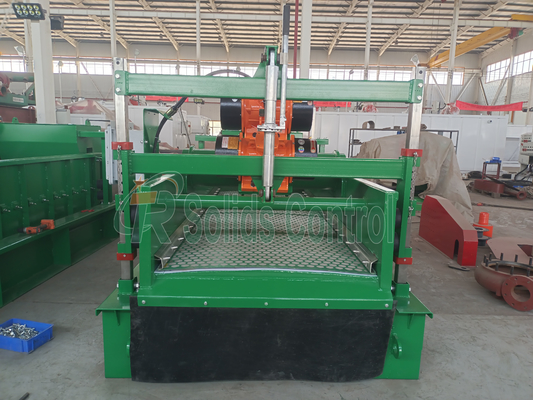

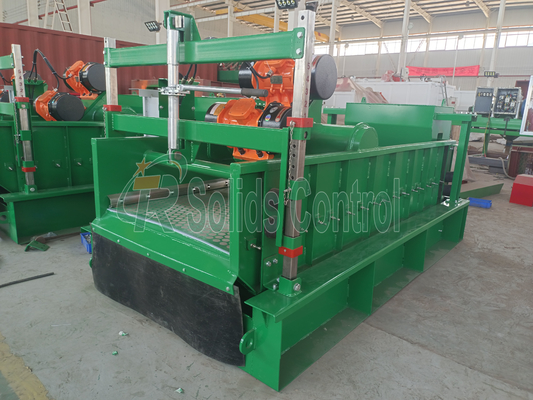

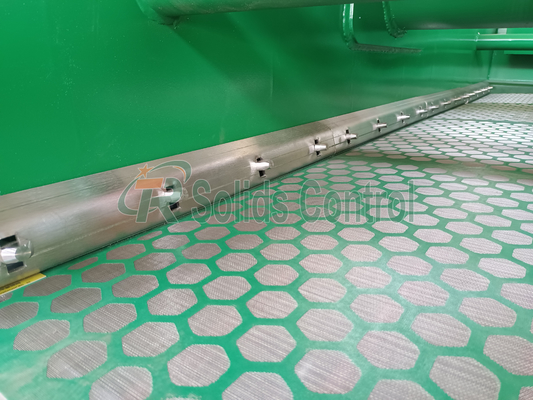

140m3/H TRFLC2000 - 4 Linear Motion Shale Shaker For Well Drilling Industry 0140m3/H TRFLC2000 - 4 Linear Motion Shale Shaker For Well Drilling Industry 1140m3/H TRFLC2000 - 4 Linear Motion Shale Shaker For Well Drilling Industry 2

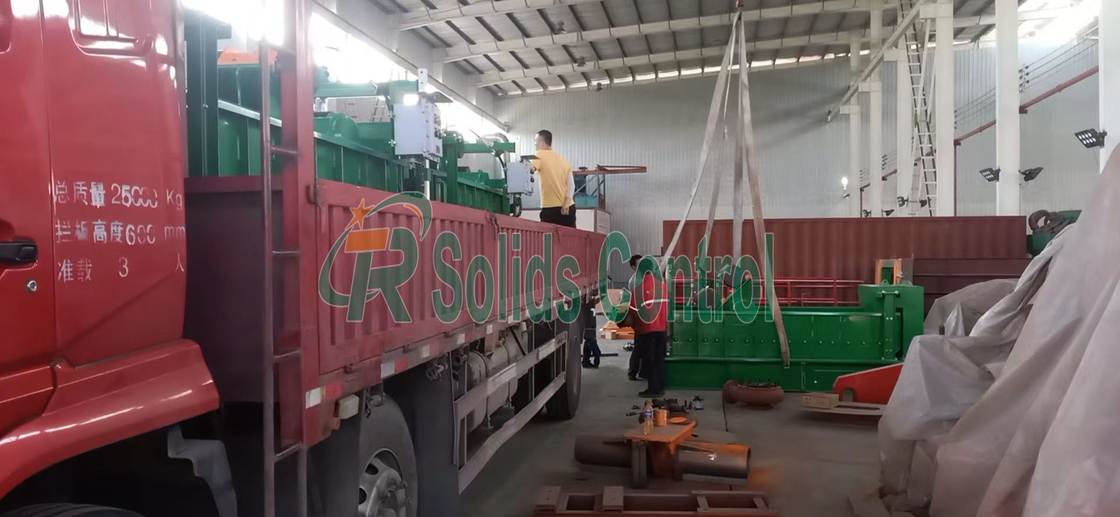

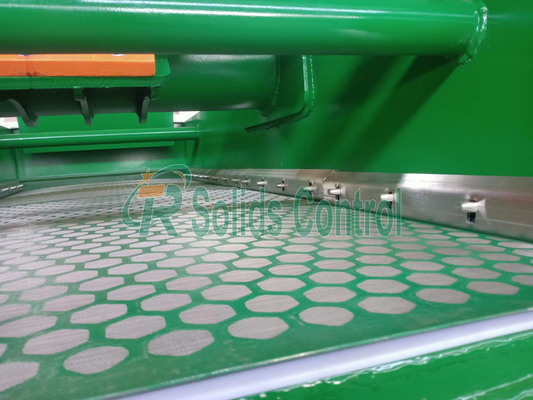

140m3/H TRFLC2000 - 4 Linear Motion Shale Shaker For Well Drilling Industry 3

Application

TR shale shaker is widely used in trenchless HDD, Drilling Waste Management, city bored piling, oil & gas drilling, tunneling construction, Coal Bed Gas Solids Control System, Oil Mud Seperation, micro-tunneling, Oil Sludge Dewatering Systems, environment protection, mining, Water Drilling etc.



Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
