Forging 7" 20000 Psi API 6A Mandrel Casing Hanger

Forging 7" 20000 Psi API 6A Mandrel Casing Hanger
Forging 7" 20000 Psi API 6A Mandrel Casing Hanger Forging 7" 20000 Psi API 6A Mandrel Casing Hanger Forging 7" 20000 Psi API 6A Mandrel Casing Hanger

Large Image :  Forging 7" 20000 Psi API 6A Mandrel Casing Hanger

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 6A, ISO 9001
Model Number: TR-YGQ
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 Pcs Per Month
Detailed Product Description
Size: 3 3/4 "(95.3mm)~26"(660.4mm) Pressure: 2000-20000 Psi
Packing: Wooden Box Warranty: 1 Year
Processing Type: Forging Material: Carbon Steel
High Light:

API 6A Mandrel Casing Hanger

,

20000 Psi Mandrel Casing Hanger

,

7" Mandrel Casing Hanger

7" API 6A Wellhead Casing Head Tubing Hanger for Oilfield



Product Descrption

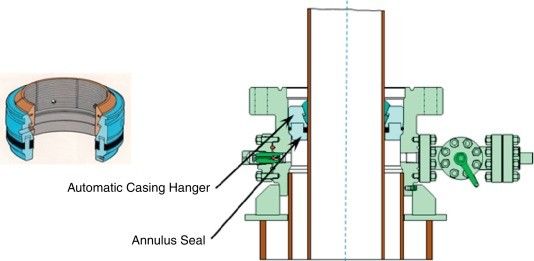

Casing hanger is inside the casing head and used for supporting the casing loads, and sealing the annular space between casing and tubing. Both slip type and mandrel type casing hangers are supplied by us.



There are two major types of casing hangers, i.e.the threaded (mandrel) type and the slip-type. The slip-type casing hanger comprises a number of models such as G.W. WD and WE. The model WD hangers are used to connect the casing head with the surface casing .when connected to the casing .the slip teeth of the hanger close tightly around the casing by the use of outer force. The model W hangers are structured to enable the dead-weight of the casing to energize the seal to function. Both the model WE and model G hangers operate by energizing the seal manually.



The slip type casing hanger comprises a number of models such as:
G type casing hanger
W type casing hanger
WD type casing hanger
WE type casing hanger



Main Features of Our Wellhead Casing Hanger



  • Casing hanger points thread type (core shaft), slip type two kinds big,
  • Slip type hanger type: G type, W type, WD type, WE type, etc.;
  • WD type suspension used for connecting casing head and surface casing, it through the external force that slip tooth hold casing;
  • W type hanger is casing self-respect strengthen sealed structure;
  • WE type and G type manual strengthen seal structure.



Technical Parameters of TR Wellhead Casing Hanger



Rated operating pressure
psi(MPa)
Nominal bore diameter
in(mm)
Bypass bore diameter
in(mm)
Outer diameter of the casing for the hangerin(mm)
2000(13.8) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
3000(20.7) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
5000(34.5) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
10000(69.0) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
15000(103.5) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
20000(138.0) 11"~21 1/4"
(280~540)
1 13/16"~4 1/16"
(46~103)
5 1/2"~20"
(139.7~508)
