AISI 4145H 70MPa Cement Head Drill Spare Parts For Oilfield

AISI 4145H 70MPa Cement Head Drill Spare Parts For Oilfield
AISI 4145H 70MPa Cement Head Drill Spare Parts For Oilfield AISI 4145H 70MPa Cement Head Drill Spare Parts For Oilfield AISI 4145H 70MPa Cement Head Drill Spare Parts For Oilfield

Large Image :  AISI 4145H 70MPa Cement Head Drill Spare Parts For Oilfield

Product Details:
Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRSNT
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 30000 pcs per month
Detailed Product Description
Size: 5 1/2" -13 3/8" Length: 1460-2360 Mm
Manifold: 2" 1502 Union Working Pressure: 70 Mpa
Warranty: 12 Months Standard: API 5CT
Weight: 300KG-900KG Application: Oil Drilling
High Light:

70MPa Cement Head Drill Spare Parts

,

Oilfield Cement Head Drill Spare Parts

,

AISI 4145H Drill Spare Parts

High Working Pressure 70MPa Cement Head for Oilfield



Product Descrption



Cement head is a device fitted to the top joint of a casing string to hold a cement plug before it is pumped down the casing during the cementing operation. In most operations, a bottom plug is launched before the spacer or cement slurry. The top plug is released from the cement head after the spacer fluid. Most cement heads can hold both the top and bottom plugs. A manifold incorporated into the cement head assembly allows connection of a fluid circulation line.

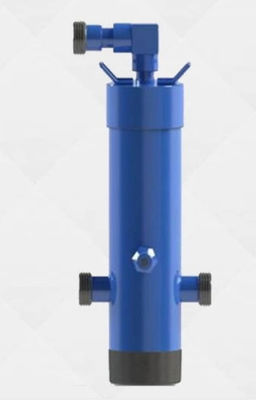

The single plug cementing head is special tool for pumping slurry and releasing plug andcan be connected with casing.

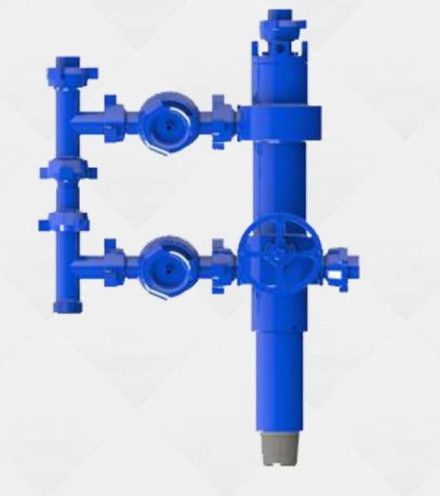

Double plugs cementing head is special tool for pumping slurry and releasing plug. It can couple with two plugs simultaneously,and makes the drilling fluid fill into casing in turn and quickly. This can simplify the cementing operation, prevent cement pollution.



Product Strengths of Oilfield Cement Head



  1. Top cover and union nut with large trapezoidial-threaded.
  2. Main parts are made from AISI4145H alloy steel.
  3. It makes the tool convenient to disassemble and carry.
  4. Double balance pipe is developed.
  5. Quick-latch adapter is designed to offer easier, faster and safer makeup for two-stage cementing.
  6. Positive lever indicates plug releasing.
  7. It is manufactured utilizing API grade steels with API 8 round, buttress and premium threads.
  8. This can simplify the cementing operation, prevent cement pollution.

Oilfield competitive price drilling clamp type quick joint cement head:

  • API 5CT specification
  • AISI 4145H alloy steel
  • Available in sizes 5-1/2" to 13-3/8"
  • Thread: LTC, STC, BTC and Premium thread
  • Steel Grade: J55, L80, N80, P110



Technical Specifications of Double Plug Cement Head



Specifications (in) 5 1/2" 7" 7 5/8" 9 5/8" 10 3/4" 13 3/8"
Overall Length (mm) 1950 2020 2360 2360 2440 1780
Manifold 2" 1502 Union
ID of Plug Container (mm) Φ125 Φ175 Φ225 Φ250 Φ320 ø 320
Length of Plug Container (mm) 400 450 550 550 600 600
Working Pressure (Mpa) 35.50 35.50 35.50 35.50 35 21



Technical Specifications of Single Plug Cement Head



Specifications (in) 5 1/2" 6 5/8" 7" 7 5/8" 9 5/8" 10 3/4" 13 3/8"
Overall Length (mm) 1460 1500 1500 1550 1750 1750 1780
Manifold 2" Union
ID of Plug Container (mm) ø125 ø 150 ø 160 ø 175 ø 225 ø 250 ø 320
Length of Plug Container(mm) 400 450 450 450 550 550 600
Working Pressure (Mpa) 35.50 35.50 35.50 35.50 35.50 35 35



AISI 4145H 70MPa Cement Head Drill Spare Parts For Oilfield 0



Xi'an TianRui Petroleum Machinery Equipment Company Limited is one of the exporting windows of China Petroleum Machinery. Our company integrates the R&D, machinery processing and technical service of petroleum machinery products. We aim at providing clients with satisfying products and service to benefit both clients and employees. Being master in petroleum machinery, Supplying high quality products to clients, Being honesty to everyone.



The target of TR Solids Control: To establish an international first-class enterprise, and become a professional petroleum equipment supplier, supply chain company and oilfield engineering services company. "providing the most qualified products, most competitive prices and most professional service for every customer " as its mission and Provide consistent after-sales service.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
