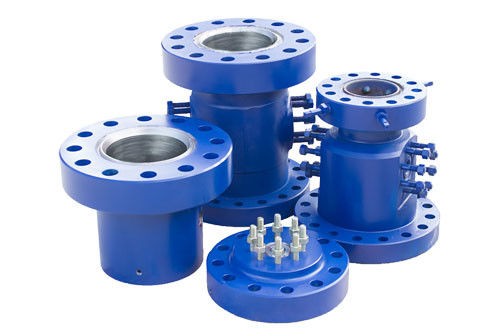

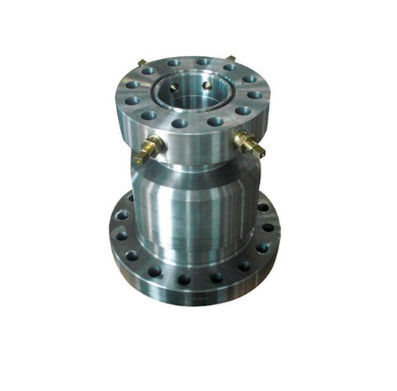

Studded 15000PSI 7 1/16" Casing Spool Drill Spare Parts

Studded 15000PSI 7 1/16" Casing Spool Drill Spare Parts
Studded 15000PSI 7 1/16" Casing Spool Drill Spare Parts Studded 15000PSI 7 1/16" Casing Spool Drill Spare Parts Studded 15000PSI 7 1/16" Casing Spool Drill Spare Parts

Large Image :  Studded 15000PSI 7 1/16" Casing Spool Drill Spare Parts

Product Details:

Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API 6A, ISO 9001
Model Number: TRST

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 70000 Pcs Per Month
Detailed Product Description
Nominal Bore: 7 1/16"--29 1/2" Advantage: Short Delivery
Material Level: AA、BB、CC、DD、EE、FF、HH Certificate: API 6A
Pressure: 2000 ~15000psi Material: Alloy Steel
High Light:

Casing Spool Drill Spare Parts

,

7 1/16" Drill Spare Parts

,

15000PSI Drilling Casing Spool

High Pressure 15000PSI Casing Spool for Oilfield Drilling



Product Introduction



Casing spool is the very important equipment used in drilling process, casing spool can control the wellhead pressure. Casing spool are often flange ended on the top of the casing head and connected with the bottom of the tubing head the become a part of the wellhead system of the oil well.



The casing spool has a straight bore bowl with 45°landing shoulder design which avoids damage to sealing areas by drilling tools and prevents test plug and bowl protector wedging problems when pressure is applied. Our Casing spools are normally furnished with threaded outlets and studded outlets and also can be manufactured by request. They can be used for single completions and model of dual completions.



Characterstics of Our Casing/Tubing Drilling Spool



  • Versatile straight-bore design,uses a 45° landing shoulder;
  • 3 different types of outlets: Line pipe, Flanged (Studded) Extended flanged outlets.
  • Allows use of lock screws to retain hanger.
  • Has a additional lock screws for Bowl protecion..
  • Accepts a wide variety of slip and mandrel casing hangers.
  • Multiple bottom sealing type, such as: PE/BG bottom,OO bottom and double "P" seal bottom.



Technical Parameters of Casing/Tubing Drilling Spool

Product Name
Drilling Spool
Working Pressure
2000 ~15000psi
Nominal Bore
7 1/16--29 1/2 or As per customer requirement
Working Medium
oil,natural gas,mud and gas containing H2S,CO2
Working Temperature
-46°C~121°C(Class LU)
Material Class
AA,BB,CC,DD,EE,FF,HH
Specification level
PSL1-4
Specifications
Length(mm)
3 1/8" X 5M To 3 1/8" X 5M
1092
4 1/16" X 5M To 4 1/16" X 5M
275
4 1/16" X 10M To 4 1/16" X 10M
1588
4 1/16" X 15M To 4 1/16" X 15M
614
5 1/8" X 5M To 5 1/8" X 5M
287
7 1/16" X 5M To 7 1/16" X 5M
700
9" X 5M To 9" X 5M
5200
11" X 5M To 11" X 5M
3048
13 5/8" X 3M To 13 5/8" X 3M
3048
13 5/8" X 5M To 13 5/8" X 5M
635
13 5/8" X 10M To 13 5/8" X 10M
650
21 1/4" X 2M To 21 1/4" X 2M
1400
26 3/4" X 3M To 26 3/4" X 3M
2440



Studded 15000PSI 7 1/16" Casing Spool Drill Spare Parts 0



Xi'an Tianrui Petroleum Machinery Equipment Co., Ltd. is an ISO-9001, ISO-14001, OHSAS-18001 certified company and has all the quality systems in place for design, planning,manufacturing and quality monitoring & traceability to ensure that our products match the highest quality & reliability Standards similar to any International major in this field.



We can provide wellhead products, such as oil and gas production wellhead devices, casing heads, ram blowout preventers, annular blowout preventers, rotary blowout preventers, drilling spool, and various gate valves and butterfly valves.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
