340mm Forging Downhole Flat Bottom Oilfield Junk Mill

340mm Forging Downhole Flat Bottom Oilfield Junk Mill
340mm Forging Downhole Flat Bottom Oilfield Junk Mill 340mm Forging Downhole Flat Bottom Oilfield Junk Mill 340mm Forging Downhole Flat Bottom Oilfield Junk Mill

Large Image :  340mm Forging Downhole Flat Bottom Oilfield Junk Mill

Product Details:

Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API & ISO Certificate
Model Number: TRMA

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000 Pcs Per Month
Detailed Product Description
Size: 89-340mm Connection Thread: NC, REG
Certification: API 7-1 Usage: Downhole Drilling
Warranty: One Year Processing Type: Forging
High Light:

Flat Bottom Oilfield Junk Mill

,

Forging Downhole Junk Mill

,

340mm Drill Spare Parts

Flat Bottom Junk Mill Commonly Used Milling Tool for Oilfield

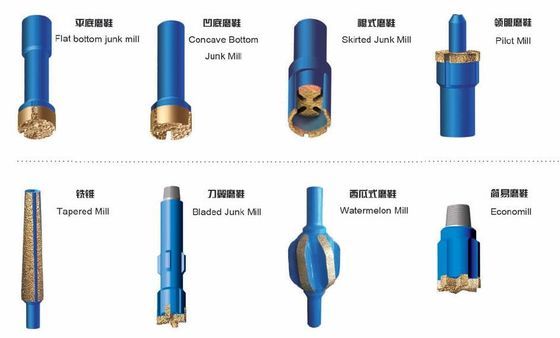

Product Descrption

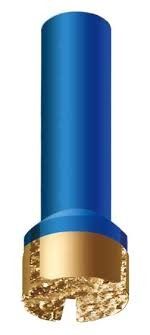

Flat Bottom Junk Mill
The Flat Bottom Junk Mill is the most commonly used milling tool. It is designed to mill a wide variety of junk such as squeeze tools, packers, tubing,bridge plugs and similar objects.

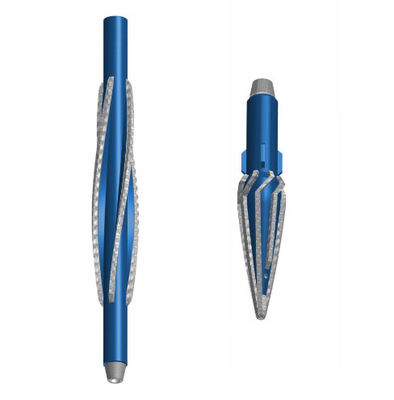

Tapered Mills
The Tapered Mill is designed for milling through various types of downhole obstructions. and reaming out liners and whipstock windows. It works well in collapsed casing as well as tight spots.



Concave Junk Mills
The Concave Mill is designed for milling bit cones and other loose objects. It keeps the fish in a centralized fix location under the mill for greater milling effectiveness.



Technical Parameters of TR Milling Tool Junk Mill



Type OD (mm) Connection(Box) Hole size(mm)
MA89 89 2 3/8 REG 95.2-101.6
MA97 97 NC26 107.9-114.3
MA110 110 NC26 117.5-127.0
MA121 121 NC31 130.0-139.7
MA130 130 NC38 142.9-152.4
MA140 140 NC38 155.6-165.1
MA156 156 NC38 168.0-187.3
MA178 178 NC50 190.5-209.5
MA200 200 NC50 212.7-241.3
MA232 232 NC50 244.5-269.5
MA257 257 6 5/8 REG 273.1-295.3
MA279 279 6 5/8 REG 298.5-317.5
MA295 295 6 5/8 REG 320.6-346.1
MA330 330 6 5/8 REG 349.3-406.4
MA381 381 7 5/8 REG 406.4-444.5



340mm Forging Downhole Flat Bottom Oilfield Junk Mill 0



Xi'an TianRui Petroleum Machinery Equipment Company Limited is one of the exporting windows of China Petroleum Machinery. Our company integrates the R&D, machinery processing and technical service of petroleum machinery products. We aim at providing clients with satisfying products and service to benefit both clients and employees. Being master in petroleum machinery, Supplying high quality products to clients, Being honesty to everyone.


The target of TR Solids Control: To establish an international first-class enterprise, and become a professional petroleum equipment supplier, supply chain company and oilfield engineering services company. "providing the most qualified products, most competitive prices and most professional service for every customer " as its mission and Provide consistent after-sales service.



Packing & Delivery

Packing: Wooden case, or customized packing.
Delivery time: Stock or depending on quantity
Delivery: By truck, train, air, sea



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
