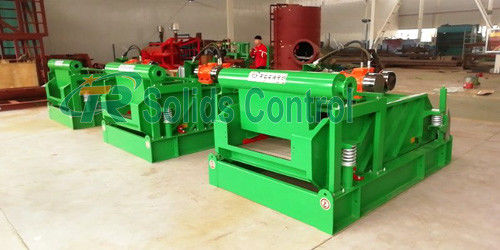

Petroleum Drilling Fluid Linear Motion Shale Shaker

Petroleum Drilling Fluid Linear Motion Shale Shaker
Petroleum Drilling Fluid Linear Motion Shale Shaker
video play

Large Image :  Petroleum Drilling Fluid Linear Motion Shale Shaker

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API certificate, ISO9001 certificate
Model Number: TRZS703
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 15 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 3000 Sets / Month
Detailed Product Description
Capacity: 120m3/h Motor Power: 1.5kw*2
Screen Specs.: (700*1250mm)*4pcs Screen Area: 2.6m2
Vibration Strength: ≤7.1G(Adjustabe) Double Amplitude: 6mm
Adjustment Angle: -1°-+5° Ex Standard: ExdllBt4
Weight: 1620kg Dimension: 2770*1785*1690mm
High Light:

Drilling Fluid Shale Shaker

,

Petroleum Shale Shaker

Petroleum Solid Control System Drilling Fluid Shale Shaker



Product Introduction



Linear motion shale shaker are widely used for drilling mud solids control of oil & gas well drilling. In a complete mud recycling system, shale shaker is the first stage equipment for both solids control and mud cleaning. Shale shaker for solids control are devices that remove drill cuttings from the drilling fluid while circulating and drilling. By using different wire mesh screen, linear motion shaker could maximally remove the drilling cuttings and recover the valuable drilling mud back into the mud system for subsequent treatment. Besides Solids Control, linear motion shale shaker with High G force and large shaker screen area could be used as dryer shaker in drilling waste management project. After treated by Hi G dryer shaker, more drilling mud will be recovered and less volume solid waste discharged.



TRZS Series Linear Motion Shale Shaker is especially effective while drilling top-hole sections where heavy and high-volume solids are usually encountered. In these intervals, shakers may generate powerful G-forces and its effective vibrating motion can quickly remove the dense solids from screens and particles from wells.



Design Advantages of TR Shale Shaker:

  1. Hi-speed conveyance of cuttings.
  2. Higher processing capacity.
  3. Enhances cuttings processing volume.
  4. AWD device is adjustable from -1°~5°.
  5. Shale shaker feeder can be weir feeder or box feeder.
  6. Able to process heavier solids loads.
  7. Single side shale shaker screens tension system to easily change the screens.
  8. G-forces linear motion up to 7.4 G (adjustable depending on the situation).

Technical Parameters of TR Mud Shale Shaker



(Model) TRPS703 TRPS585-4 TRZS703 TRZS585
Vibration Motion Balanced Elliptical Motion Linear Motion
Treatment Capacity 130m³/h 140m³/h 120m³/h 130m³/h
Motor Power 1.94+1.0kw 1.94+1.0kw 1.5KW×2 1.72KW×2
Screen Specs. (700×1250mm)×3 (585×1165mm)×4 (700×1250mm)×3 (585×1165mm)×4
Screen Area 2.6m² 2.7m² 2.6m² 2.7m²
Vibration Strength ≤7.1G ≤7.1G ≤7.1G ≤7.1G
Double Amplitude 7mm 7mm 6mm 6mm
Deck Adjustment -1°~+5° -1°~+5° -1°~+5° -1°~+5°
Ex Standard ExdIIBt4 / IECEX / A-TEX
Weight 1630kg 1618kg 1620kg 1600kg
Dimension 2770×1785×1690mm 2966×1600×1280mm 2770×1785×1690mm 2966×1600×1280mm
Remark

Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3.



Petroleum Drilling Fluid Linear Motion Shale Shaker 0



Our scope of business covers solid-liquid separation industries, such as petroleum drilling solid control system, trenchless mud purification system, gas coal seam exploration mud purification system, shield mud purification system, desilting purification system, pilework solid-liquid separation, environmental protection industry, etc. Company produces and deals in mud purification system, drilling fluid vibrating screen, mud cleaner, desander, desilter, vacuum degasser, centrifuge, shear pump, sand pump, gas-liquid separator, electronic ignition device, mud mixer, jet mud mixer, mud gun, mud tank, submerged slurry pump, solid control equipment accessories, etc.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
