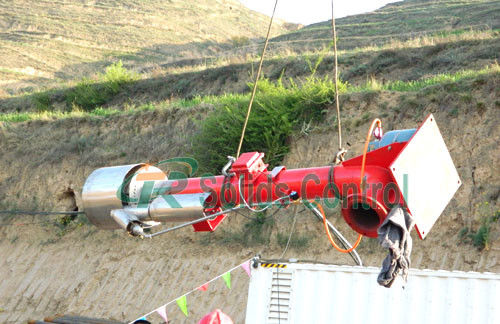

Stainless Steel 304 Drilling Rig API Flare Ignition Device

API Drilling Rig Equipment Ignition Flare Device

Main Introduction

Flare ignition device is one equipment to burn H2S gas separated out of drilling fluid. It is connected with poor boy degasser by vent line and flare line. When burning the gas out the gas will become common subject without poison or other harmful issues.This Flare ignition device provides safe drilling condition and good environment. So we call flame igniter is environment friendly equipment.

It is used together with drilling fluid gas separator and is widely used in oil drilling engineering. The lower part of the anti-tempering device is equipped with a drainage valve to prevent the backfilling of rainwater from affecting the use. The cable is protected by steel tubes to prevent the high temperature from burning out.

TRYPD flare ignition device is combined with ignition torch, control box and portable ignition control box. The two boxes are connected by a 50m armored cable, of which the control box is used fixedly. When igniting, we need to connect the cables to the two boxes respectively. Portable ignition control box should be used in a safe environment, it plays a role in the ignition of control box.

Main Benefits of TR Flare Ignition Device

1. Electrical components are imported components.
2. Matching with solar panel to achieve the purpose of energy saving.
3. High ignition frequency and speed.
4. Top part design is rain-proof with material stainless steel 304.
5. AC and DC ignition are switchable, in case low battery to unable ignition.
6. Manual ignition can be used with remote electronic ignition. Effective distance is100m to 150m.

Technical Information of TR Oilfield Flare Ignition Device

TR Solids Control offers drilling rig and travelling system products for big oil fields over a long period of time. The company is 1st-class unit of China National Petroleum (Group) Equipment Corporation and Supplies and Assemblies Company of China Petroleum Corporation. Insisting on the development and innovation path with scientific progress as the core, company has been constanly absorbing advanced technology to quicken new product development. This company has established close technical cooperation relation with the oil field research institutes, designing institutes and various engineering technical departments throughout the country. For many years,we have achieved many scientific and thchnological achievements based on independent intellectual properties, filling up many blank both abroad and home.

Packing & Shipping
Packaging Details: International Sea Transportation Packing ,Standard export packaging.
Delivery Time: Based on order quantity, normally it takes 30 days for production, Only 3 or 10 days if we have stock on your request size.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
