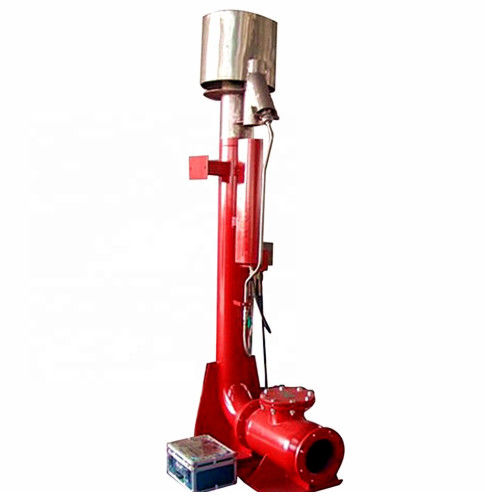

Oilfield Solids Control Flare Ignitor Device with High Efficiency

Oilfield Solids Control Flare Ignitor Device with High Efficiency
Oilfield Solids Control Flare Ignitor Device with High Efficiency
video play

Large Image :  Oilfield Solids Control Flare Ignitor Device with High Efficiency

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certified
Model Number: TRYPD-20/3T
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case or pallet
Delivery Time: 20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 200 Sets / Month
Detailed Product Description
Diameter Of Main Body: DN200 Charging Voltage: 12V/220V
Ignition Media: Natural Gas(LPG) Ignition Voltage: 16kv
Weight: 590kg Dimension: 1610×650×3000mm

Oilfield Solids Control Flare Ignitor Device with High Efficiency



Product Description



YPD20/3 type combustion device is the device which empties the exhaust gas of the mud gas separator. It is a kind of safe and environment-friendly equipment, which can ignite and burn the vented combustible harmful gas to eliminate its harm to the environment and safety.

It is used together with drilling fluid gas separator and is widely used in oil drilling engineering. The lower part of the anti-tempering device is equipped with a drainage valve to prevent the backfilling of rainwater from affecting the use. The cable is protected by steel tubes to prevent the high temperature from burning out



TRYPD series flare ignition device designed and manufactured by TR Solids Control has good performance, and received many good comments from our clients. As a kind of safe and environmentally friendly equipment, it can ignite and burn vented harmful flammable gases to eliminate their hazards to environment and safety.



Characterstics of TRYPD Series Flare Ignition Device

  1. Manual ignition can be used with remote electronic ignition.
  2. Electrical components are imported components.
  3. Top part design is rain-proof with material stainless steel 304.
  4. High ignition frequency and speed.
  5. Matching with solar panel to achieve the purpose of energy saving.
  6. AC and DC ignition are switchable, in case low battery to unable ignition.

Technical Specifications of TR Flare Ignition Device



Model TRYPD-20/3 TRYPD-20/3T
Diameter of Main Body DN200
Charging Voltage 12V/220V
Ignition Media Natural gas/LPG
Ignition Voltage 16kv 16kv
Charge Mode AC Solar and AC
Weight 520kg 590kg
Dimension 1610×650×3000mm 1610×650×3000mm



Oilfield Solids Control Flare Ignitor Device with High Efficiency 0



Transportation
During the transportation of electronic ignition device, the electronic ignition device and check valve should be disassembled and placed flat in the packing box. And lay the electronic ignition device flat and fixed in the packaging box, so as to avoid damage to the electronic ignition device and scratches on the outside in the process of transportation.



TR Solids Control is making great efforts in technology innovation,market innovation and management innovation to constantly enhance the comprehensive strength of company,in order to build it as one of the national R&D and production bases for petroleum tools. In addition, we will endeavor to provide better products and more excellent services and improve the strength of enterprise, so as to make greater contribution to the global petroleum tool induatry.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
