Anti Corrosion Bottom Sealing Well API Mud Gas Separator

China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
China Xi'an TianRui Petroleum Machinery Equipment Co., Ltd. certification
Professional solids control manufacturer. The Derrick replacement shaker screens have long service time and good treatment. They help us a lot!

—— Mr. Samir

I purchased 10 pcs TRSB8*6-12J centrifugal pump from TR Solids Control. They are good-looking and really have good quality and considerate after sales service!

—— Mr. Warren

We ordered a set of mud system for our oilfield drilling field, TR product showed good performance in the site. We like that very much!

—— Diego Olbrich

TR shaker screens have top quality and good price. We have been purchasing them from TR for more than 4 years.

—— Nghiem Thic Hai

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Hossein Jafari

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Ms. Crina

We start use TRZS703 Shale Shaker since 2012, now we have 8 sets working in our customer's oilfield site, perfect machine with reasonable price.

—— S. A. Kazi

I'm Online Chat Now

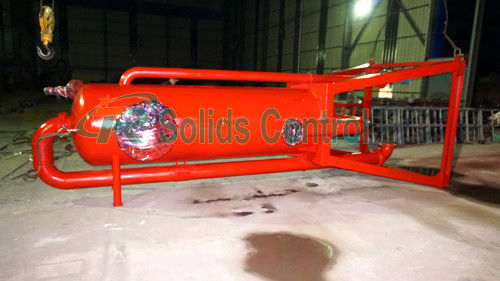

Anti Corrosion Bottom Sealing Well API Mud Gas Separator

Anti Corrosion Bottom Sealing Well API Mud Gas Separator
Anti Corrosion Bottom Sealing Well API Mud Gas Separator
video play

Large Image :  Anti Corrosion Bottom Sealing Well API Mud Gas Separator

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API Certificate, ISO Certificate
Model Number: TRZYQ1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: 20 days after receiving deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 300 Sets/Month
Detailed Product Description
Capacity: 320m3/h Main Body Diameter: 1200mm
Inlet Pipe: DN125mm Output Pipe: DN250mm
Gas Discharge Pipe: DN200mm Weight: 2600kg
Dimension: 2200*2200*6634mm Application: Oil & Gas Drilling, HDD
High Light:

API Mud Gas Separator

,

oilfield Mud Gas Separator

API Well Fluid Solid Control Large Capacity Mud Gas Separator


Product Introduction



Mud/Gas Separator serves as an ideal device if well blowout or kick is encountered or if operators apply under-balanced mud column in drilling processes. TR Mud/Gas Separator is primarily used to remove the enormous free gas from drilling fluids, including poisonous gases like H2S. Field data shows it is a fairly reliable and vital safety equipment.



Drilling fluid with gas goes into the separator and drops along the inner wall. With collision to increase the contact area, it flows downward and becomes a turbulent state which makes gas separate from mud. The free gas goes through the top of vessel and is discharged from the gas outlet. The length of gas output pipe can be determined at the spot. The drilling fluid without gas flows into the following solids control equipment.


Key Characterstics of TRZYQ Mud Gas Separator



1. Anti-corrosion epoxy coating to ensure long service life.
2. Mainly used to clear away big bubbles of Φ3-Φ25mm.
3. Reducing hazardous gas threat: separated free gas is discharged by vent lines to a safe place for combustion.
4. Separated free gas from drilling fluids, including toxic gases such as hydrogen sulfide.
5. Adopting bottom-sealing structure.
6. Skid-Mounted.
7. Simple structure,large disposal capacity,high degassing efficiency,convenient transportation/installation.​



Technical Specifications of TRZYQ Mud Gas Separator


Model TRZYQ800 TRZYQ1000 TRZYQ1200
Capacity 180 m³/h 240 m³/h 320 m³/h
Main Body Diameter 800mm 1000mm 1200mm
Inlet Pipe DN100mm DN125mm DN125mm
Output Pipe DN150mm DN200mm DN250mm
Gas Discharge Pipe DN200mm DN200mm DN200mm
Weight 1750kg 2235kg 2600kg
Dimension 1900*1900*5700mm 2000*2000*5860mm 2200*2200*6634mm


Anti Corrosion Bottom Sealing Well API Mud Gas Separator 0



Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional supplier of various oilfield equipment, including solid control equipment, oil drilling and service equipment, oil production equipment, OCTG, wellhead & downhole tools and spare parts. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). We have become VIP (assigned) supplier and built strategic partnership with some countries' national petroleum companies.



Our principle is to offer high quality products at competitive price to benefit our customers and the industry in the long run. Our products enjoy high reputation at home and abroad. We have successfully established a stable and increased market share and we are constantly making efforts to actively expand our sales network.


Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
