10000 PSI Annular BOP Oilfield Drill Spare Parts

10000 PSI Annular BOP Oilfield Drill Spare Parts
10000 PSI Annular BOP Oilfield Drill Spare Parts 10000 PSI Annular BOP Oilfield Drill Spare Parts

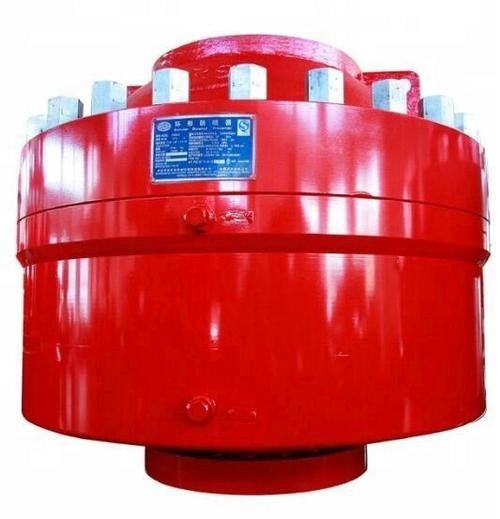

Large Image :  10000 PSI Annular BOP Oilfield Drill Spare Parts

Product Details:

Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API & ISO Certificate
Model Number: TRFPQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 20 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 Pcs Per Month
Detailed Product Description
Size: 7-1/16"-30" Pressure: 500psi To 20000psi
Temperature: T75/T20/T0 Model: Annular,single,double
Processing Type: Forging, Casting Material: Carbon Steel
Certification: API, ISO Usage: Well Control System
High Light:

Oilfield Drill Spare Parts

,

Annular BOP Drill Spare Parts

High Performance 10000 PSI Annular BOP for Oilfield Operation



Product Overview



The blowout preventer(BOP) is an essential pressure control device during driling and operations, as it serves to prevent the uncontrolled leakage of oil/gas from the wells. Our company can also produce annular BOP, single ram BOP and double ram BOP. The BOP rams are manifold, including: blind ram, pipe ram, shear ram and variable diameter ram.



BOP is a large valve used to control wellbore fluids. In this type of valve, the sealing element resembles a large rubber doughnut that is mechanically squeezed inward to seal on either pipe (drill collar, drillpipe, casing, or tubing) or the openhole. The ability to seal on a variety of pipe sizes is one advantage the annular blowout preventer has over the ram blowout preventer. Most blowout preventer stacks contain at least one annular BOP at the top of the BOP stack and one or more ram-type preventers below.



Main Features of Our Annular BOP:



1. Used in conjunction whit hydraulic control system,the annular BOP seals off the annulus of different sizes when pipes are in use in the hole.
2. Upper housing and the body have two connection forms as connection by bolts and connection by claw chuck.
3. Annular BOP with tapered rubber is composed of seven parts as upper housing,wear plate,body,piston,tapered rubber,anti-dust ring and supporting cylinder.
4. The dynamic seal of annular BOP adopts the sealing ring of lip structure,which reduces the wearing of sealing ring to the maximum,and the sealing is reliable;the rubber is not easy to fold back,and there is the effect of funnel;and the well pressure has the function of assisting sealing,etc.
5. Seal element molded with two different styles of inserts to reduce closing volume and increase closing cycles.
6. Replacement wear place that eliminates metal contact between the seal element inserts and the BOP head.
7. A piston design that provides complete balance more reliable operation and ease of assembly.
8. A latched head for fast, easy access to the seal element and wear seals.
9. An opening chamber head hat prevents debris from falling into the chambers when replacing the seal element.
10. Inner sleeve is bolted to the body that eliminates the difficulties in repair, and it is field replaceable.



Technical Specifications of Our Annular BOP



Specifications and technical parameters of Annular Bop (Model A)
Model Bore(mm) Working pressure(Mpa/psi) Close volume(L) Open volume(L) Weight(kg)for reference
FHZ18-70 179.4 70/10000 36 27 6293
FHZ28-70 279.4 70/10000 67 66 12290
FHZ35-70 346.1 70/10000 116 117 15190
FHZ43-35 425.4 35/5000 134 134 14100
FHZ54-14 539.7 14/2000 95.3 94.5 7660
Specifications and technical parameters of Annular Bop (Model D)
biede Bore(mm) Working pressure(Mpa/psi) Close volume(L) Open volume(L) Weight(kg)for reference
FH18-21 179.4 21/3000 21 15 1433
FH18-35 35/5000 21 15 1520
FH23-21 228.6 21/3000 34 22.8 2398
FH23-35 35/5000 42 33 2986
FH28-21 279.4 21/3000 50 39 2950
FH28-35 35/5000 6 72 4675
FH35-21 346.1 21/3000 94 69 5738
FH35-35 35/5000 94 69 6415
FH48-35 425.3 35/5000 220 171 16000
FH53-21 427 21/3000 173 110 6994
FH54-35 539.7 35/5000 241 181 20230



10000 PSI Annular BOP Oilfield Drill Spare Parts 0



TR Solids Control is a professional supplier of various oilfield equipment, including oil drilling and service equipment, oil production equipment, OCTG, wellhead & downhole tools and spare parts.



TR Solids Control had explored the international market and enlarged international cooperation 10 years. Due to the competitive price, good quality and excellent service, our products are sold to America,Canada,Brazil,Columbia, Venezuela,India,Iran,UAE,Russia ,Kazakhastan,Italy,Hungary ,Australia,Syria,Egypt ,etc .and get good reputation from our overseaclients .



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
