API Standard Cementing Tool Casing Drill Spare Parts

API Standard Cementing Tool Casing Drill Spare Parts
API Standard Cementing Tool Casing Drill Spare Parts API Standard Cementing Tool Casing Drill Spare Parts API Standard Cementing Tool Casing Drill Spare Parts

Large Image :  API Standard Cementing Tool Casing Drill Spare Parts

Product Details:

Place of Origin: Xi'an China
Brand Name: TR Solids Control
Certification: API & ISO Certificate
Model Number: TRFG/TRFX

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 10 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000000 Pcs Per Month
Detailed Product Description
Size: 4 1/2"-30" Connection Thread: BTC,LTC,STC, Premium Connnection
Steel Grade: J55,K55,L80,N80,T95,C90,P110 Material: Carbon Steel, Steel & Aluminum
Classification: Aluminium Alloy Or Cement Max. OD: 365 270 195 189 Mm
Float Shoe Length: 515 500 416mm Float Collar Length: 350 370 320 Mm
High Light:

Casing Drill Spare Parts

,

Cementing Drill Spare Parts

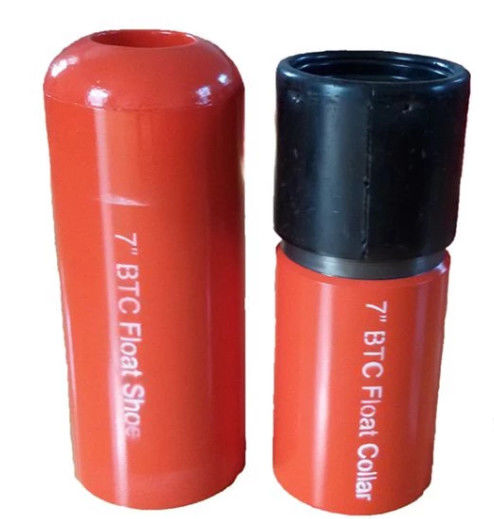

API Standard Cementing Tool Casing Float Collar and Float Shoe for Oilfield



Product Description



Float collars are placed one to three joints above the guide shoe or float shoe. They provide a seat for the cement plugs, the bottom plug pumped ahead of the cement and the top plug behind the full volume of slurry. Once seated, the top plug shuts off fluid flow and prevents over-displacement of the cement. The space between the float shoe and the float collar provides a containment area to entrap the likely-contaminated fluids from the wiping action of the top cementing plug, securing the contaminated fluid away from the shoe where a strong cement bond is of primary importance. Float collars include a backpressure valve and serve basically the same function as the float shoe.



API Standard Cementing Tool Casing Drill Spare Parts 0



Main Characterstics of Our Float Collar & Float Shoe:

  1. API spec.Q1 and ISO9000 certification.
  2. All inner parts are made of easily drillable aluminum alloy.
  3. Reliable back-pressure leak proof structure, enable grout or slurry flow with less resistance.
  4. Valve seat and valve disk can effectively prevent grout from flowing back.
  5. The device can be connected directly to same type casing.
  6. Hardness of base material is equivalent to API Spec N-80.

Technical Parameters of Casing Float Collar & Float Shoe



Specification(in) O.D.(mm) Total length(mm) I.D.(mm) Min.Dia.(mm) Conn Type Affordable strength of back-pressure(Mpa)
Float Collar 5 141.30 500 110 50 5 BCSG 35
5 1/2 153.67 530 112 55 5 1/2BCSG 35
7 194.46 586 162.5 77 7 BCSG 35
9 5/8 270 720 225 77 9 5/8 BCSG 35
13 3/8 365 720 319 77 133/8 BCSG 35
20 533.4 720 475 77 20 BCSG 35
Float Shoe 5 140.30 495 110 50 5 BCSG 35
5 1/2 153.67 514 122 55 5 1/2 BCSG 35
7 194.46 533 162.5 77 7 BCSG 35
9 5/8 269.88 550 225 77 9 5/8 BCSG 35
13 3/8 339.7 550 319 77 133/8 BCSG 35
20 534 652 475 77 20 BCSG 35



API Standard Cementing Tool Casing Drill Spare Parts 1



We are specialized in oilfield equipment and accessories including casing centralizers, float equipment, stage collars, cementing plugs, cementing heads, cement baskets, casing & tubing pipes, sucker rods, drill pipes, drill collars, pumping units, etc.


Packing: Wooden case, or customized packing.
Delivery time: Stock or depending on quantity
Delivery: By truck, train, air, sea



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet


Customer's satisfaction is the highest pursuit of TR Solids Control.
