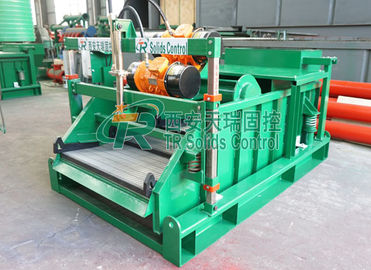

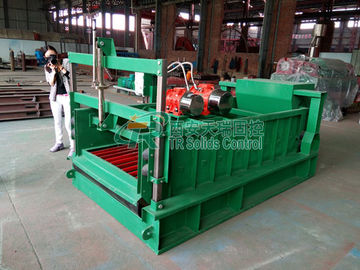

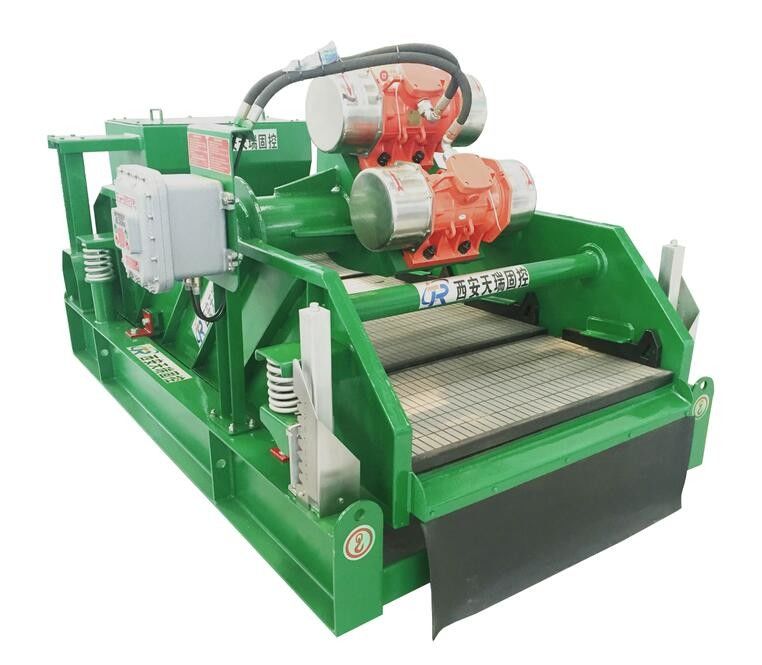

Adjustable Linear Motion Shale Shaker Vibration Strength Mud Shaker Compact Structure

Adjustable Linear Motion Shale Shaker Vibration Strength Mud Shaker Compact Structure
Adjustable Linear Motion Shale Shaker Vibration Strength Mud Shaker Compact Structure
video play

Large Image :  Adjustable Linear Motion Shale Shaker Vibration Strength Mud Shaker Compact Structure

Product Details:
Place of Origin: Xi'an,China
Brand Name: TR Solids Control
Certification: API certificate, ISO9001 certificate
Model Number: TRZS703
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 10 days after deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 30 Sets / Month
Detailed Product Description
Capacity: 120m3/h Motor Power: 1.5kw*2
Screen Specs.: (700*1250mm)*4pcs Screen Area: 2.6m2
Vibration Strength: ≤7.1G(Adjustabe) Double Amplitude: 6mm
Adjustment Angle: -1°-+5° Ex Standard: ExdllBt4
Weight: 1620kg Dimension: 2770*1785*1690mm
High Light:

mud shaker

,

drilling fluid equipment

Adjustable Linear Motion Shale Shaker Vibration Strength Mud Shaker Compact Structure



Product Introduction



Mud shale shaker is used for separating drilling cuttings for first phase cleaning in a whole solids control system. TR Solids Control focus on designing and manufacturing mud shakers. Shale shakers are components of drilling equipment used in many industries, such as oil and gas drilling, horizontal directional drilling (HDD), coal cleaning(CBM), mining, etc.



TR Solids Control can design both double shakers and triplicate shale shaker according to users’ special demands. We also supply relevant connecting manifold. Meanwhile, our shaker can be used as underflow vibrating screen of mud cleaner. TR mud shale shaker has advantages of high vibration intensity, large screening area, adjustable screen angle, compact structure, high performance and cost-effective.



Main features of our mud shale shaker

  1. Schneider or Siemens electrical components.​
  2. Hopper type feed mode reduces feed speed.
  3. Martin or OLI vibration motor.
  4. Screen box angle is mechanical and adjustable.
  5. Vibration strength is 7.5G, adjustable.
  6. Wedge-type compaction device facilitates fast replacement of screen.
  7. Overall heat treatment, long time work.

Technical Parameters of TR Shale Shaker



(Model) TRPS703 TRPS585-4 TRZS703 TRZS585
Vibration Motion Balanced Elliptical Motion Linear Motion
Treatment Capacity 130m³/h 140m³/h 120m³/h 130m³/h
Motor Power 1.94+1.0kw 1.94+1.0kw 1.5KW×2 1.72KW×2
Screen Specs. (700×1250mm)×3 (585×1165mm)×4 (700×1250mm)×3 (585×1165mm)×4
Screen Area 2.6m² 2.7m² 2.6m² 2.7m²
Vibration Strength ≤7.1G ≤7.1G ≤7.1G ≤7.1G
Double Amplitude 7mm 7mm 6mm 6mm
Deck Adjustment -1°~+5° -1°~+5° -1°~+5° -1°~+5°
Ex Standard ExdIIBt4 / IECEX / A-TEX
Weight 1630kg 1618kg 1620kg 1600kg
Dimension 2770×1785×1690mm 2966×1600×1280mm 2770×1785×1690mm 2966×1600×1280mm
Remark

Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3.



Adjustable Linear Motion Shale Shaker Vibration Strength Mud Shaker Compact Structure 0



Product Application



TRZS585 shale shaker is widely used in oil & gas drilling, Drilling Waste Management, trenchless HDD, city bored piling, tunneling construction, Coal Bed Gas Solids Control System, micro-tunneling, environment protection, Oil Mud Seperation, mining, Oil Sludge Dewatering Systems, Water Drilling etc.



Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
