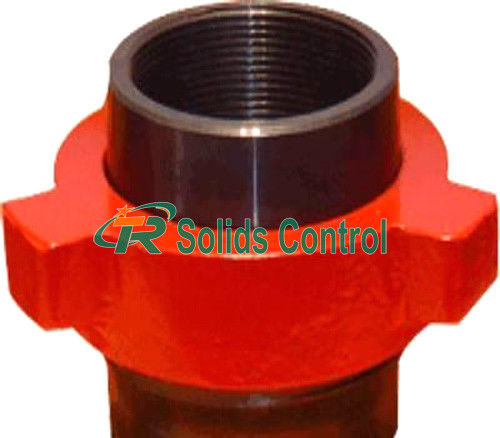

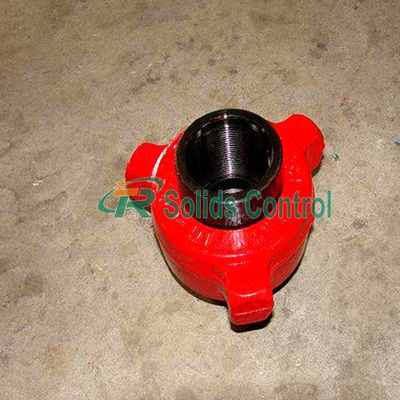

Oilfield Equipment API Certificate High Quality Professional Hammer Union
Main Introduction
Hammer Unions are designed to enjoin mud tanks instantly without having to deal with the flange connections at all. If the mud tanks are not aligned in the right kind of way necessary hammer unions can still be used in order to make absolutely non-leak seals that are tightened. They generally have three parts, a male, a female, and a nut.
The male part is an external threaded portion that is welded on the end of a pipe already connected to a tank wall.
The pipe continues further through the nuts towards the O-ring in order to enter into the female part.
They are then hammered and tightened together.
Hammer adjustments are the most necessary parts. Unions have a locked up O-ring that is squeezed together into the "D" square cross section area thereby sealing the fluid pressures up to 150 psi in opposition to the external diameter of the connecting pipe in the hammer unions.
Why Choose TR Hammer Union?
Technical Specifications of Our Hammer Union
|
Type |
Connect Pipe O.D. |
Female Sub * Weld to |
Mud Tank Union Dimensions in mm |
|||||||
A |
B |
C |
D |
E |
F |
G |
H |
|||
| 4-inch | 4 ½"(114.3mm) | 6" | 264 | 168 | 150 | 127 | 50 | 155 | 114 | 21 |
| 6-inch | 6 5/8"(168.3mm) | 8" | 340 | 219 | 200 | 127 | 50 | 208 | 168 | 21 |
| 8-inch | 8 5/8"(219.1mm) | 10" | 343 | 273 | 253 | 127 | 50 | 258 | 219 | 21 |
| 10-inch | 10 3/4" (273.1mm) | 12" | 432 | 325 | 305 | 127 | 50 | 311 | 273 | 21 |
| 12-inch | 12 3/4"(323.9mm) | 14" | 491 | 355 | 336 | 127 | 50 | 364 | 324 | 21 |
| 14-inch | 14" (355.6mm) | 16" | 557 | 406.4 | 381 | 127 | 50.8 | 395 | 356 | 21 |
| 16-inch* | 16"(406.4mm) | 18" | / | / | / | / | / | / | / | / |
| 18-inch* | 18"(457mm) | 20" | / | / | / | / | / | / | / | / |
| 20-inch* | 20"(508mm) | 22" | / | / | / | / | / | |||
Materials:
Unions are all steel constructed including precisely manufactured ball-cone (male-to-female) seats. High pressure unions are made from forged alloy steel. Parts are fully interchangeable with most other major brands.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
Contact Person: Ms. Sunny Lee
Tel: +86 13186019379
Fax: 86-29-8633-2919
