|Cyclone Qty:||12nos||Working Pressure:||0.25-0.4Mpa|
|Inlet Size:||DN150mm||Outlet Size:||DN200mm|
|Specification Point:||15μm-44μm||Bottom Shaker:||TRZS752|
Drill Hydrocyclone Drilling Mud Slurry Water Sand Separation Cyclone Desilter
As a solids control equipment of the third stage in drilling operation, mud desilter is used to remove solid particles of 20-40 μm in drilling liquid. The desilter of this type that has been reformed many times on the applications for years is reliable in technical performance and provides very good treatment results. Its water cyclone is of long service life and stable performance. It is applicable to various kinds of drills in the oilfields.
The basic principle of our hydro cyclone is to separate the two-phase or multi-phase mixture of liquid-liquid, liquid-solid, liquid-gas and so on with a certain density under the action of centrifugal force. The mixed liquid is tangentially flowed into the cyclone with a certain pressure, and a high-speed rotating flow field is generated in the cylindrical cavity. The high density components in the mixture under the action of the swirling flow at the same time along the axial downward movement along the radial outward movement in the reach of the force down along the wall along the wall, and from the bottom outlet, thus forming.
Mechanics & Working Principle of TR Desilter

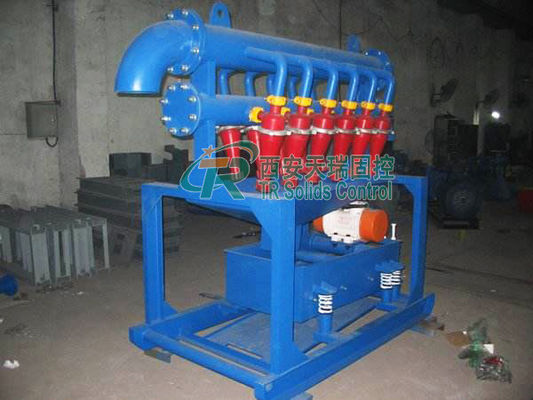

TRCN100×12 desilter cleaner are completed with 100mm polyurethane hydrocyclones, mud trough, manifold, motor, shale shaker, base and all necessary connections.The upper part of hydrocyclone is cylindrical with a tangential suction tube and a overflow tube in center. The lower part of hydrocyclone is cone with bottom silt discharge tube. The upper part and lower part are connected by hoop.
Main Features of TRCN series Mud Desilter:
Technical Parameters of TR Mud Desilter
|Cyclone Qty||4 pcs||6pcs/8pcs||12pcs/16pcs||20pcs|
|Separation Point||15μm -44μm|
|Remark||All desilter could be customized without bottom shaker.|
Drilling mud desilter is currently used in tunneling construction, oil & gas drilling, trenchless HDD, city bored piling, Drilling Waste Management, environment protection, micro-tunneling, mining, Coal Bed Gas Solids Control System, Oil Sludge Dewatering Systems, Oil Mud Seperation, Water Drilling etc. If you have inquiry of mud desilter, we welcome your consulting!
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Customer's satisfaction is the highest pursuit of TR Solids Control.
