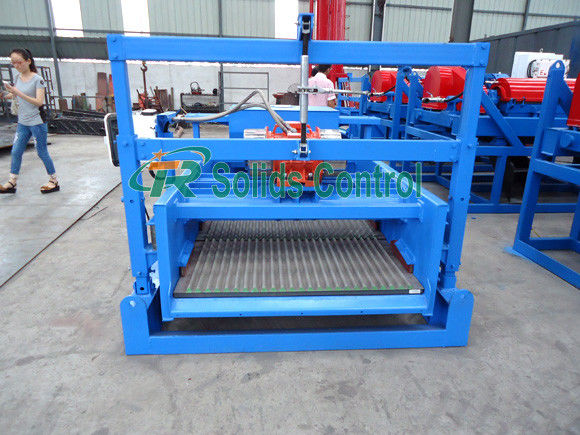

Capacity 130m3/H Linear Motion Shale Shaker Mud Solid Control Equipment

Capacity 130m3/H Linear Motion Shale Shaker Mud Solid Control Equipment
Capacity 130m3/H Linear Motion Shale Shaker Mud Solid Control Equipment Capacity 130m3/H Linear Motion Shale Shaker Mud Solid Control Equipment Capacity 130m3/H Linear Motion Shale Shaker Mud Solid Control Equipment

Large Image :  Capacity 130m3/H Linear Motion Shale Shaker Mud Solid Control Equipment

Product Details:
Place of Origin: Xi'an, China
Brand Name: TR Solids Control
Certification: API certificate, ISO9001 certificate
Model Number: TRPS584
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Pallet or wooden case
Delivery Time: Within 10 days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100 Sets / Month
Detailed Product Description
Capacity: 130m3/h Motor Power: 1.72kw*2
Screen Area: 2.7m2 Double Amplitude: 6mm
Ex Standard: ExdllBt4 Vibration Motion: Linear Motion
Screen Specs.: (585*1165mm)*4pcs Vibration Strength: ≤7.1G(Adjustabe)
Adjustment Angle: -1°-+5° Weight: 1600kg
High Light:

mud shaker

,

drilling fluid equipment

Capacity 130m3/H Linear Motion Shale Shaker Mud Solid Control Equipment



Main Introduction



Mud shale shaker for solids control are devices that remove drill cuttings from the drilling fluid while circulating and drilling. There are many different designs and research into the best design is constantly ongoing since solids control is vital in keeping down costs associated with the drilling fluid. The basic design consists of large, flat sheets of wire mesh screens or sieves of various mesh sizes that shakes or vibrates the drill cuttings, commonly shale shaker, across and off of the screens as the drilling fluid flows through them and back into the drilling fluids processing system, often called a mud system. This separates the drill cuttings, often called solids, from the drilling fluid so that it can be re-circulated back down the well bore. In oilfield industry, linear motion shale shaker are widely used for drilling mud solids control of oil gas well drilling for rig.



Our shale shaker is first phase solids control equipment in drilling fluids processing system, also known as key solids control equipment in drilling mud system Usually shale shaker decides performance of the whole solids control system. TR Solids Control can design double shakers and triplicate shakerson single skid according to clients special requirements and also supply relevant connecting manifold, according to current industry situation. We mainly provide both third generation linear motion shale shaker and fourth generation balanced elliptical shale shaker.



Charateristics of our shale shaker

  1. Martin or OLI vibration motor.
  2. Overall heat treatment, long time work.
  3. Vibration strength is 7.5G, adjustable.
  4. Schneider or Siemens electrical components.
  5. Hopper type feed mode reduces feed speed.
  6. Screen box angle is mechanical and adjustable.
  7. Wedge-type compaction device facilitates fast replacement of screen.

Technical Specifications of TR Shale Shaker



Model TRPS703 TRPS585-4 TRZS703 TRZS585
Vibration Motion Balanced Elliptical Motion Linear Motion
Treatment Capacity 130m³/h 140m³/h 120m³/h 130m³/h
Motor Power 1.94+1.0kw 1.94+1.0kw 1.5KW×2 1.72KW×2
Screen Specs. (700×1250mm)×3 (585×1165mm)×4 (700×1250mm)×3 (585×1165mm)×4
Screen Area 2.6m² 2.7m² 2.6m² 2.7m²
Vibration Strength ≤7.1G ≤7.1G ≤7.1G ≤7.1G
Double Amplitude 7mm 7mm 6mm 6mm
Deck Adjustment -1°~+5° -1°~+5° -1°~+5° -1°~+5°
Ex Standard ExdIIBt4 / IECEX / A-TEX
Weight 1630kg 1618kg 1620kg 1600kg
Dimension 2770×1785×1690mm 2966×1600×1280mm 2770×1785×1690mm 2966×1600×1280mm
Remark Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3.



Capacity 130m3/H Linear Motion Shale Shaker Mud Solid Control Equipment 0



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet


Customer's satisfaction is the highest pursuit of TR Solids Control.
